2015 Chevrolet Spark LS, Standard TransFACTORY OEM SERVICE PROCEDURE

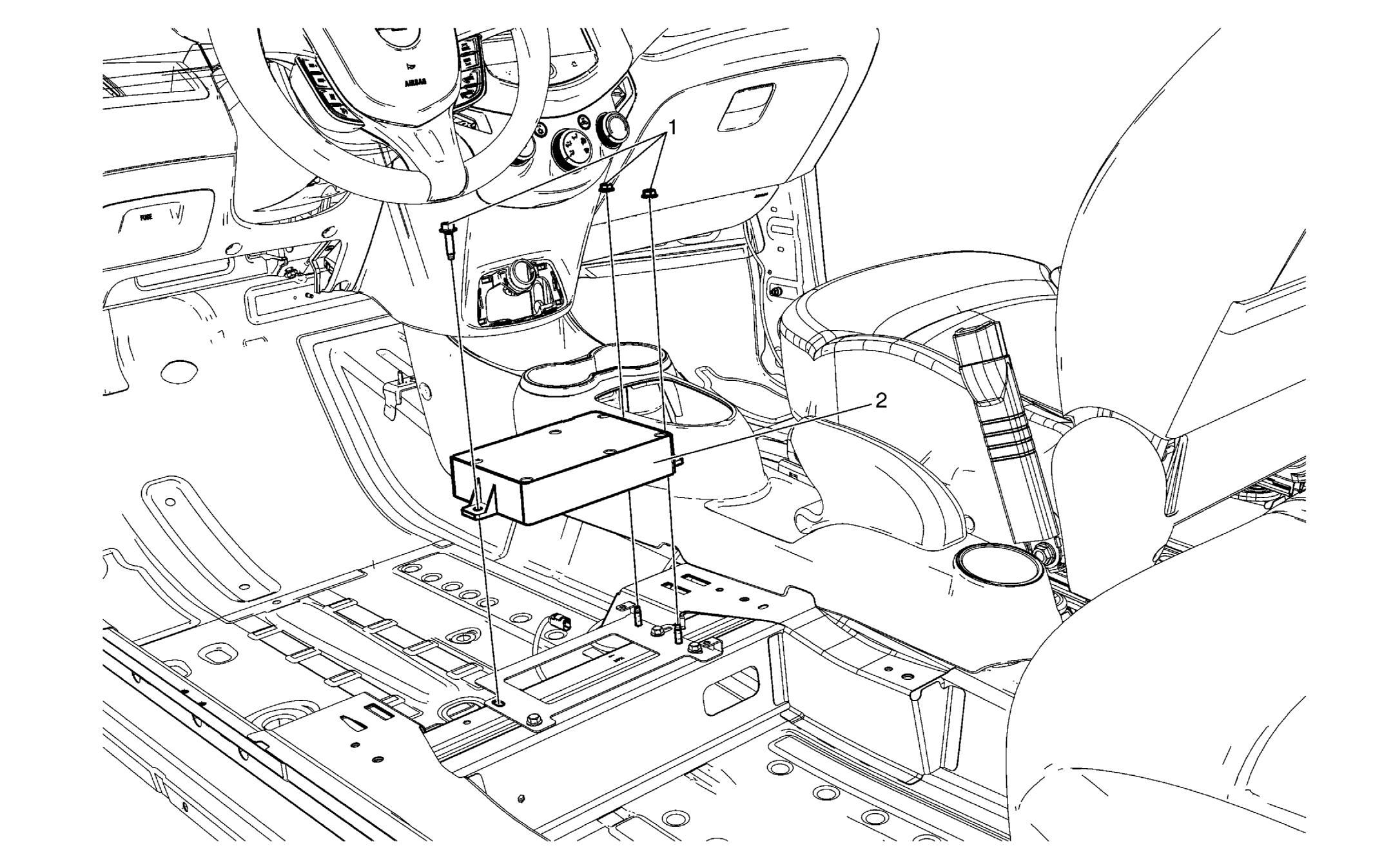

Communication Interface Module Replacement
| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Battery Disconnect Warning
.
Preliminary Procedures
|
|
| 1 | Communication Interface Module Fastener (Qty: 3)
CAUTION:
Refer to Fastener Caution
. Tighten 10 N.m (89 lb in) |
| 2 | Communication Interface Module Procedure Disconnect the electrical connector. |
