2015 Chevrolet Cruze Eco, Automatic TransFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
- Remove front bumper fascia. Refer to Front Bumper Fascia Replacement .

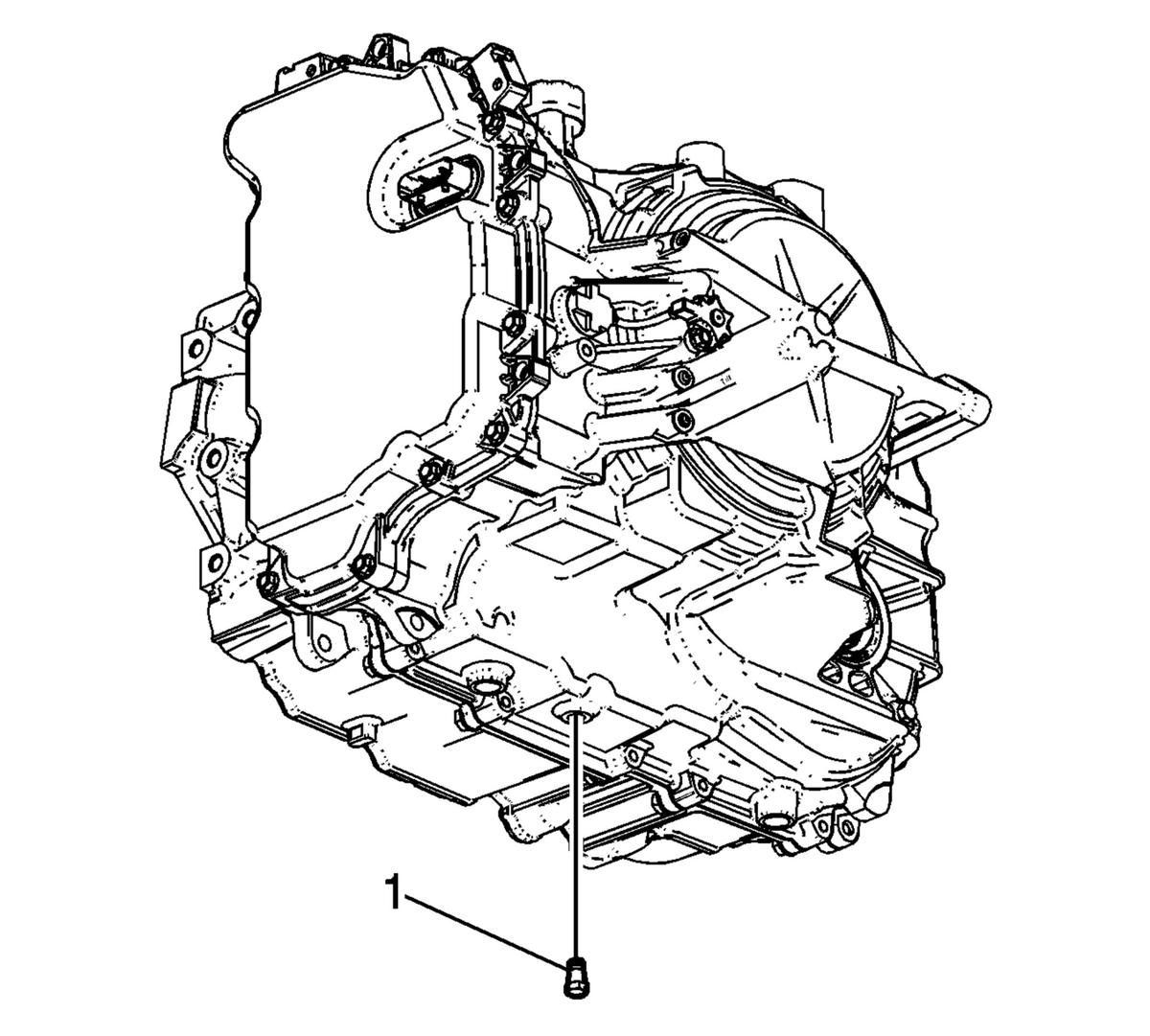

- Remove the fluid level drain plug (1).
- Drain transmission fluid into a suitable container.

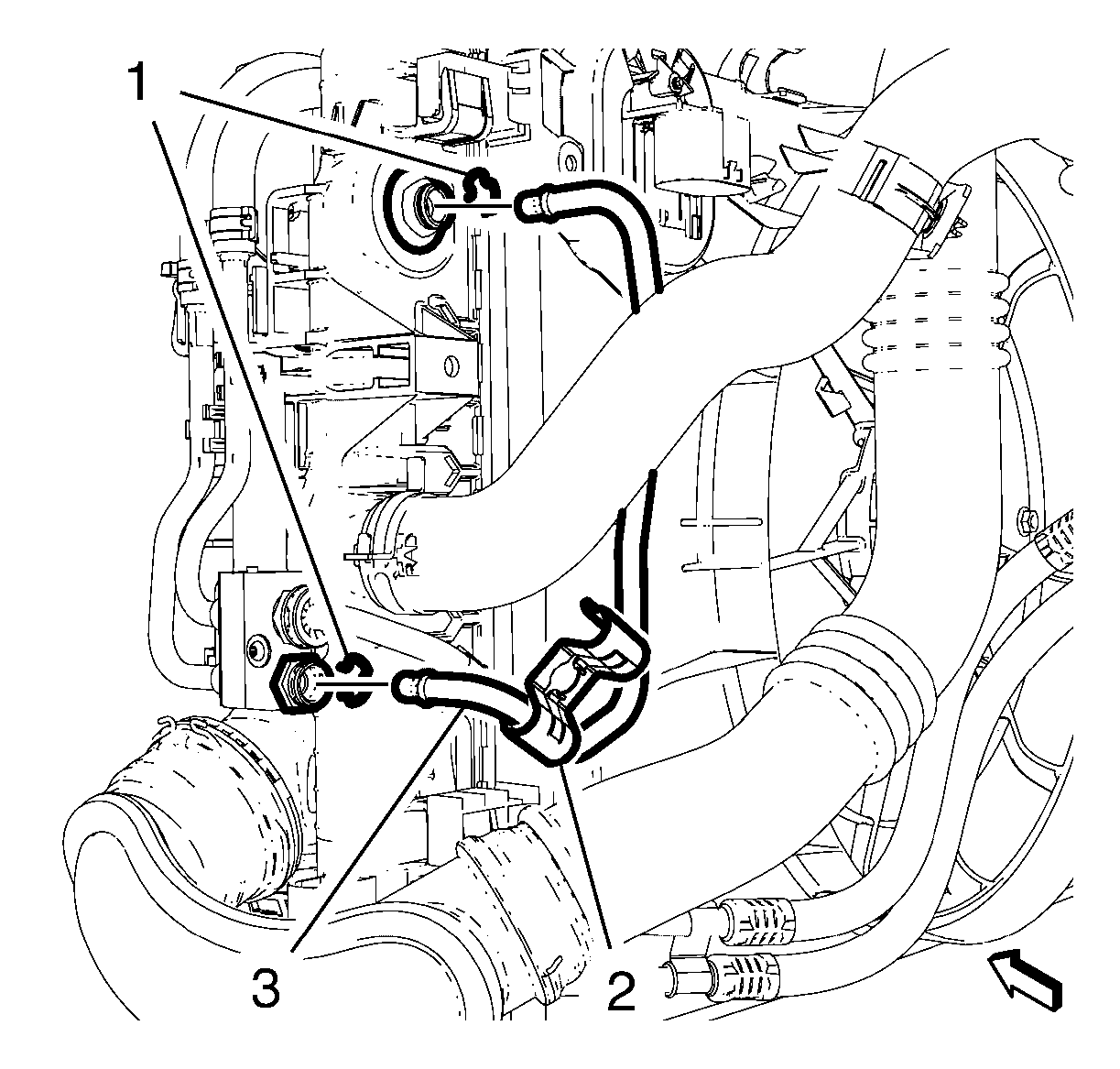

- Disconnect transmission fluid cooler pipe (2) from transmission fluid auxiliary cooler and radiator. Remove 2 retainers (1). Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection (6T30-MH9 and 6T40-MH8) and Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection (AF40-MDK) .
- Remove transmission fluid cooler pipe (2).
