2015 Chevrolet Captiva Sport LTZFACTORY OEM SERVICE PROCEDURE
Front Side Door Window Channel Retainer Replacement

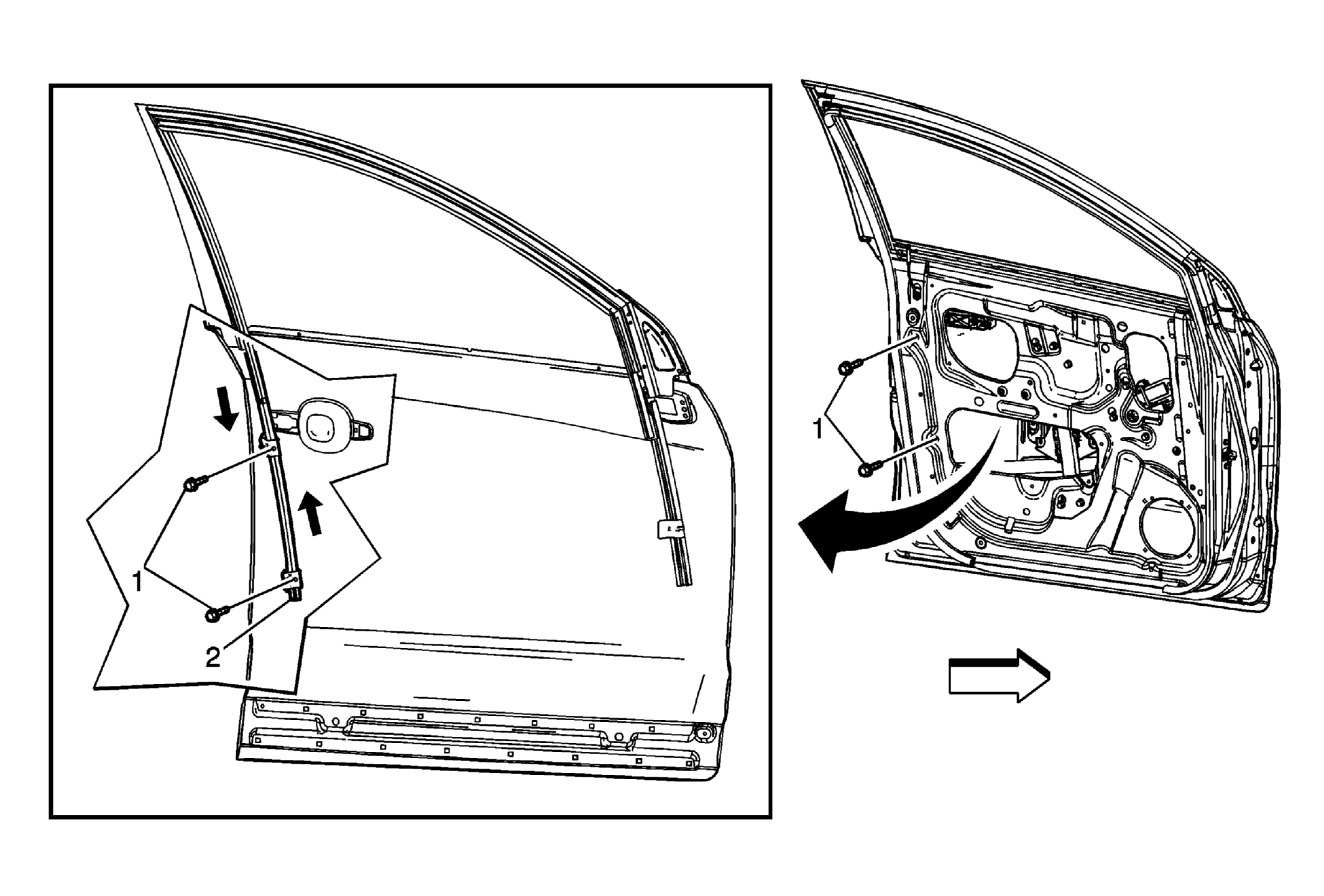

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the front side door window. Refer to Front Side Door Window Replacement . |
|
| 1 | Front Side Door Window Weatherstrip Channel Retainer Bolts (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Front Side Door Window Weatherstrip Channel Retainer TIP: Pull the weatherstrip out of the channel, remove the channel retainer from the door. |
