2015 Chevrolet Caprice 6.0L Eng VIN 2FACTORY OEM SERVICE PROCEDURE

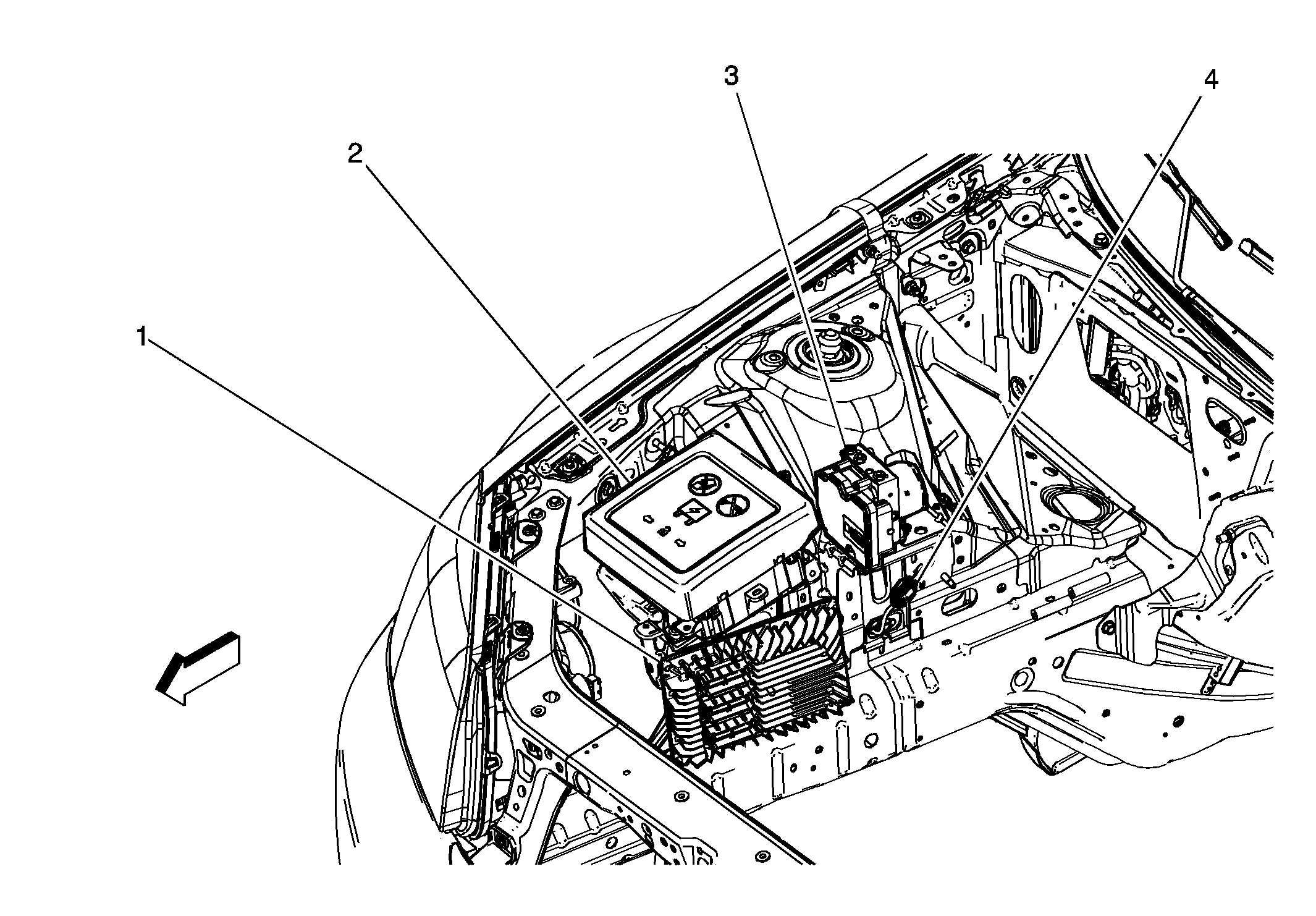

Right Front of Engine Compartment Components (LFX)
Right Front of Engine Compartment Components (LFX)
| Items |
|---|
| 1: K20 Engine Control Module K20 Engine Control Module X1 L77K20 Engine Control Module X1 (LFX)K20 Engine Control Module X2 (L77)K20 Engine Control Module X2 LFXK20 Engine Control Module X3 LFX |
| 2: X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X4X50A Fuse Block - Underhood X5 |
| 3: K17 Electronic Brake Control Module K17 Electronic Brake Control Module |
| 4: B5RF Wheel Speed Sensor - Right Front B5RF Wheel Speed Sensor - Right Front |
