2015 Chevrolet Caprice 6.0L Eng VIN 2FACTORY OEM SERVICE PROCEDURE
Installation Procedure

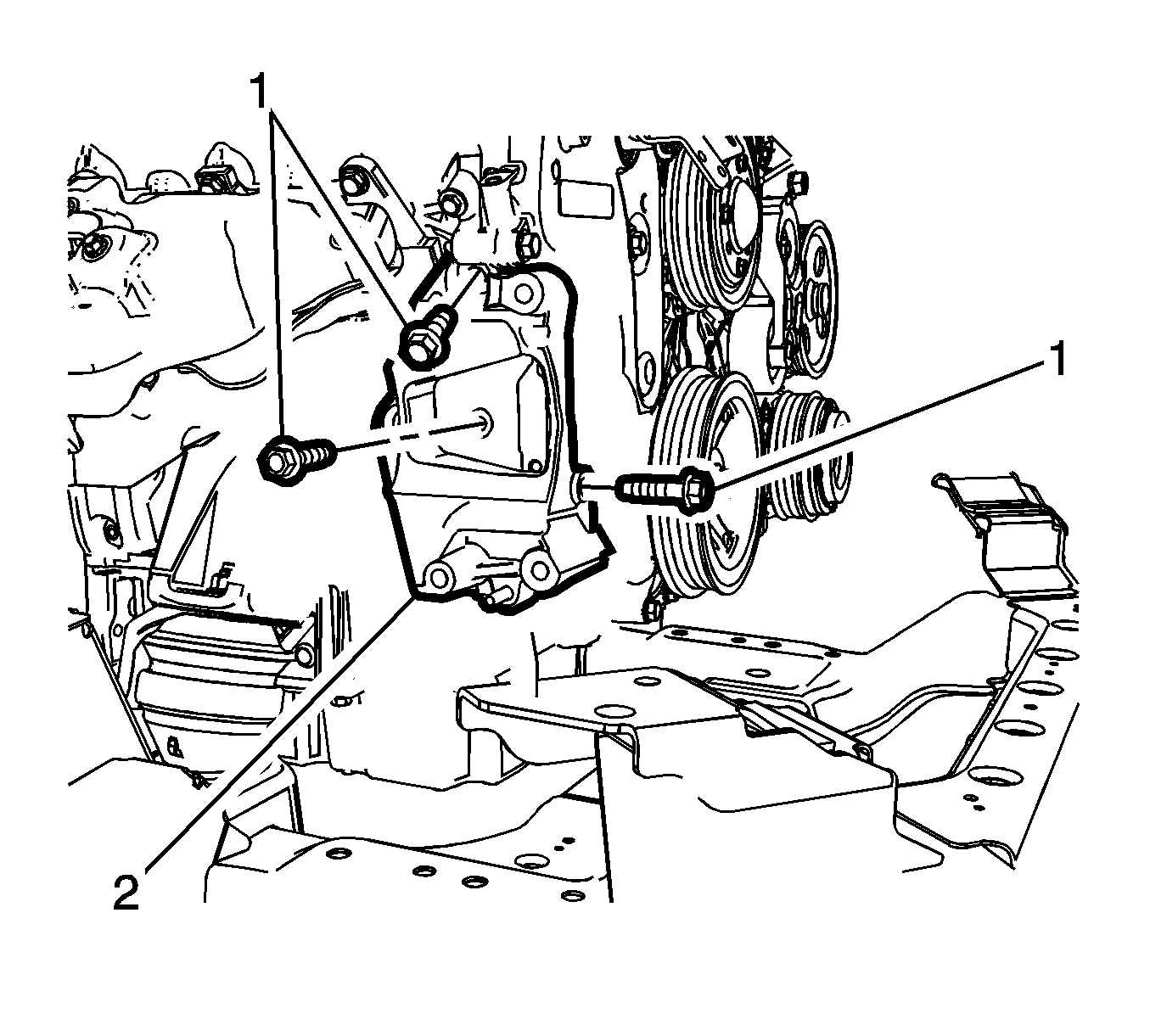

- Install the generator bracket (1) to the engine block.
- Install the generator bracket to engine block retaining bolts (1) and tighten to 58 N.m (43 lb ft).

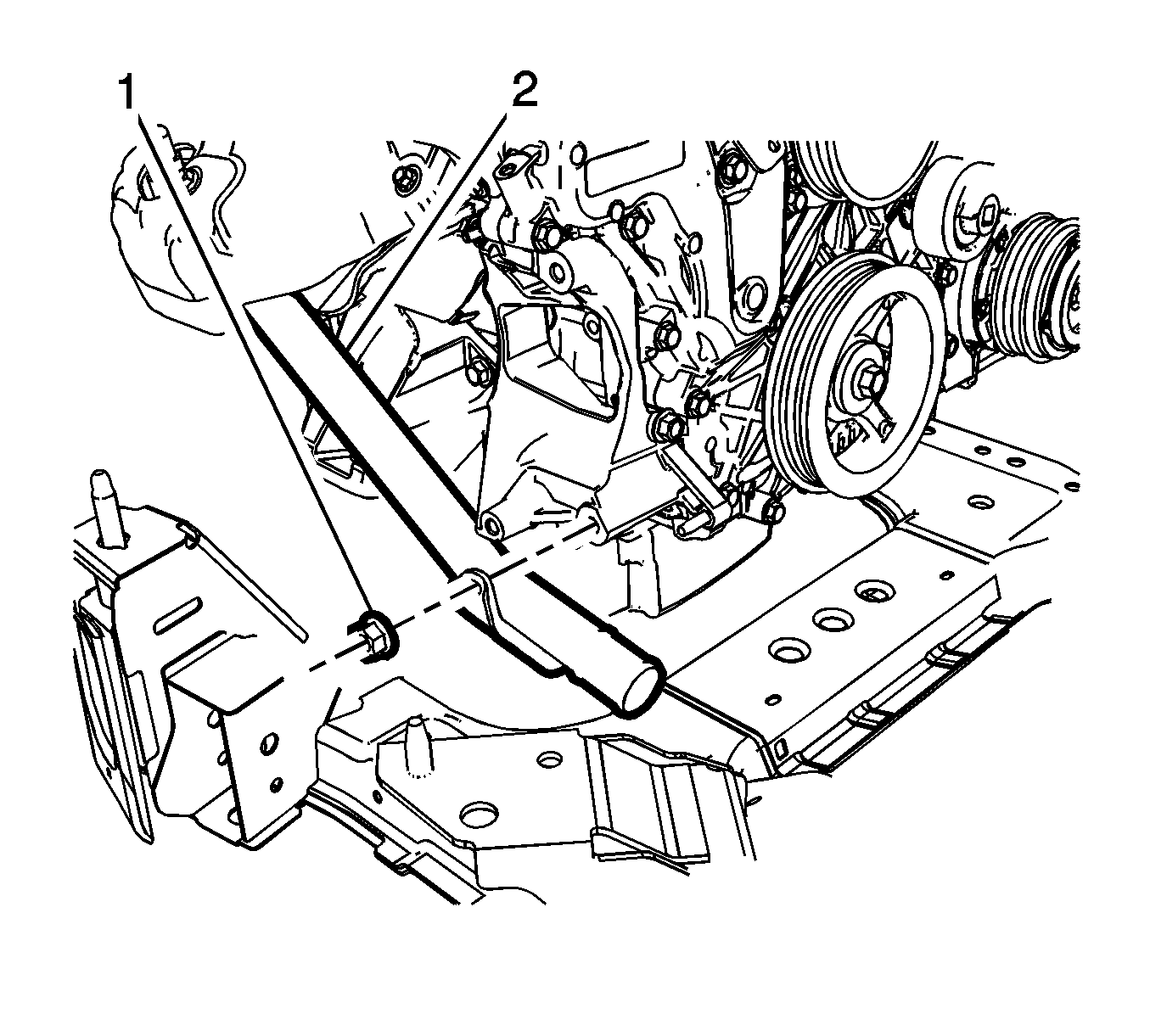

- Install the coolant inlet pipe (2) to generator bracket retaining nut (1) and tighten to 22 N.m (16 lb ft).
- Install the generator. Refer to Generator Replacement (LFX) Generator Replacement (L77) .
CAUTION:
Refer to Fastener Caution .
