2014 Chevrolet VoltFACTORY OEM SERVICE PROCEDURE
Installation Procedure
- Clean the sealing surfaces of the EBCM and the BPMV with denatured alcohol or equivalent and allow to dry.

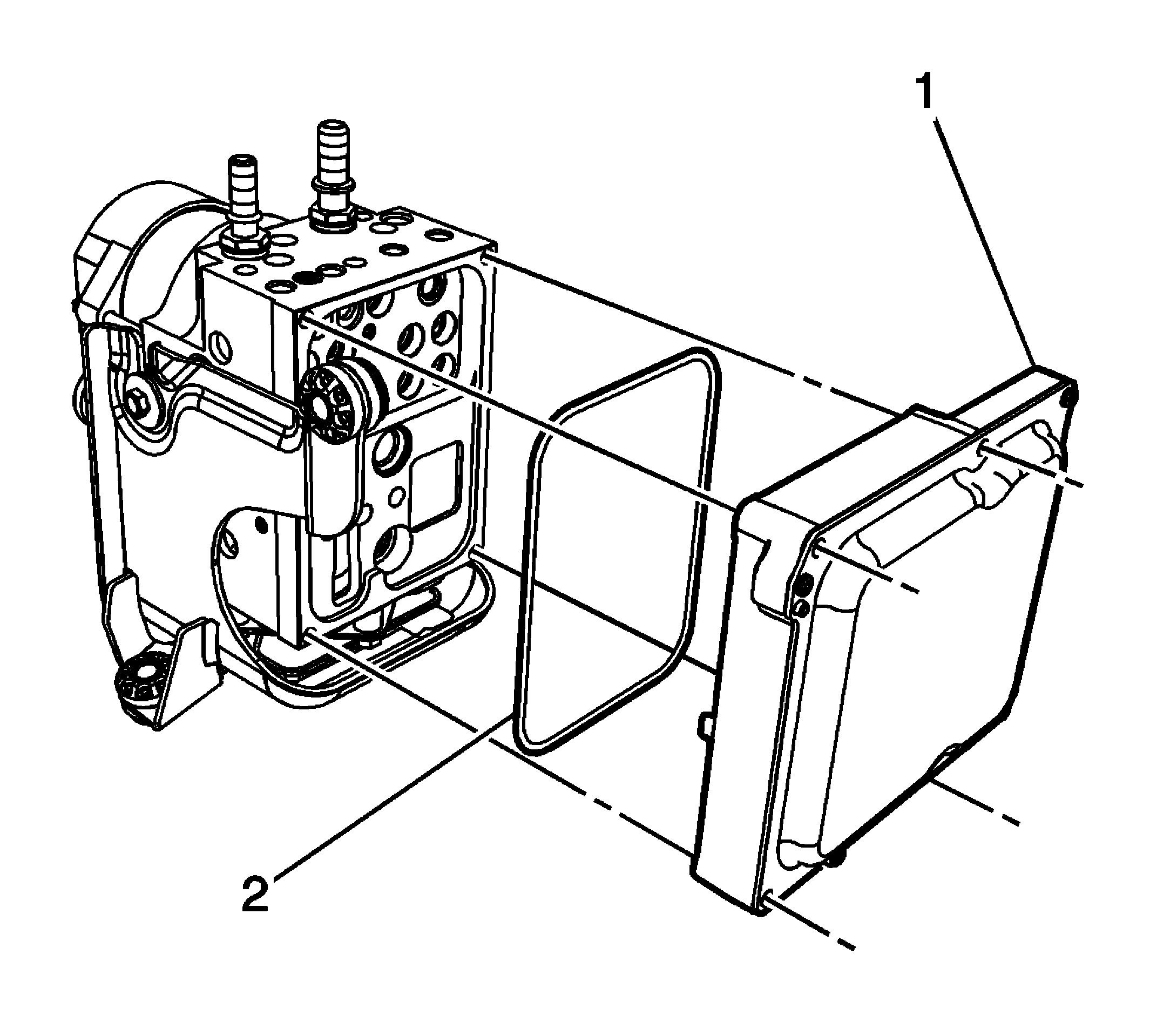

- Install the EBCM (1) and seal (2) to the BPMV.

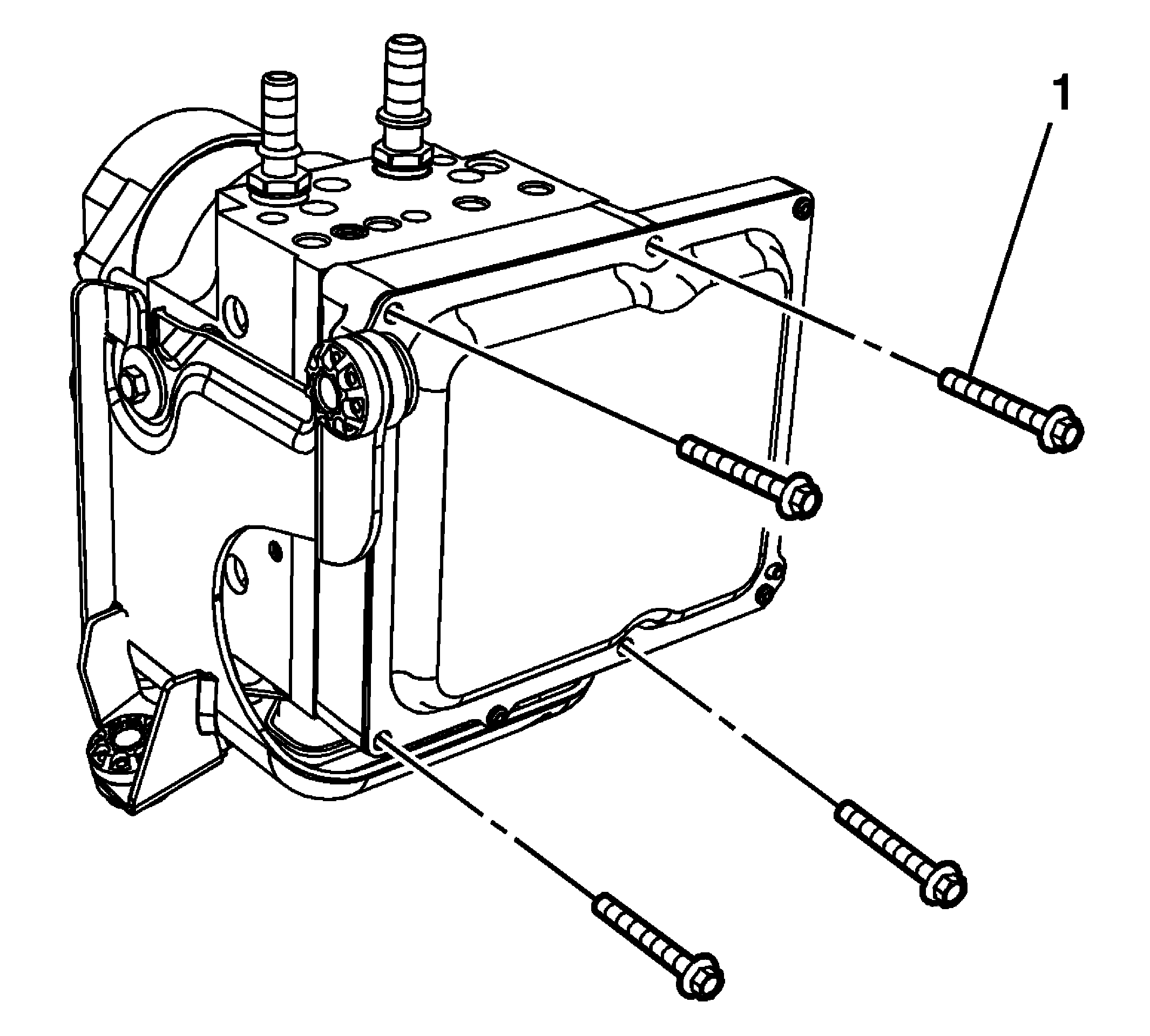

- Install the EBCM bolts (1) and tighten to 3 N.m (27 lb in).
