2014 Chevrolet SSFACTORY OEM SERVICE PROCEDURE

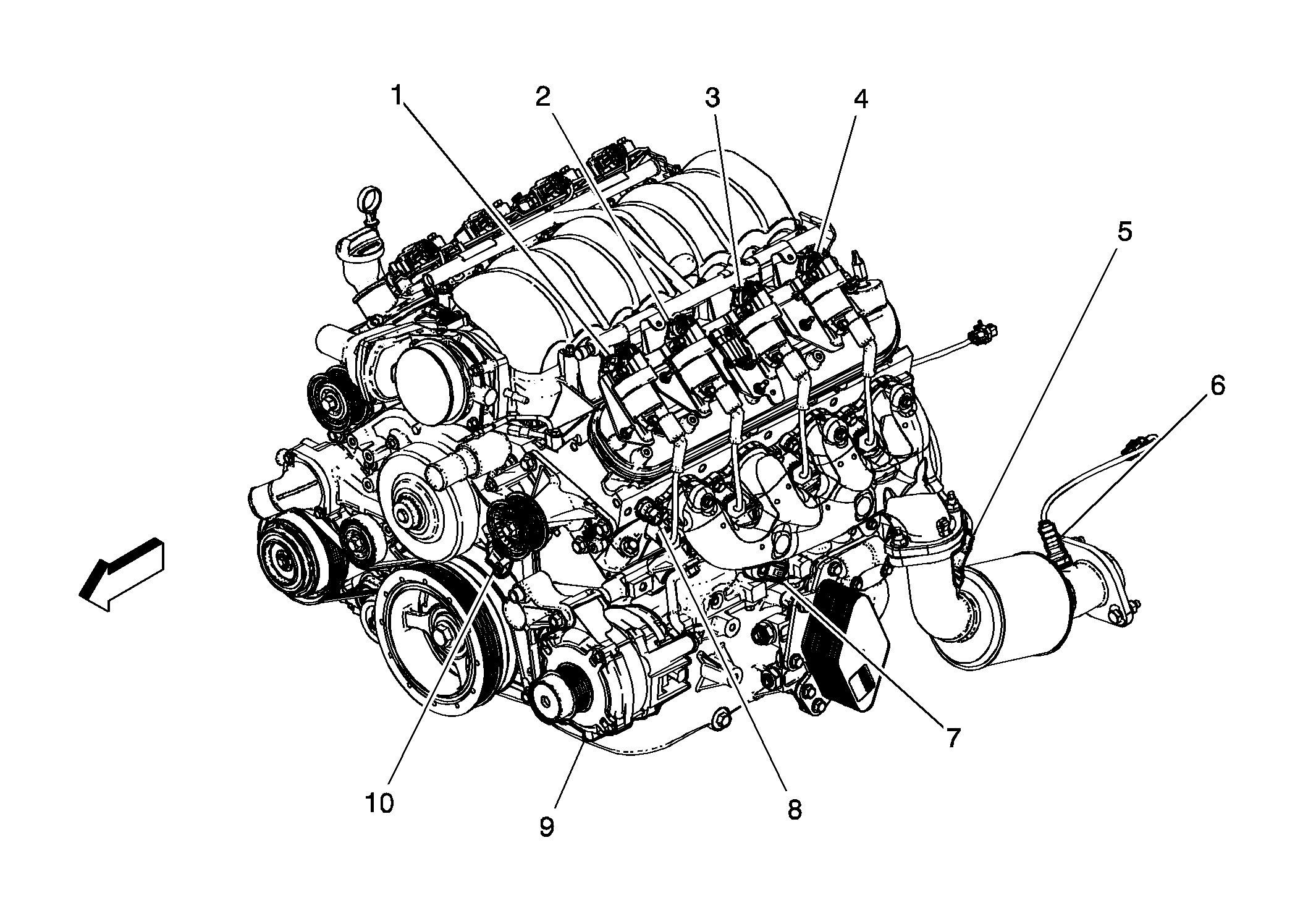

Left Front of Engine Components
Left Front of Engine Components
| Items |
|---|
| 1: Q17A Fuel Injector 1 Q17A Fuel Injector 1 |
| 2: Q17C Fuel Injector 3 Q17C Fuel Injector 3 |
| 3: Q17E Fuel Injector 5 Q17E Fuel Injector 5 |
| 4: Q17G Fuel Injector 7 Q17G Fuel Injector 7 |
| 5: B52C Heated Oxygen Sensor - Bank 1 Sensor 1 B52C Heated Oxygen Sensor - Bank 1 Sensor 1 |
| 6: B52D Heated Oxygen Sensor - Bank 1 Sensor 2 B52D Heated Oxygen Sensor - Bank 1 Sensor 2 |
| 7: B68A Knock Sensor 1 B68A Knock Sensor 1 |
| 8: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor |
| 9: G13 Generator G13 Generator X1 |
| 10: B23 Camshaft Position Sensor B23 Camshaft Position Sensor |
