Front of Instrument Panel Components

Items
1: S30 Headlamp Switch S30 Headlamp Switch
2: S27 Head-Up Display Switch (UV6) S27 Head-Up Display Switch (UV6)
3: P16 Instrument Cluster P16 Instrument Cluster
4: P29 Head-Up Display (UV6) P29 Head-Up Display (UV6)
5: S38 Ignition Mode Switch (BTM) S38 Ignition Mode Switch (BTM)
6: P19B Speaker - Center Instrument Panel (UQA) P19B Speaker - Center Instrument Panel (UQA)
7: B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor
8: P17 Info Display Module P17 Info Display Module X1 P17 Info Display Module X2 P17 Info Display Module X3
9: A11 Radio A11 Radio X1 A11 Radio X10 A11 Radio X5 A11 Radio X7 A11 Radio X8 A11 Radio X9
10: F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1 F101 Passenger Instrument Panel Air Bag X2
11: F114P Knee Air Bag - Passenger
12: E27 Instrument Panel Compartment Lamp (U27)
13: A26 HVAC Controls A26 HVAC Controls
15: X80F Accessory Power Receptacle - Front X80F Accessory Power Receptacle - Front
16: F114D Knee Air Bag - Driver
17: X84 Data Link Connector X84 Data Link Connector

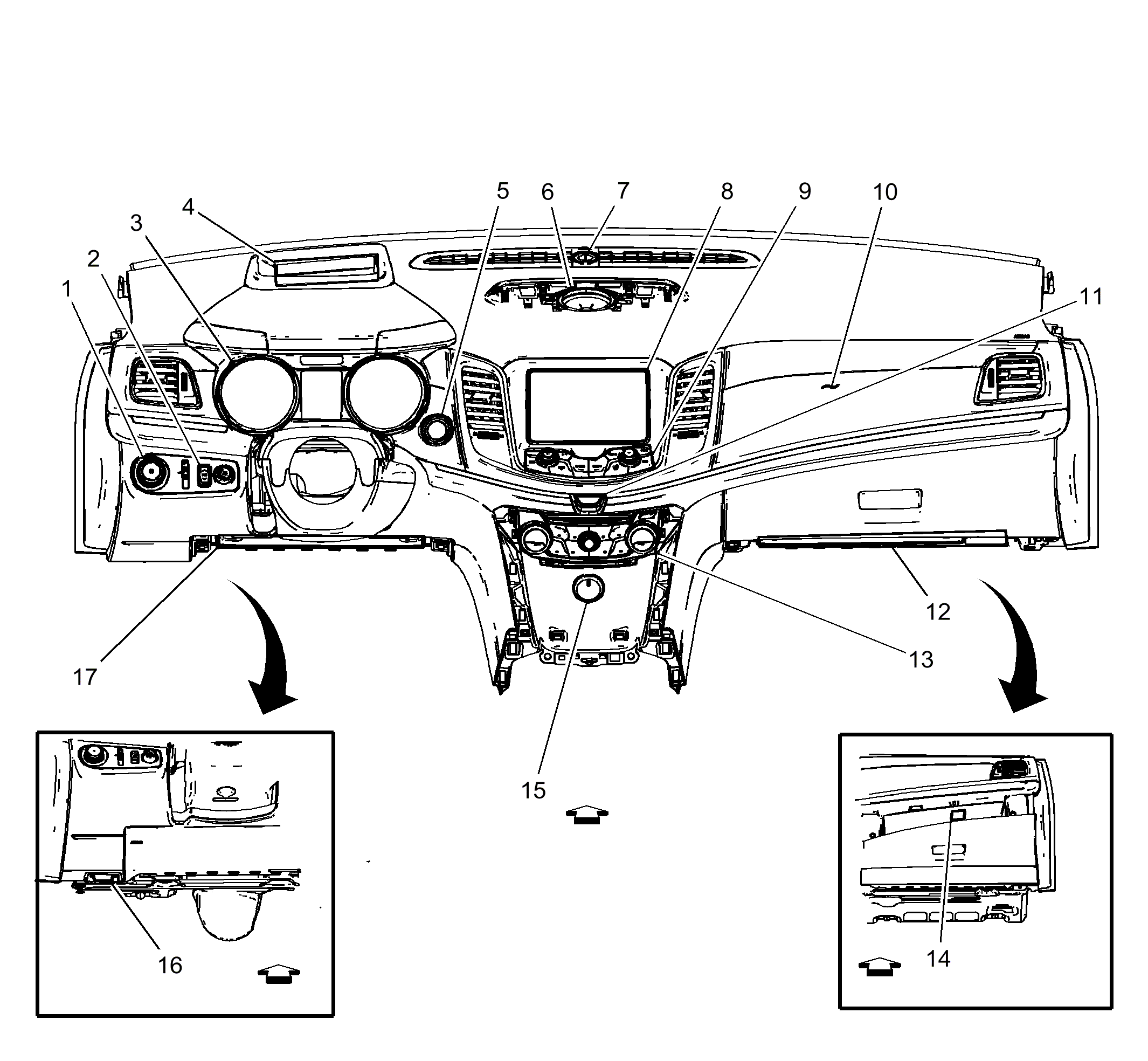

Fig 1: Front of Instrument Panel Components

Courtesy of GENERAL MOTORS COMPANY
