2014 Chevrolet SSFACTORY OEM SERVICE PROCEDURE

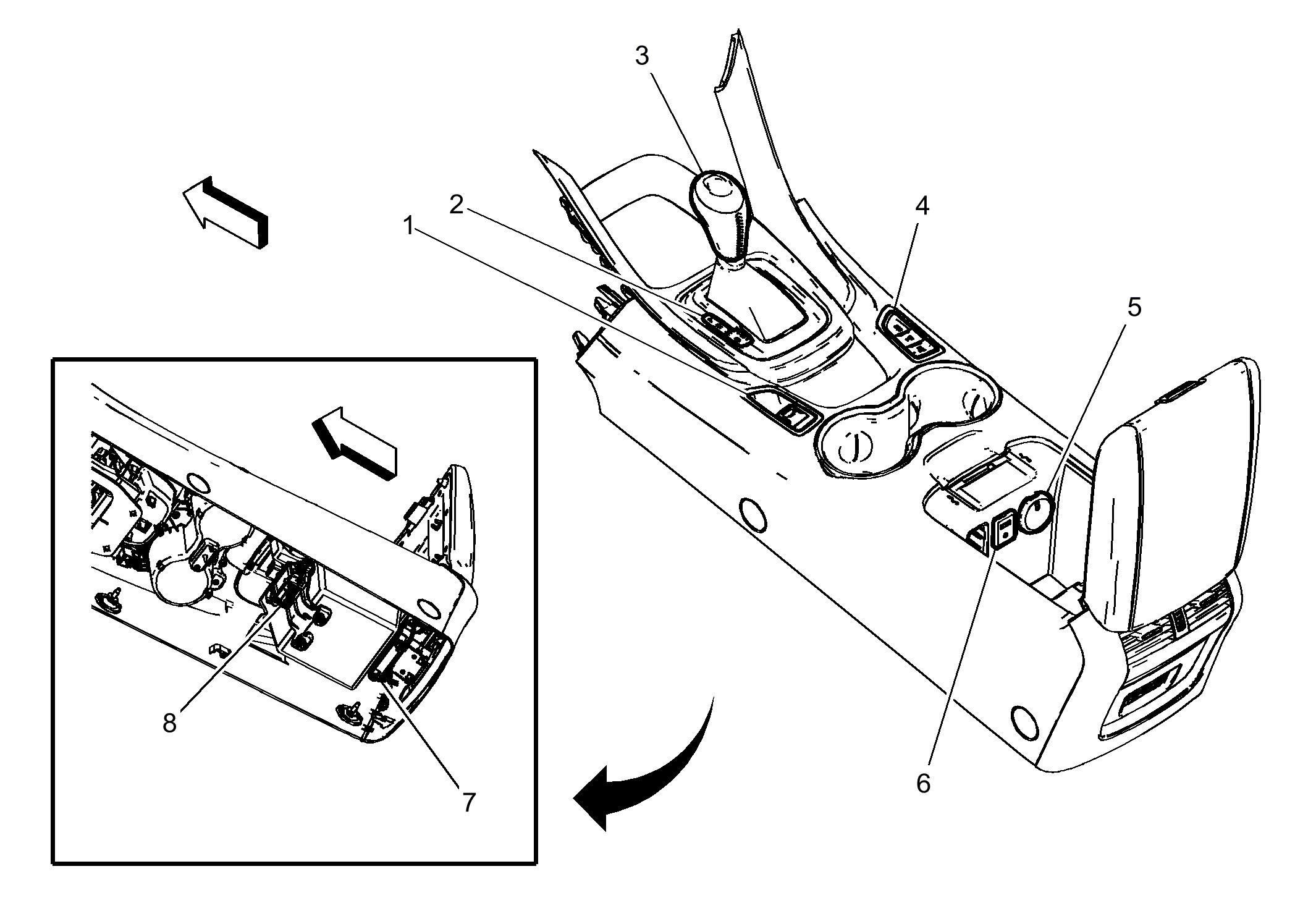

Center Console Components
Center Console Components
| Items |
|---|
| 1: K89 Immobilizer Control Module K89 Immobilizer Control Module |
| 2: T10K Keyless Entry Antenna - Center Console Rear (BTM) T10K Keyless Entry Antenna - Center Console Rear |
| 3: S91 Park Brake Control Switch (J77) |
| 4: P2 Transmission Shift Lever Position Indicator |
| 5: S3 Transmission Shift Lever |
| 6: S48E Multifunction Switch - Center Console (UFQ) S48E Multifunction Switch - Center Console (UFQ) |
| 7: X83 Auxiliary Audio Input (USR) X83 Auxiliary Audio Input X1X83 Auxiliary Audio Input X2 |
| 8: X80H Accessory Power Receptacle - Center Console |
