2014 Chevrolet Impala Limited LSFACTORY OEM SERVICE PROCEDURE

Front View Camera Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

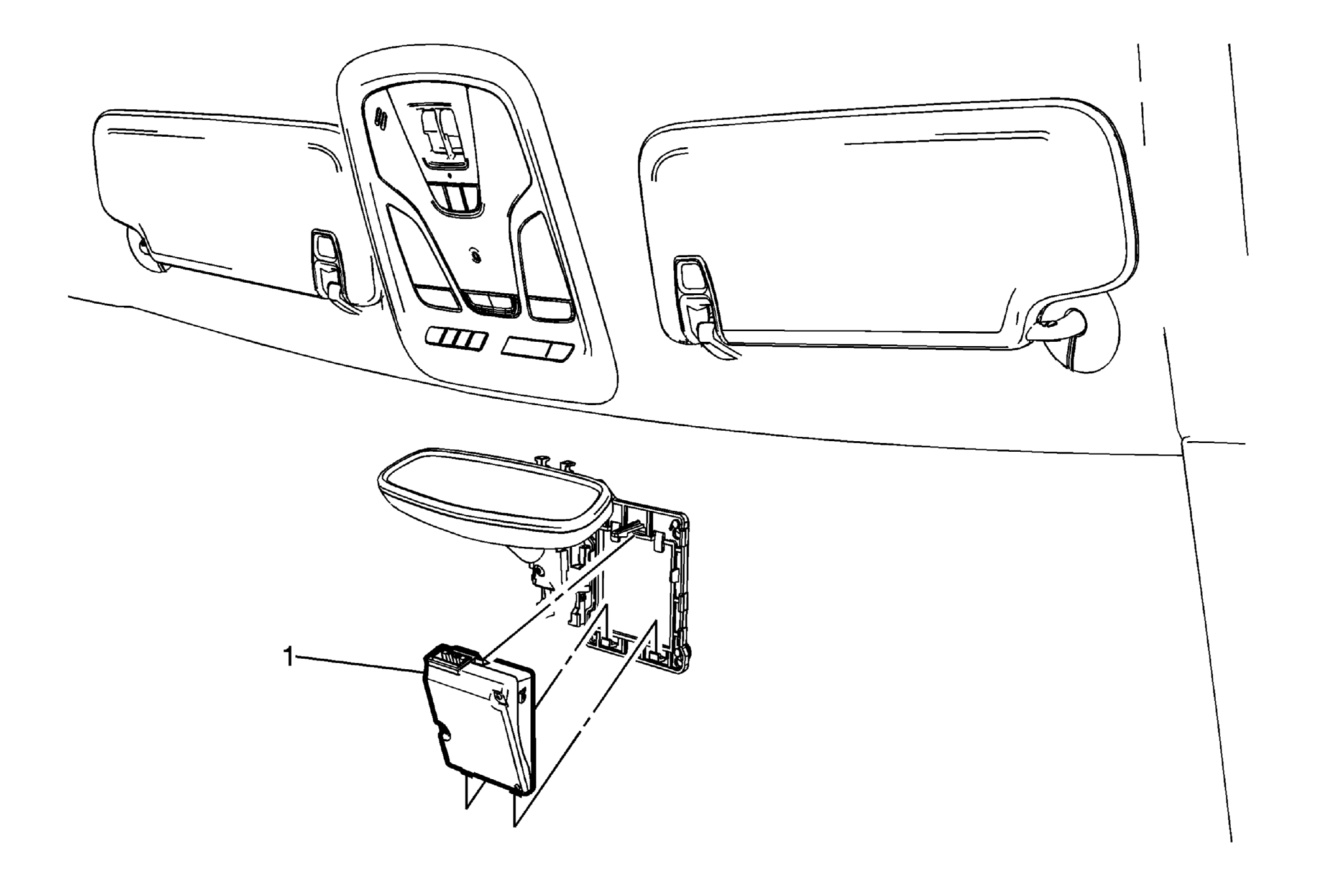

Fig 1: Front View Camera
GM2908929Courtesy of GENERAL MOTORS COMPANY
Front View Camera Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the windshield multifunction sensor mounting bracket lower cover Refer to Windshield Multifunction Sensor Mount Bracket Lower Cover Replacement .
  2. Remove the windshield multifunction sensor mounting bracket cover Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement .
1 Front View Camera

Procedure

  1. Using a suitable plastic tool, insert the tool between the edge of the front view camera retainers, turn the tool to release the retainers and the camera and rotate downward.
  2. Disconnect the electrical connector.
  3. Program and calibrate the front view camera. For programming and set up, refer to Front View Camera Module Calibration .
