Chassis Control Module Replacement

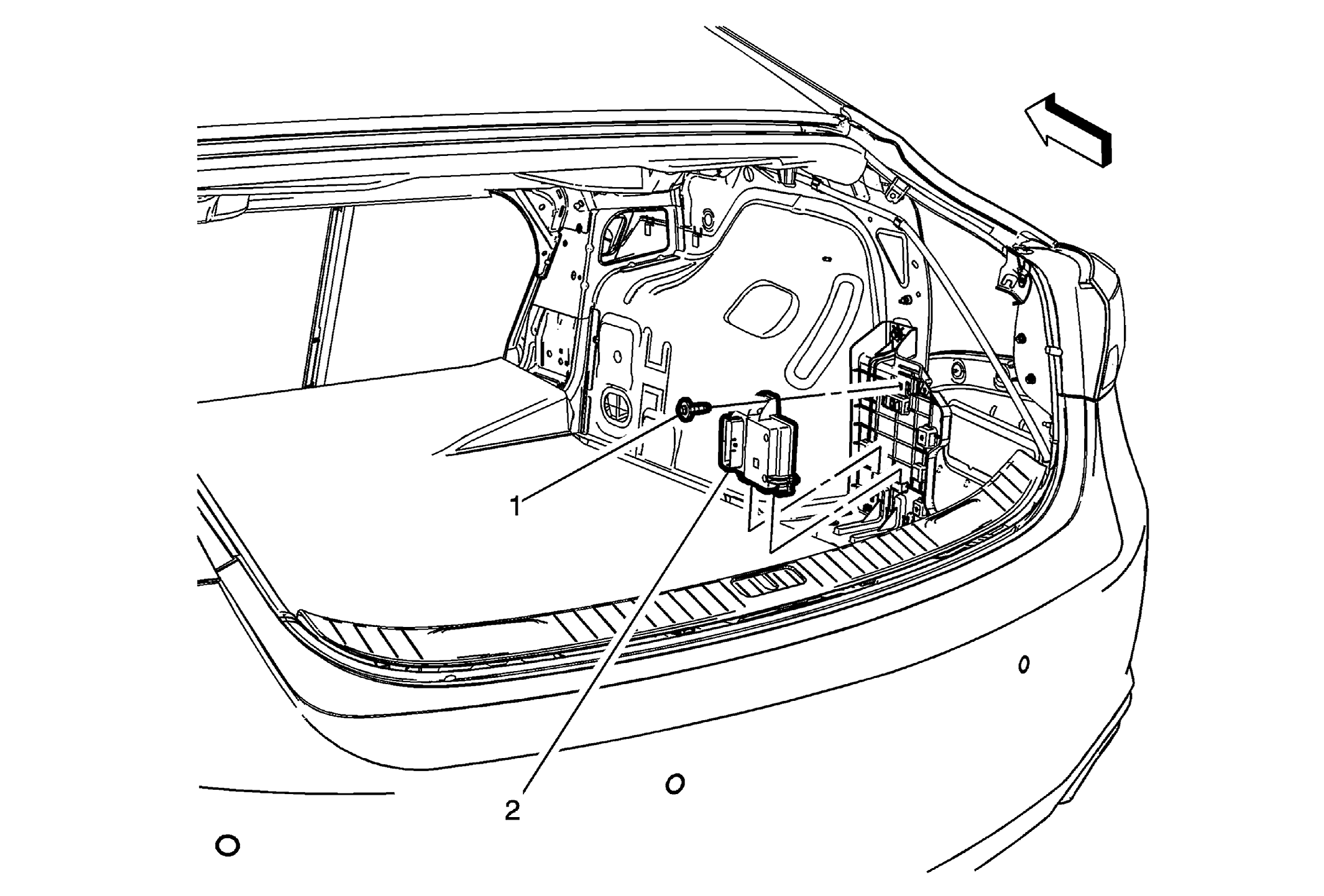

| Callout | Component Name |
|---|---|
| Preliminary Procedure Reposition the passenger rear side trim panel. Refer to Rear Compartment Side Trim Replacement - Right Side (Without HP6) , Rear Compartment Side Trim Replacement - Right Side (With HP6) . |
|
| 1 | Chassis Control Module Fastener (Qty: 1)
CAUTION:
Refer to Fastener Caution . Tighten 9 (80 lb in) |
| 2 | Chassis Control Module Procedure
|
