2014 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE

Front of Instrument Panel Components

Items
1: P19B Speaker - Center Instrument Panel (UQS) P19B Speaker - Center Instrument Panel (UQS)
2: B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor
3: P17 Info Display Module P17 Info Display Module X1 (IO3)P17 Info Display Module X1 (IO5 or IO6)P17 Info Display Module X2 (IO3)P17 Info Display Module X2 (IO5 or IO6)
4: A33 Media Disc Player A33 Media Disc Player
5: K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1 K36 Inflatable Restraint Sensing and Diagnostic Module X2
6: P19V Speaker - Right Front Tweeter P19V Speaker - Right Front Tweeter (UQG)P19V Speaker - Right Front Tweeter (UQS)
7: E8K Instrument Panel Courtesy Lamp - Right E8K Instrument Panel Courtesy Lamp - Right
8: A26 HVAC Controls A26 HVAC Controls
9: E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp
10: F114P Knee Air Bag - Passenger F114P Knee Air Bag - Passenger
11: E8K Instrument Panel Courtesy Lamp - Right E8K Instrument Panel Courtesy Lamp - Right
12: S35 Instrument Panel Compartment Lamp Switch S35 Instrument Panel Compartment Lamp Switch
13: K33 HVAC Control Module K33 HVAC Control Module X1 K33 HVAC Control Module X2 K33 HVAC Control Module X3 K33 HVAC Control Module X4 (CJ2)
14: S38 Ignition Mode Switch (BTM) S38 Ignition Mode Switch (BTM)
15: E8K Instrument Panel Courtesy Lamp - Right E8K Instrument Panel Courtesy Lamp - Right
16: S48A Multifunction Switch - Instrument Panel (UD7, UEU or UFL) S48A Multifunction Switch - Instrument Panel (UD7, UEU or UFL)
17: X84 Data Link Connector X84 Data Link Connector
18: F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver
19: E8J Instrument Panel Courtesy Lamp - Left E8J Instrument Panel Courtesy Lamp - Left
20: S36 Instrument Panel Dimmer Switch S36 Instrument Panel Dimmer Switch
21: S58B Rear Compartment Lid Unlatch Switch - Interior (without UD7, UEU or UFL) S58B Rear Compartment Lid Unlatch Switch - Interior (without UD7, UEU or UFL)
22: S91 Park Brake Control Switch S91 Park Brake Control Switch
23: E1G Accent Lamp - Left Instrument Panel (C9J) E1G Accent Lamp - Left Instrument Panel (C9J)
24: P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter (UQG)P19H Speaker - Left Front Tweeter (UQS)
25: P43 Collision Alert Indicators (UEU or UFL) P43 Collision Alert Indicators (UEU or UFL)
26: P16 Instrument Cluster P16 Instrument Cluster
27: S26 Hazard Warning Switch S26 Hazard Warning Switch
28: X92 USB Receptacle (MCY) X92 USB Receptacle (MCY)

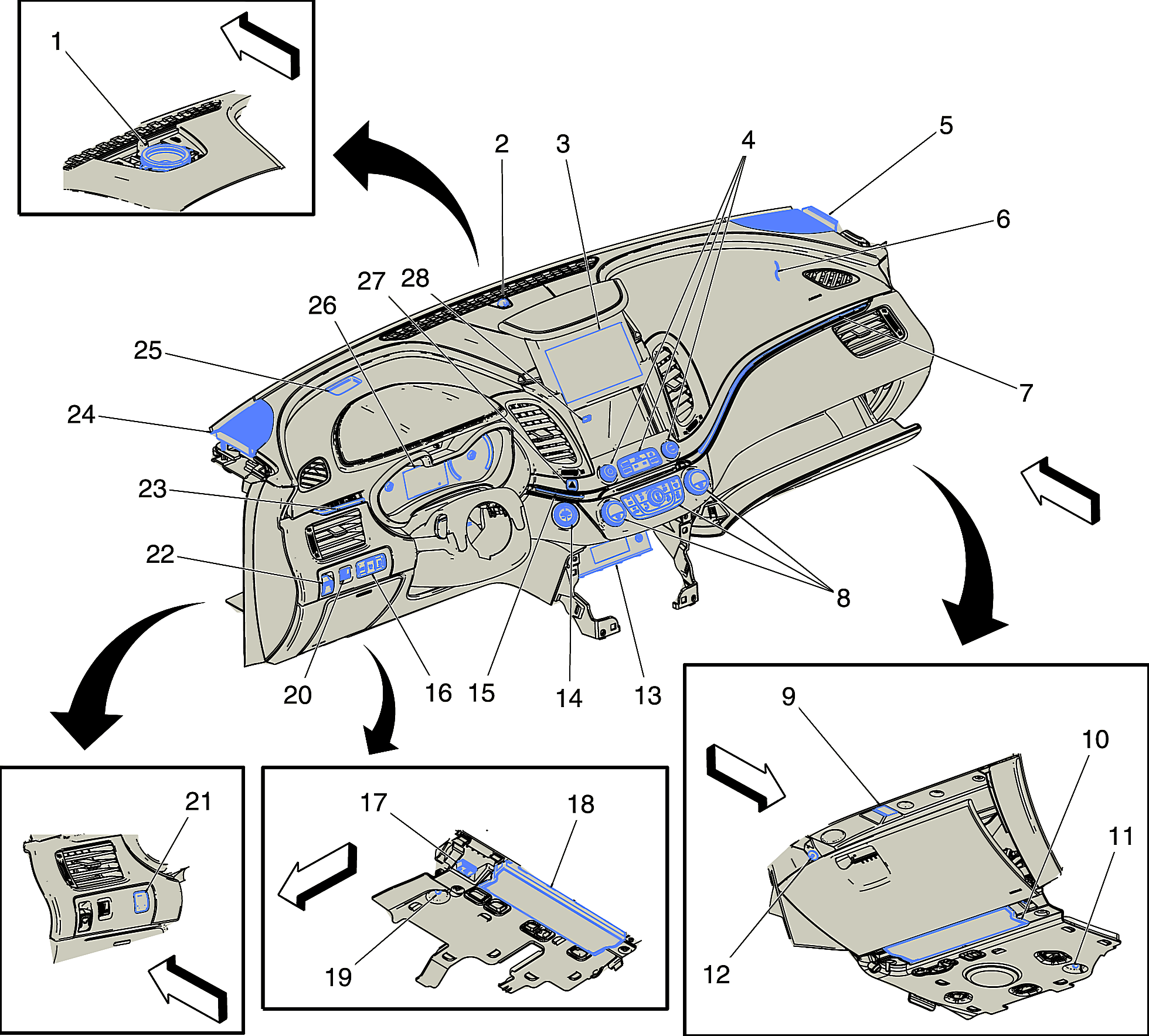

Fig 1: Front of Instrument Panel Components

Courtesy of GENERAL MOTORS COMPANY
