Accessory AC and DC Power Control Module Replacement

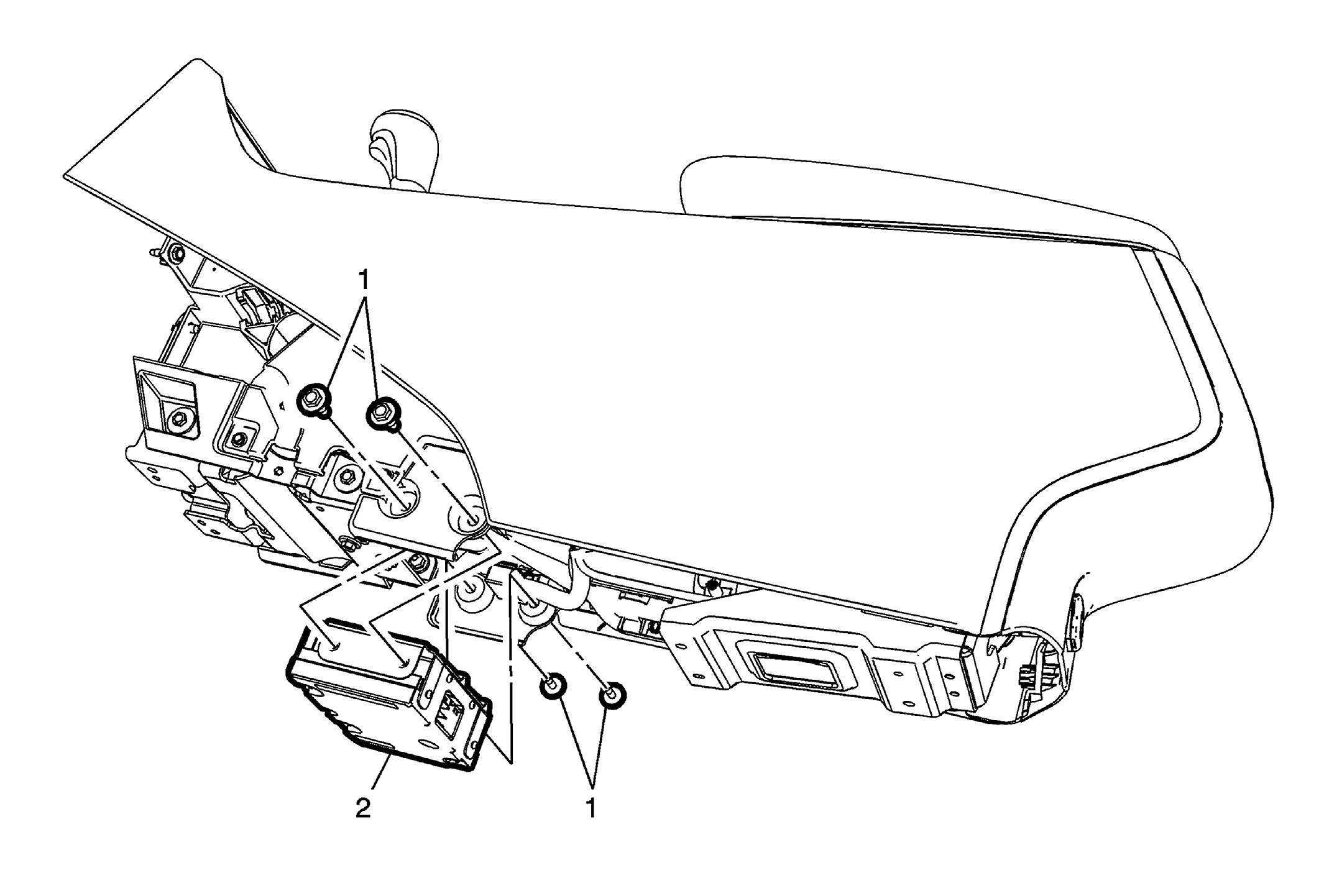

| Callout | Component Name |
|---|---|
|
WARNING:
The high intensity discharge system produces high voltage and current. In order to reduce the risk of severe shocks and burns, the battery negative cable must be disconnected any time service work is being performed on or around the high intensity discharge system. Preliminary Procedures
|
|
| 1 | Accessory AC and DC Power Control Module Fastener (Qty: 4)
CAUTION:
Refer to Fastener Caution . |
| 2 | Accessory AC and DC Power Control Module Procedure
|
