2014 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE

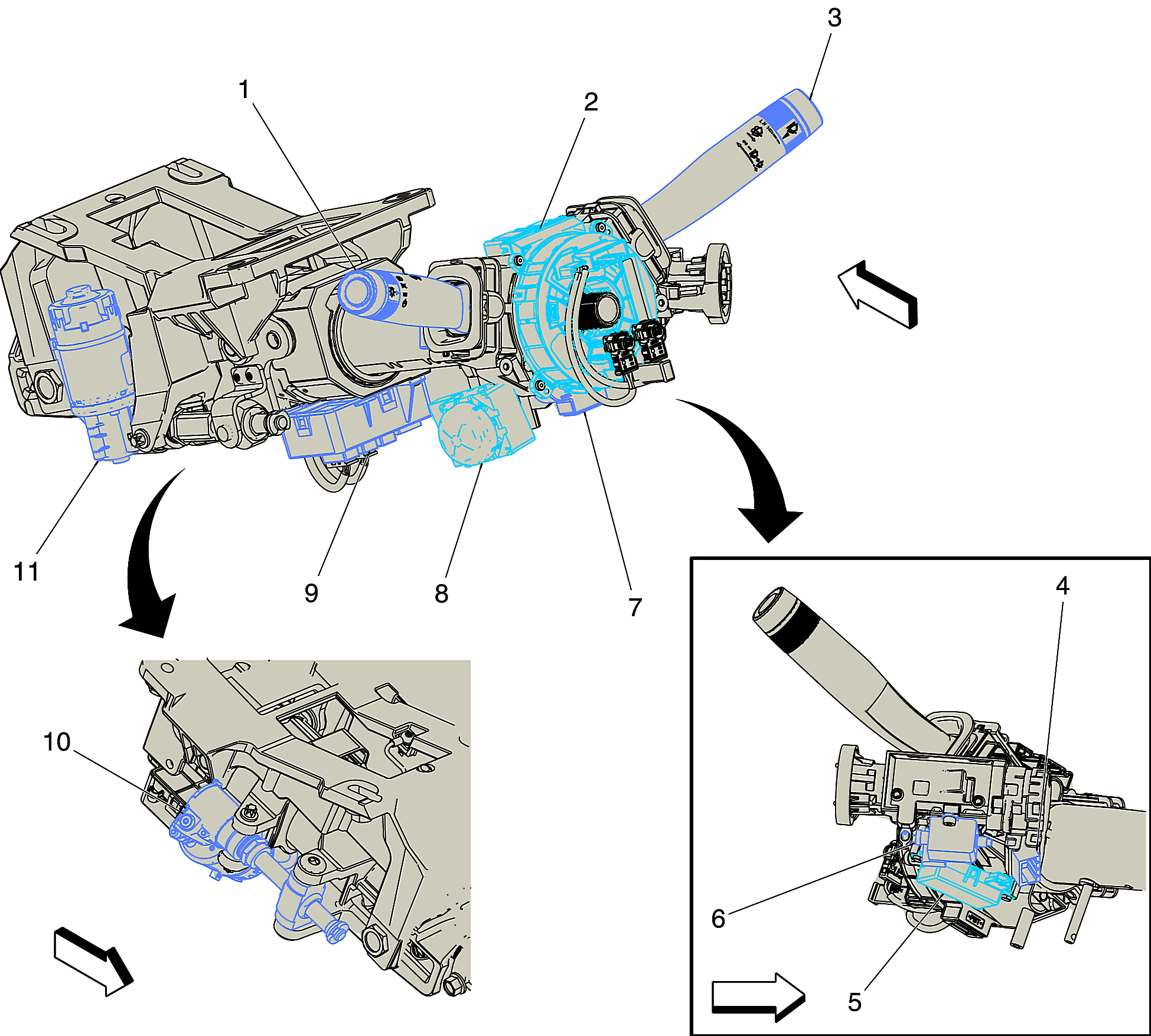

Steering Column Components
Steering Column Components
| Items |
|---|
| 1: S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch |
| 2: X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1X85 Steering Wheel Air Bag Coil X2X85 Steering Wheel Air Bag Coil X3X85 Steering Wheel Air Bag Coil X4 (UVD)X85 Steering Wheel Air Bag Coil X5 (UVD) |
| 3: S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch |
| 4: S39 Ignition Switch (without BTM) S39 Ignition Switch (without BTM) |
| 5: M93 Key Capture Solenoid Actuator (without BTM) M93 Key Capture Solenoid Actuator (without BTM) |
| 6: K89 Immobilizer Control Module K89 Immobilizer Control Module (BTM)K89 Immobilizer Control Module (without BTM) |
| 7: B99 Steering Wheel Angle Sensor B99 Steering Wheel Angle Sensor |
| 8: S71 Steering Column Tilt and Telescope Switch (N38) S71 Steering Column Tilt and Telescope Switch (N38) |
