2014 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE
Rear Object Alarm Control Module Replacement
Rear Object Alarm Control Module Replacement

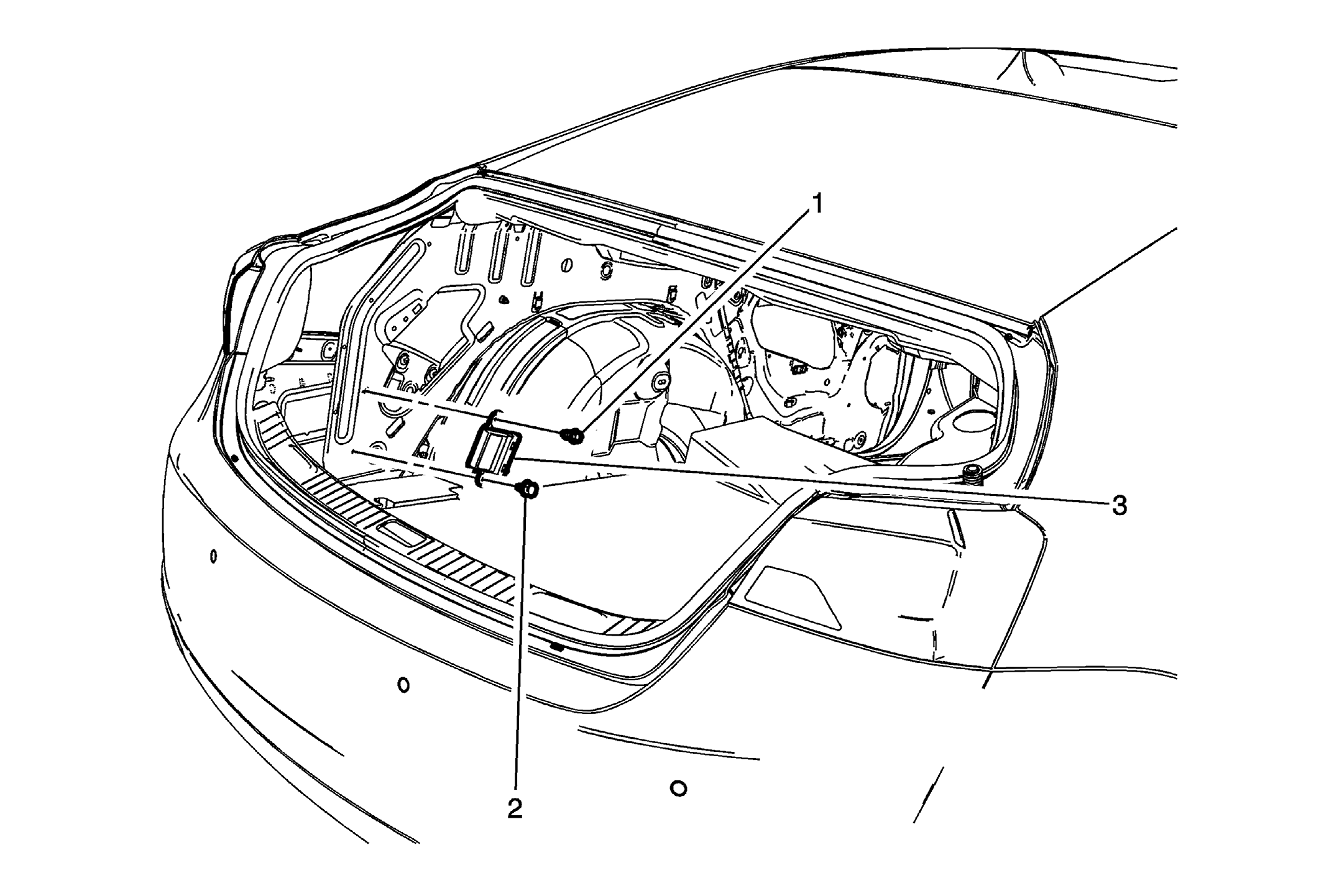

| Callout | Component Name |
|---|---|
| Preliminary Procedure Reposition the rear compartment side trim panel enough to gain access to the module. Refer to Rear Compartment Side Trim Replacement - Left Side (Without HP6) , Rear Compartment Side Trim Replacement - Left Side (With HP6) . |
|
| 1 | Rear Object Alarm Control Module Fastener
CAUTION:
Refer to Fastener Caution . Tighten 4.5 N.m (40 lb in) |
| 2 | Rear Object Alarm Control Module Retainer |
| 3 | Rear Object Alarm Control Module Procedure
|
