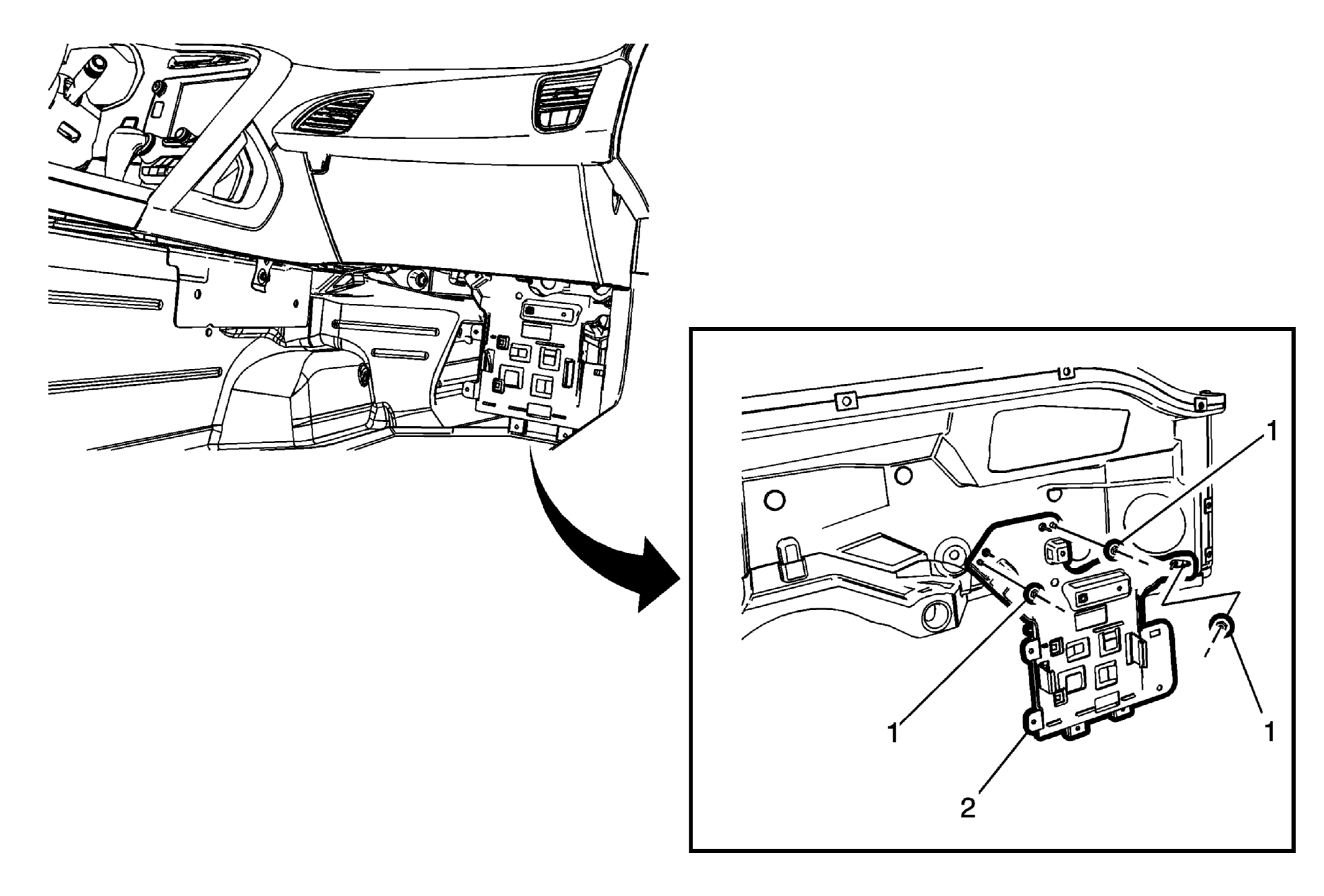

Body Control Module Bracket Replacement
| Callout | Component Name |
|---|---|
|
Preliminary Procedures
|
|
| 1 | Body Control Module Bracket Nuts (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Body Control Module Bracket Procedure
|
