2014 Chevrolet Corvette 2D Convertible, Automatic TransFACTORY OEM SERVICE PROCEDURE

Keyless Entry Control Module Replacement

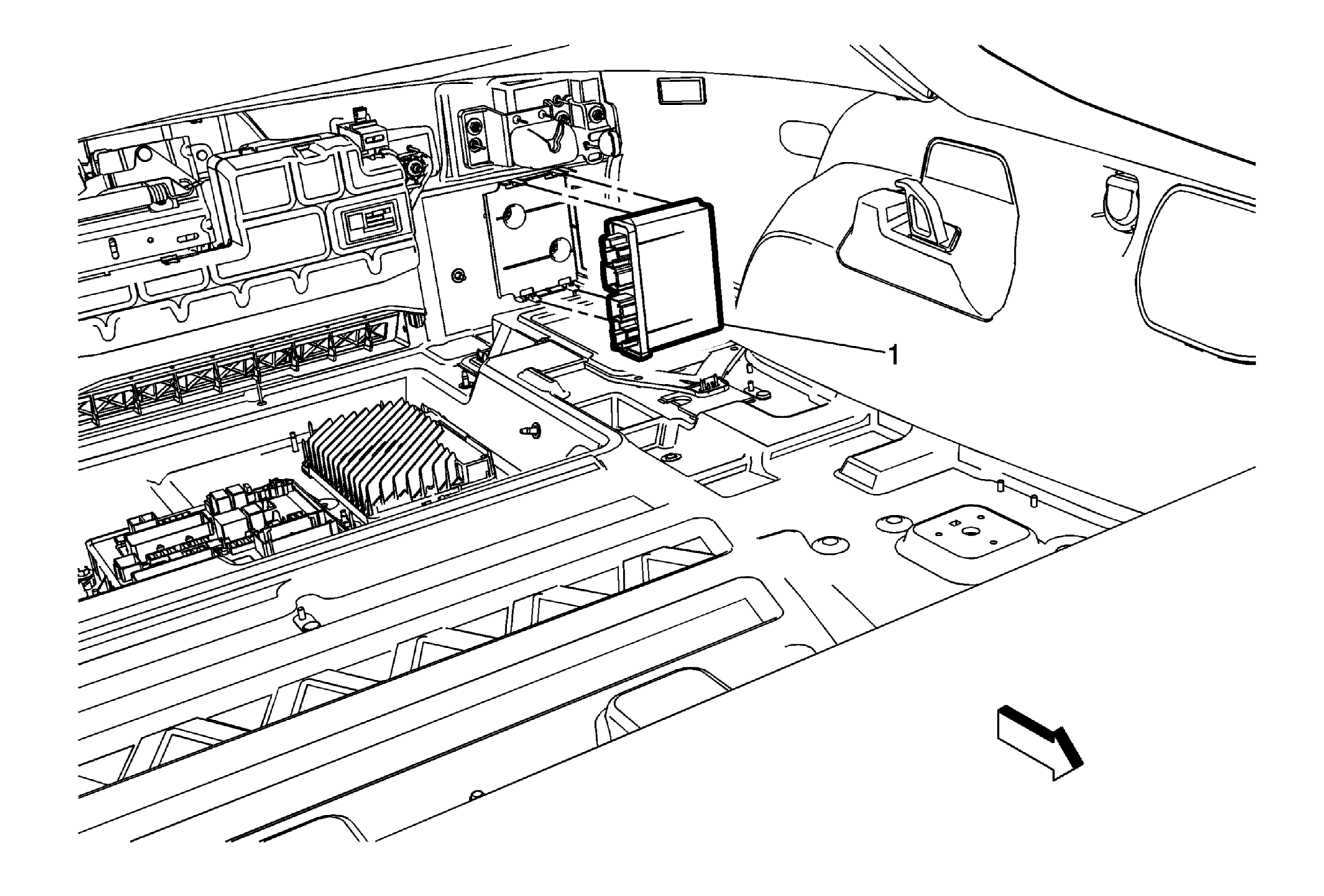

Fig 1: Keyless Entry Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement .

Keyless Entry Control Module

Procedure

Disconnect the electrical connectors.
Release module from retaining tabs on bracket.
For programming and set up information, refer to Control Module References .
