2013 Chevrolet Trax LS, Automatic TransFACTORY OEM SERVICE PROCEDURE

Knock Sensor Replacement

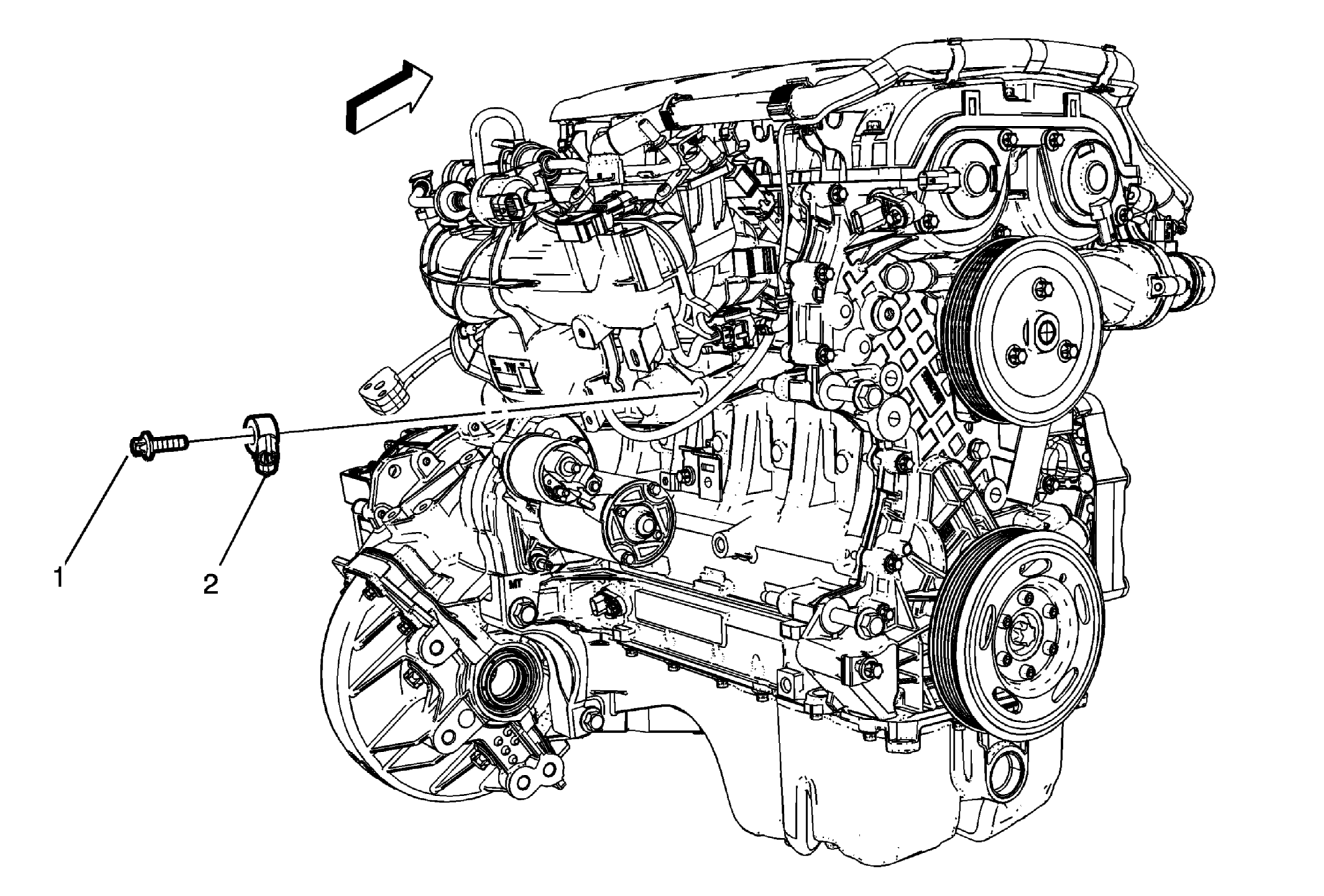

Fig 1: Knock Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Disconnect the electrical wiring harness connector.

Knock Sensor Fastener

CAUTION:

Refer to Fastener Caution .

Tighten
20 (15 lb ft)

Knock Sensor
