2013 Chevrolet Traverse LTZ, FWDFACTORY OEM SERVICE PROCEDURE

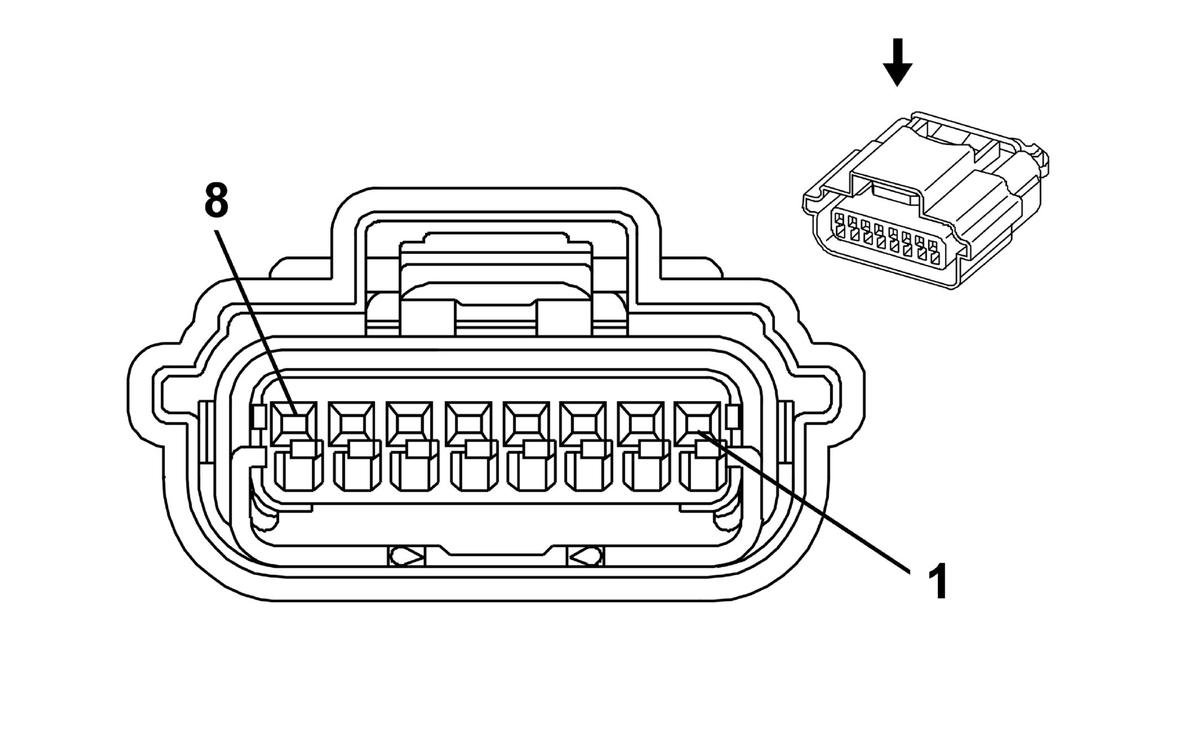

B92L Side Object Sensor - Left (UFT)
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Available | J-35616-64B (L-BU) | J-38125-215A | SAIT-A03T-M064 | 14 | P | P |
B92L Side Object Sensor - Left (UFT)
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | - | - | - | Not Occupied | - | - |
| 2 | 0.5 | D-GN | 5060 | Low Speed GMLAN Serial Data | I | - |
| 3, 4 | - | - | - | Not Occupied | - | - |
| 5 | 0.5 | RD/WH | 3140 | Battery Positive Voltage | I | - |
| 6 | - | - | - | Not Occupied | - | - |
| 7 | 0.5 | D-GN | 5060 | Low Speed GMLAN Serial Data | I | - |
| 8 | 0.5 | BK | 650 | Ground | I | - |
