2013 Chevrolet Traverse LTZ, FWDFACTORY OEM SERVICE PROCEDURE

T1 Accessory DC/AC Power Inverter Module (KV1)

GM2231648

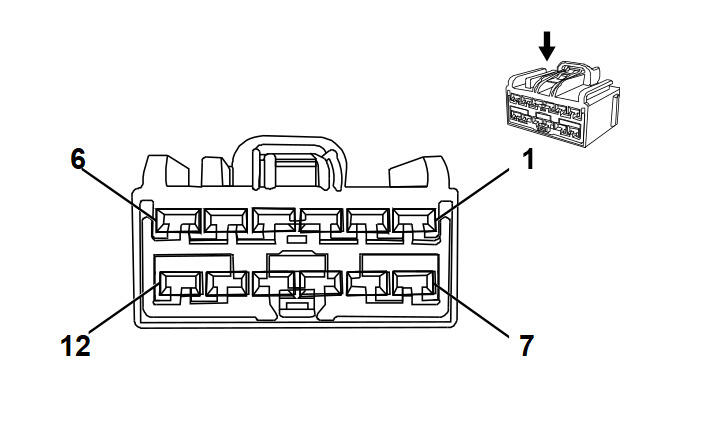

Connector Part Information
  • Harness: Body
  • OEM Connector: 7283-6467-40
  • Service Connector: 13580444
  • Description: 12-Way F 2.8 Kaizen Series (L-GY)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I 13578893 J-35616-4A (PU) J-38125-11A 7116-4110-02 9 E C
II 13575286 J-35616-35 (VT) J-38125-11A 7116-4111-02 9 E A
III 13580025 J-35616-35 (VT) J-38125-11A 7116-4112-02 9 C D
T1 Accessory DC/AC Power Inverter Module (KV1)

Pin Size Color Circuit Function Terminal Type ID Option
1 - - - Not Occupied - -
2 0.8 BK 5683 120 VAC Phase A II -
3-5 - - - Not Occupied - -
6 2 RD/WH 2740 Battery Positive Voltage III -
7 0.8 RD 5684 120 VAC Phase B II -
8-10 - - - Not Occupied - -
11 3 BK 650 Ground III -
12 0.35 D-BU 6807 120 VAC Inverter Control I -
