2013 Chevrolet Traverse LTZ, FWDFACTORY OEM SERVICE PROCEDURE

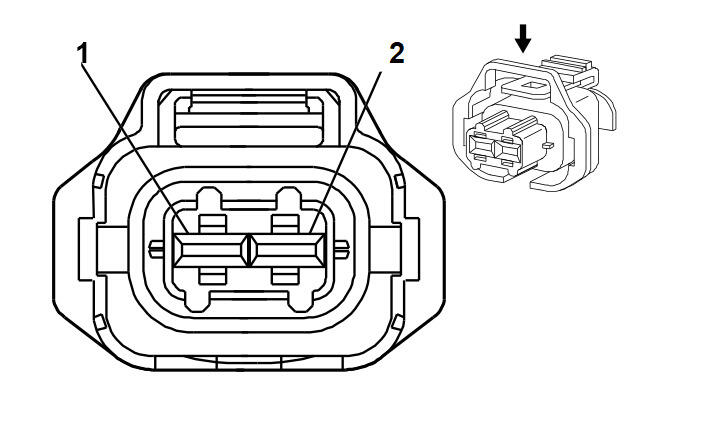

B34 Engine Coolant Temperature Sensor
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | 13576379 | J-35616-35 (VT) | J-38125-561 | 1928498054 | 8 | E | 1 |
B34 Engine Coolant Temperature Sensor
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.5 | YE | 410 | ECT Sensor Signal | I | - |
| 2 | 0.5 | TN | 476 | Low Reference | I | - |
