2013 Chevrolet Traverse LTZ, FWDFACTORY OEM SERVICE PROCEDURE

Front Of Engine Compartment - Components

Front Of Engine Compartment - Components

Items
1:  B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left
2:  B55 Hood Ajar Switch ((BTV)) B55 Hood Ajar Switch (BTV)
3:  G10R Cooling Fan Motor - Right G10R Cooling Fan Motor - Right
4:  B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right
5:  P12A Horn - High Note P12A Horn - High Note
6:  G10L Cooling Fan Motor - Left G10L Cooling Fan Motor - Left
7:  P12B Horn - Low Note P12B Horn - Low Note
8:  G24 Windshield Washer Pump G24 Windshield Washer Pump
9:  B118B Windshield Washer Fluid Level Switch B118B Windshield Washer Fluid Level Switch
10:  G19 Rear Window Washer Pump G19 Rear Window Washer Pump

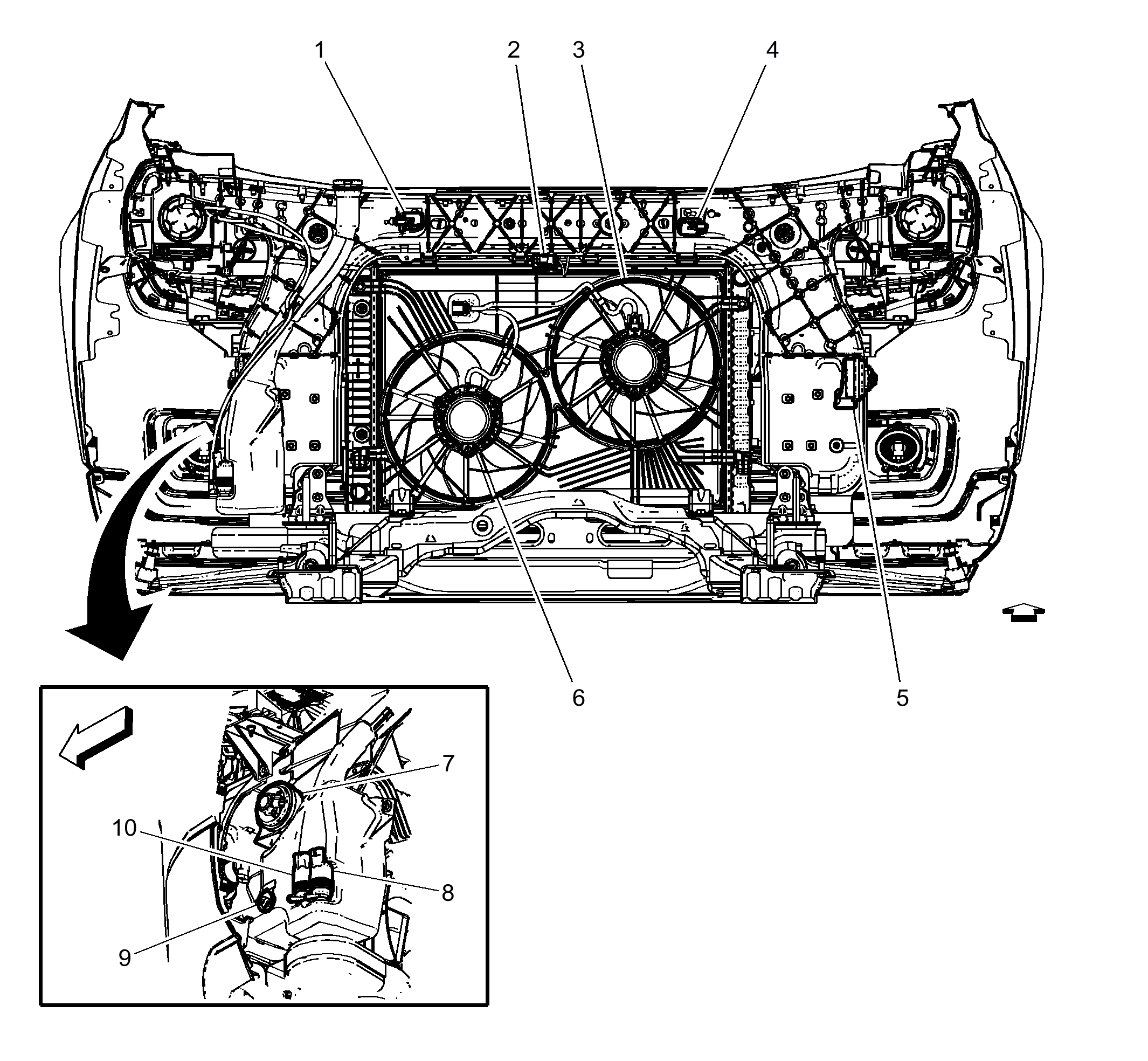

Fig 1: Front Of Engine Compartment Components
GM2899126Courtesy of GENERAL MOTORS COMPANY
