2013 Chevrolet Traverse LTZ, FWDFACTORY OEM SERVICE PROCEDURE

Windshield Washer Nozzle Replacement (Traverse)

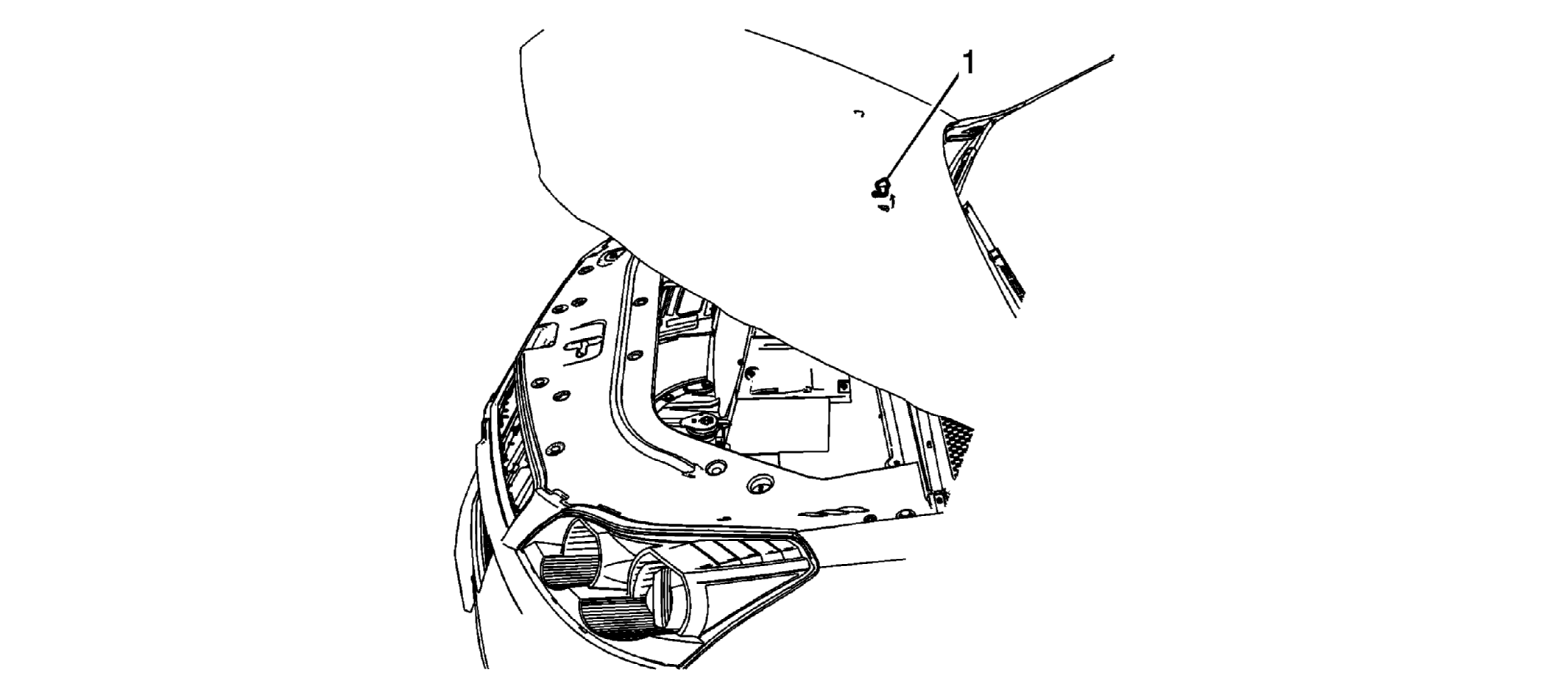

Fig 1: Windshield Washer Nozzle (Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the hood insulator. Refer to Hood Insulator Replacement (Enclave) or Hood Insulator Replacement (Traverse) .
Disconnect the windshield washer hose from both washer nozzles.

Windshield Washer Nozzle (Qty: 2)

Procedure

If equipped with heated washer nozzles, disconnect the electrical connectors.
Pinch the retainers on the underside of the washer nozzles.
Push the nozzles outward from the hood in order to remove.
