2013 Chevrolet Spark LS, Automatic TransFACTORY OEM SERVICE PROCEDURE

Ignition Coil Replacement

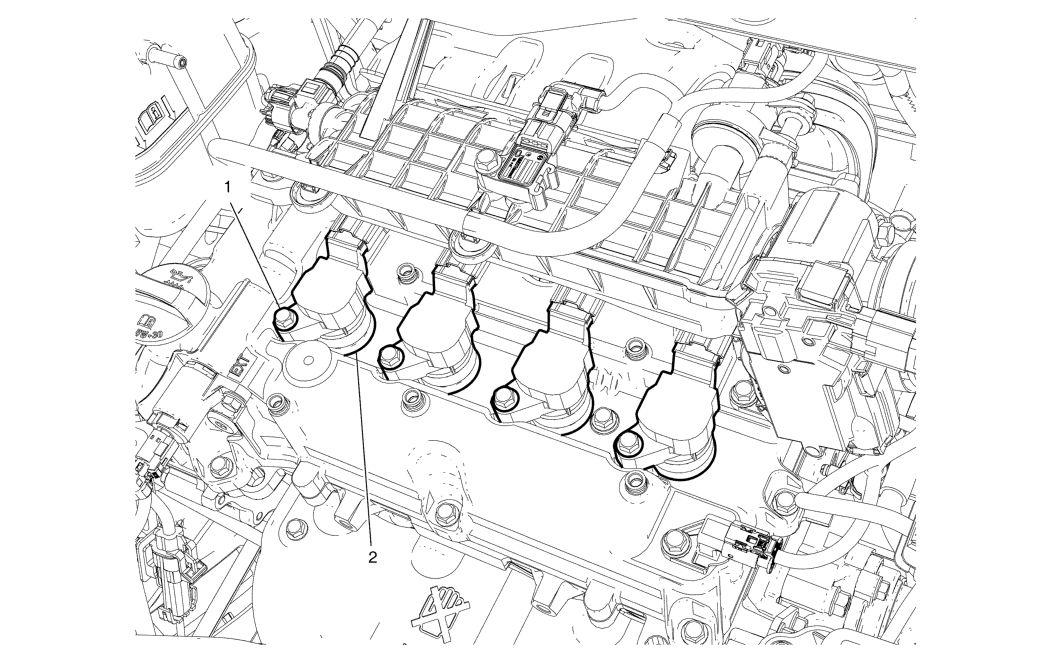

Fig 1: Ignition Coil

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the ignition coil cover. Refer to Ignition Coil Cover Replacement .
Disconnect the 4 ignition coil connectors.

Ignition Coil Cover Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Procedure
Remove the ignition coil bolts (1).
Tighten
10 (89 lb in)

Ignition Coil (Qty: 4)
Procedure
Transfer parts as necessary.
