2013 Chevrolet Spark LS, Automatic TransFACTORY OEM SERVICE PROCEDURE
Assembly Procedure
- Install the fuel tank heat shield. Refer to Fuel Tank Heat Shield Replacement .
- Install the fuel pump. Refer to Fuel Pump Replacement .
- Install the evaporative emission canister. Refer to Evaporative Emission Canister Replacement .

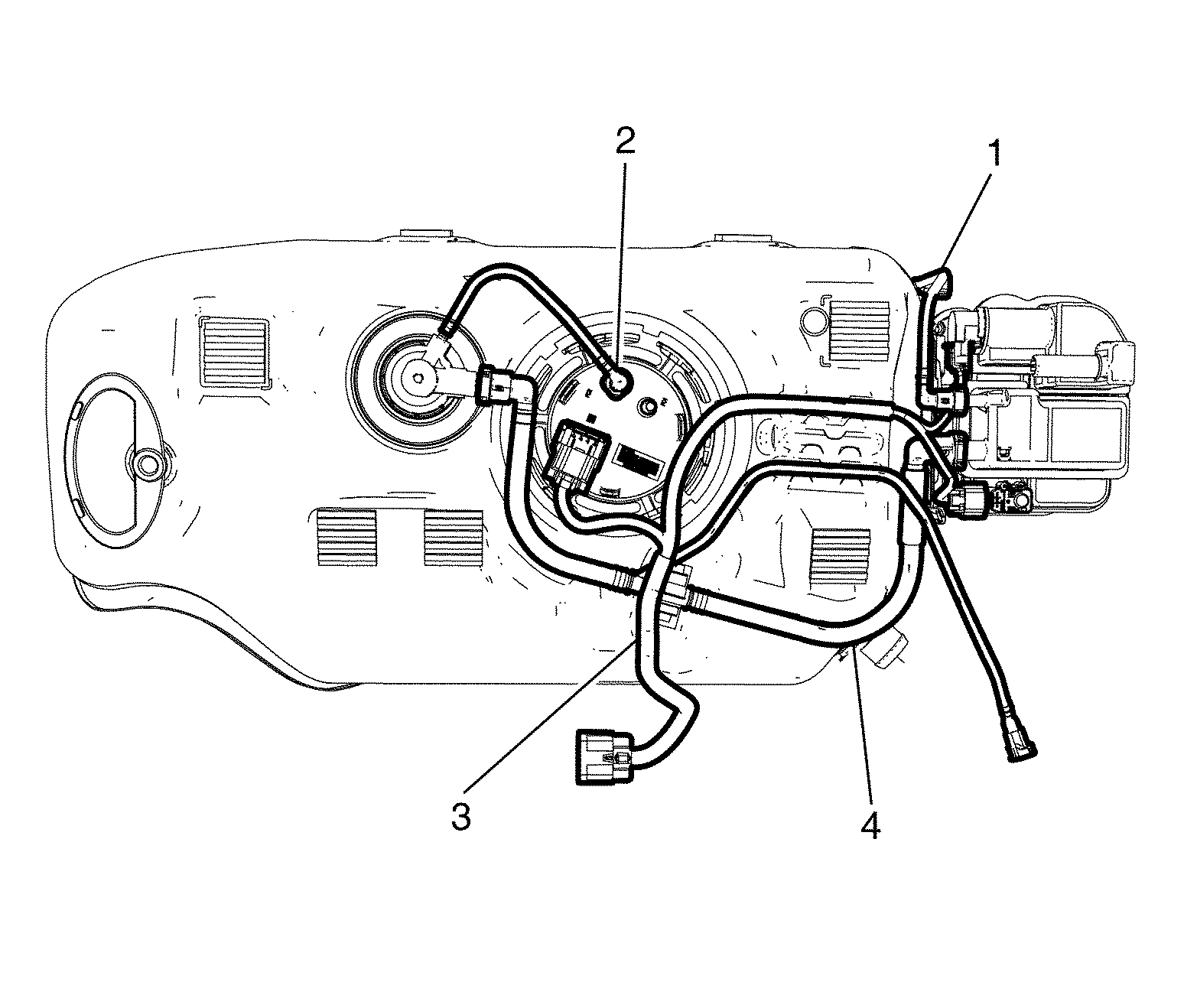

- Install the fuel tank vent pipe (4).
- Install the evaporative emission canister purge pipe (1).
- Connect the fuel tank recirculation pipe connector (2).
- Connect the fuel tank wiring harness (3) electrical connectors to the following:
- Fuel tank pump
- Fuel tank pressure sensor
- Evaporative emission canister solenoid valve
