Fuel Pump Replacement

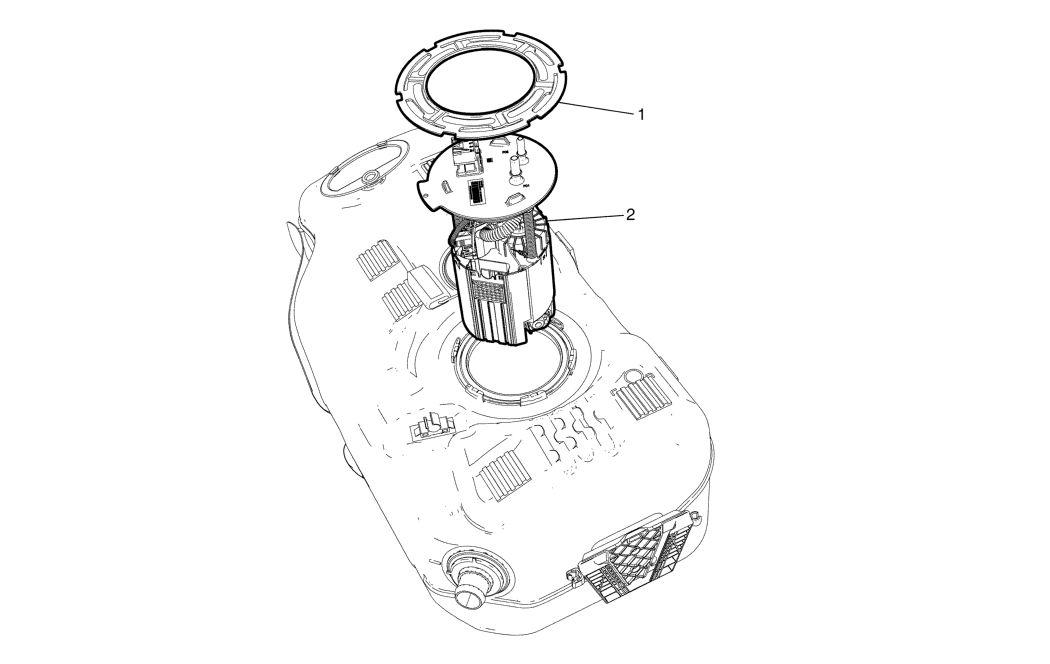

| Callout | Component Name |
|---|---|
|
Preliminary Procedures
|
|
| 1 | Fuel Pump Lock Ring
CAUTION:
Refer to Fastener Caution . Procedure Remove the fuel pump lock ring using J-45747 fuel sending unit wrench. Special Tools J-45747 Fuel Sending Unit Wrench For equivalent regional tools, refer to Special Tools . |
| 2 | Fuel Pump |
