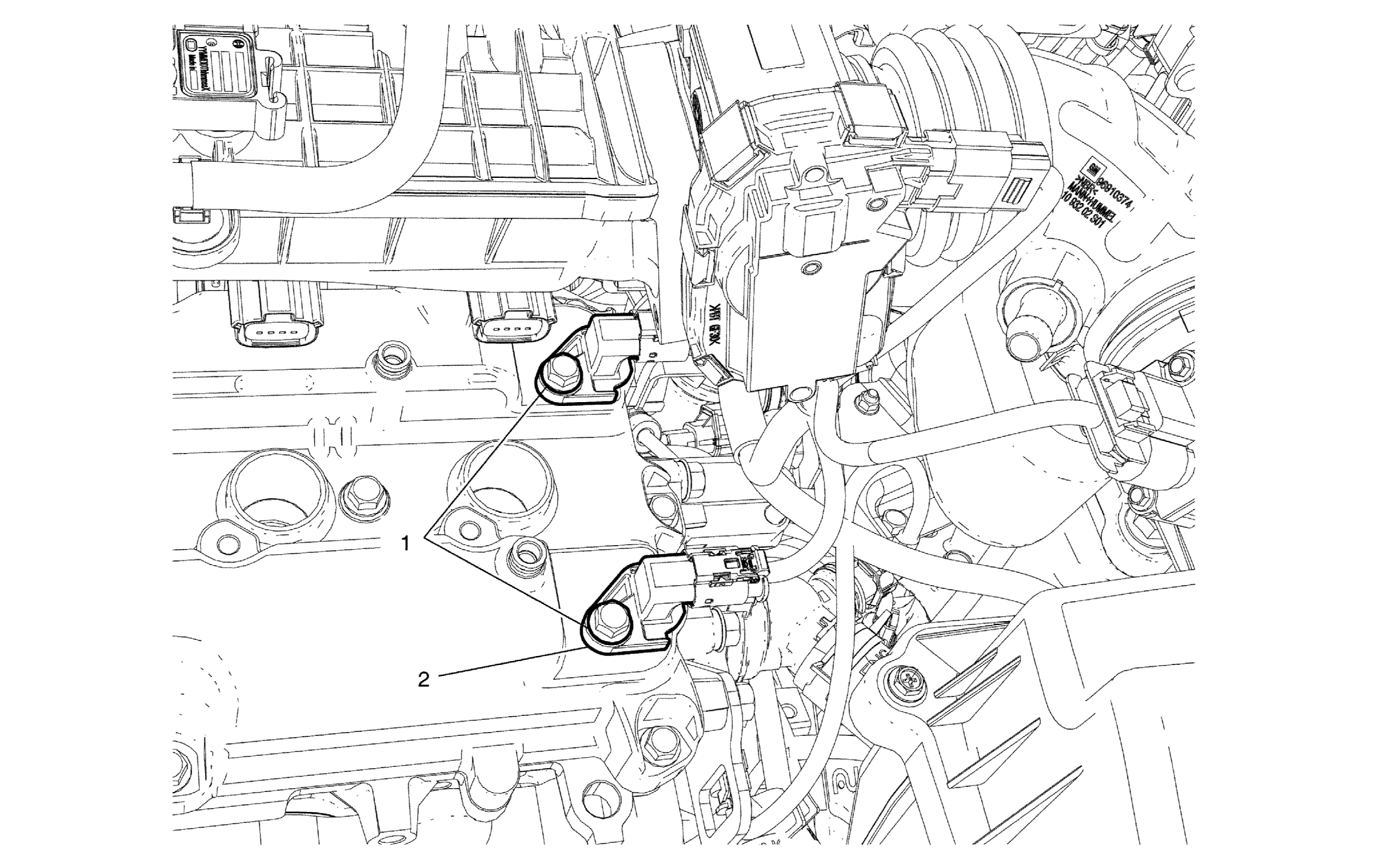

Camshaft Position Sensor Replacement
| Callout | Component Name |
|---|---|
|
Preliminary Procedures
|
|
| 1 | Camshaft Position Sensor Bolt (Qty 2)
CAUTION:
Refer to Fastener Caution . Procedure Remove the camshaft position sensor bolts. Tighten 10 (89 lb in) |
| 2 | Camshaft Position Sensor (Qty 2) |
