2013 Chevrolet Spark LS, Automatic TransFACTORY OEM SERVICE PROCEDURE

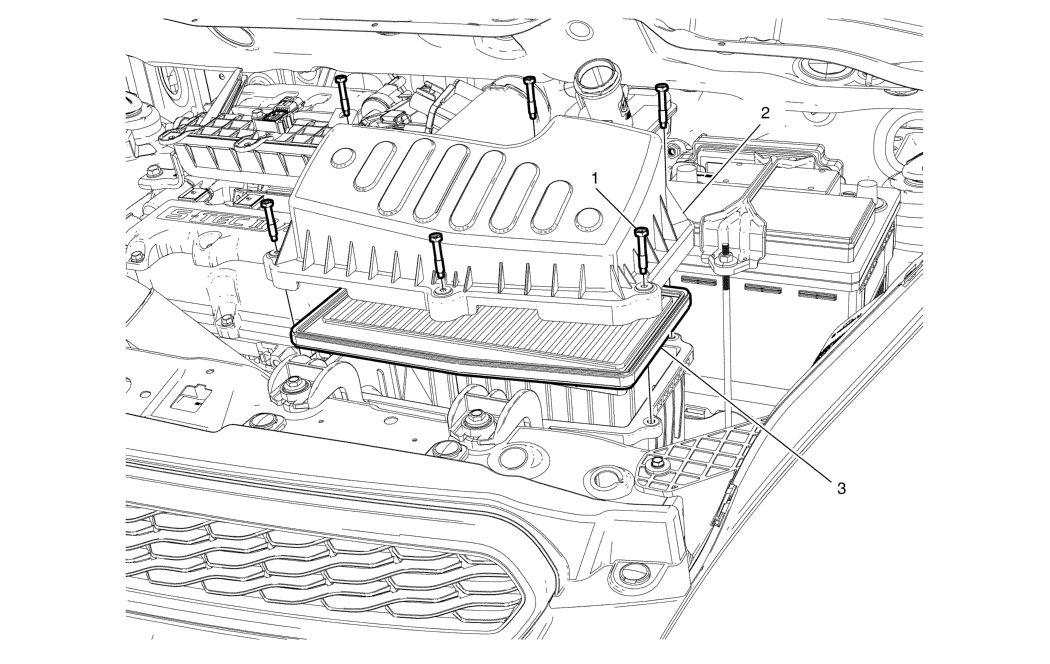

Air Cleaner Element Replacement
Air Cleaner Element Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Open the hood. |
|
| 1 | Air Cleaner Housing Bolt (Qty 6)
CAUTION:
Refer to Fastener Caution . Procedure Remove the air cleaner housing bolts Tighten 2 (17 lb in) |
| 2 | Air Cleaner Upper Housing Procedure Release clip and remove air cleaner upper housing (2). |
| 3 | Air Cleaner Element Procedure Replace air cleaner element (3). |
