2013 Chevrolet Spark LS, Automatic TransFACTORY OEM SERVICE PROCEDURE

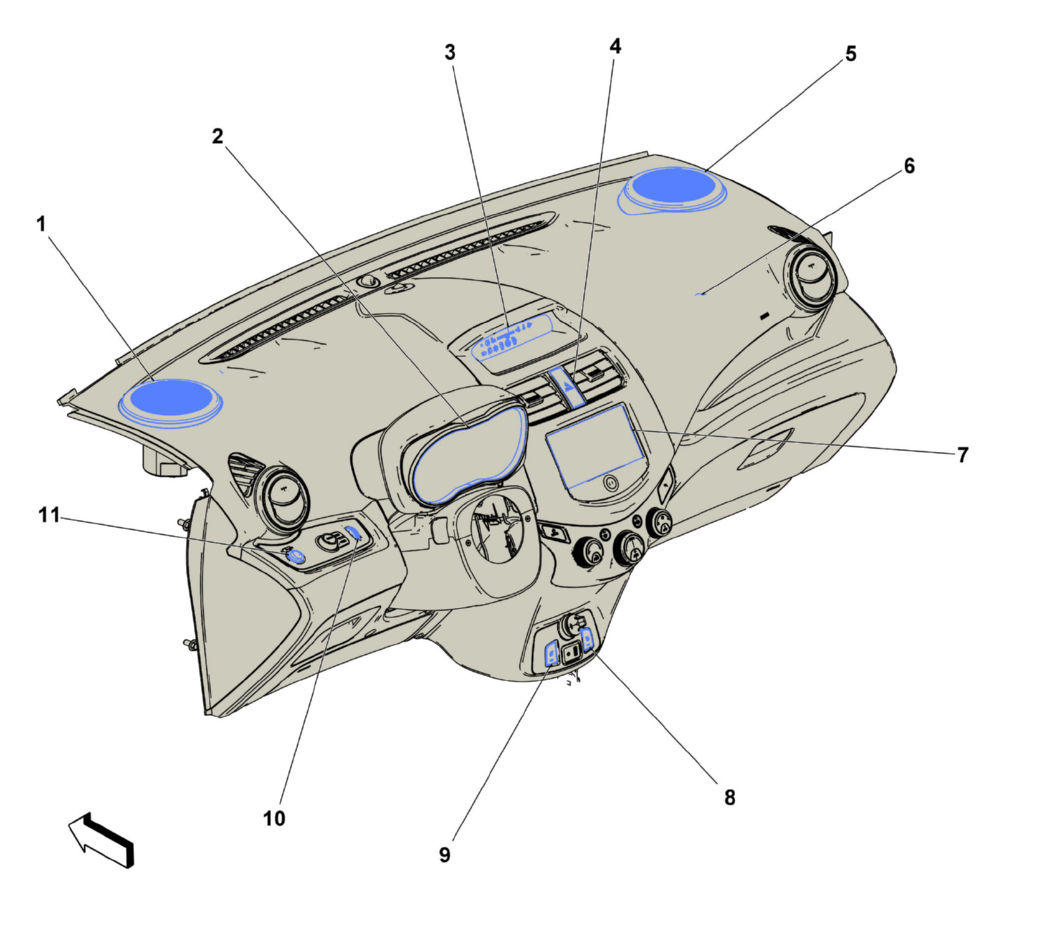

Instrument Panel and Center Console Components
Instrument Panel and Center Console Components
| Component Name | Callout |
|---|---|
| S78 Turn Signal/Multifunction Switch | 1 |
| P16 Instrument Cluster | 2 |
| B104 Sunload Sensor | 3 |
| P17 Info Display Module | 4 |
| S82 Windshield Wiper/Washer Switch | 5 |
| S26 Hazard Warning Switch | 6 |
| A11 Radio | 7 |
| P19W Speaker - Right Instrument Panel | 8 |
| F101 Passenger Instrument Panel Air Bag | 9 |
| X93 Headphone Connector (UV8) | 10 |
| S34 HVAC Controls Switch Assembly | 11 |
| S53 Overdrive Disable Switch | 12 |
| S3 Transmission Shift Lever | 13 |
| P2 Transmission Shift Lever Position Indicator | 14 |
| S32P Seat Heating Switch - Passenger | 15 |
| E32 Cigarette Lighter Receptacle | 16 |
| S32D Seat Heating Switch - Driver | 17 |
| S34 HVAC Controls Switch Assembly | 18 |
| S75 Traction Control Switch | 19 |
| F107 Steering Wheel Air Bag | 20 |
| S70A Steering Wheel Control Switch - Left Lower | 21 |
| X84 Data Link Connector | 22 |
| S106 Mobile Telephone Volume Switch (UV8) | 23 |
| S105 Mobile Telephone Call Switch (UV8) | 24 |
| S52 Outside Rearview Mirror Switch | 25 |
| P19J Speaker - Left Instrument Panel (without UV8) or P27 Mobile Telephone Speaker (UV8) | 26 |
