2013 Chevrolet Sonic RS, Automatic TransFACTORY OEM SERVICE PROCEDURE
Installation Procedure

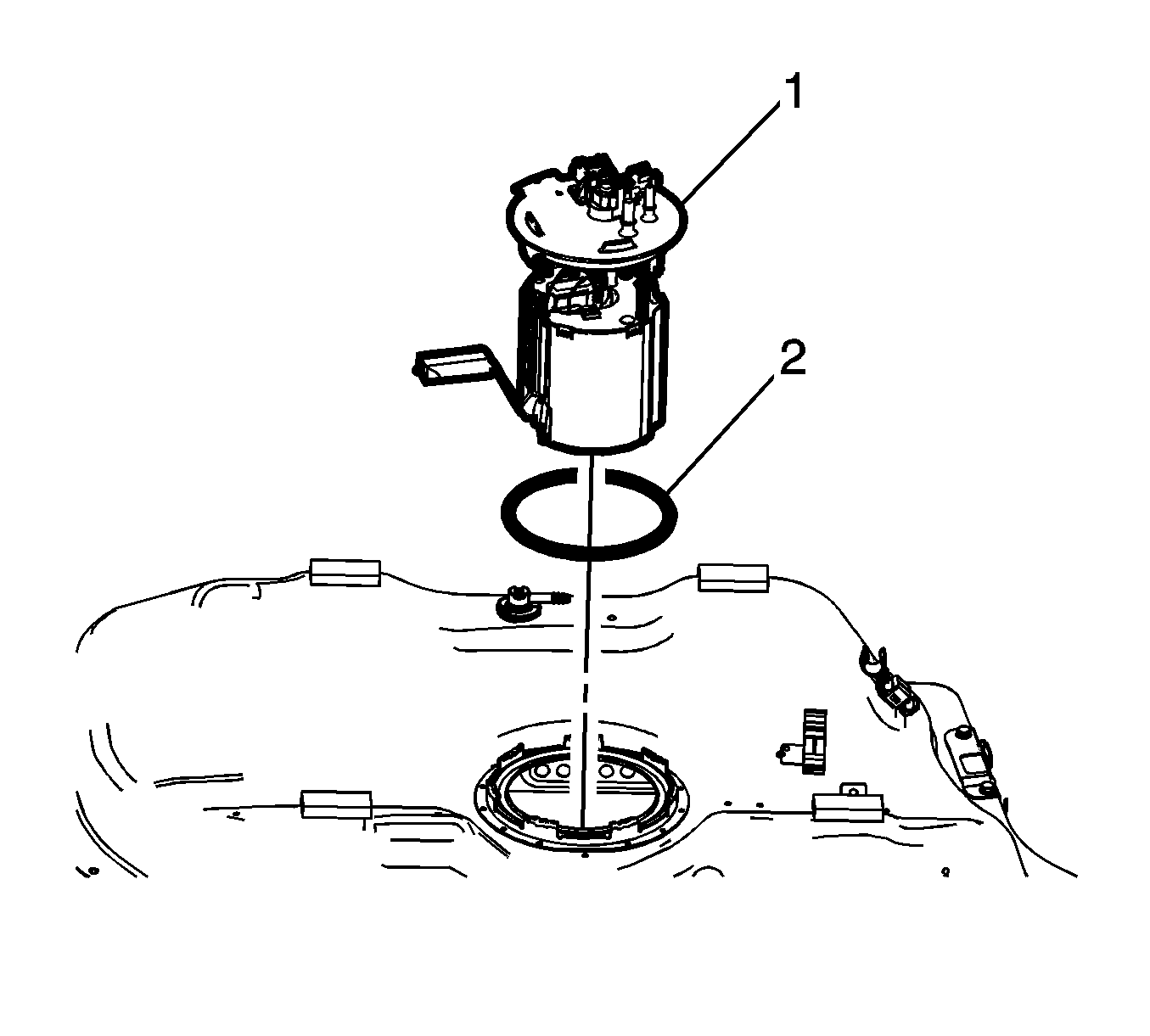

- Install a NEW O-ring (2) and the fuel pump module (1).

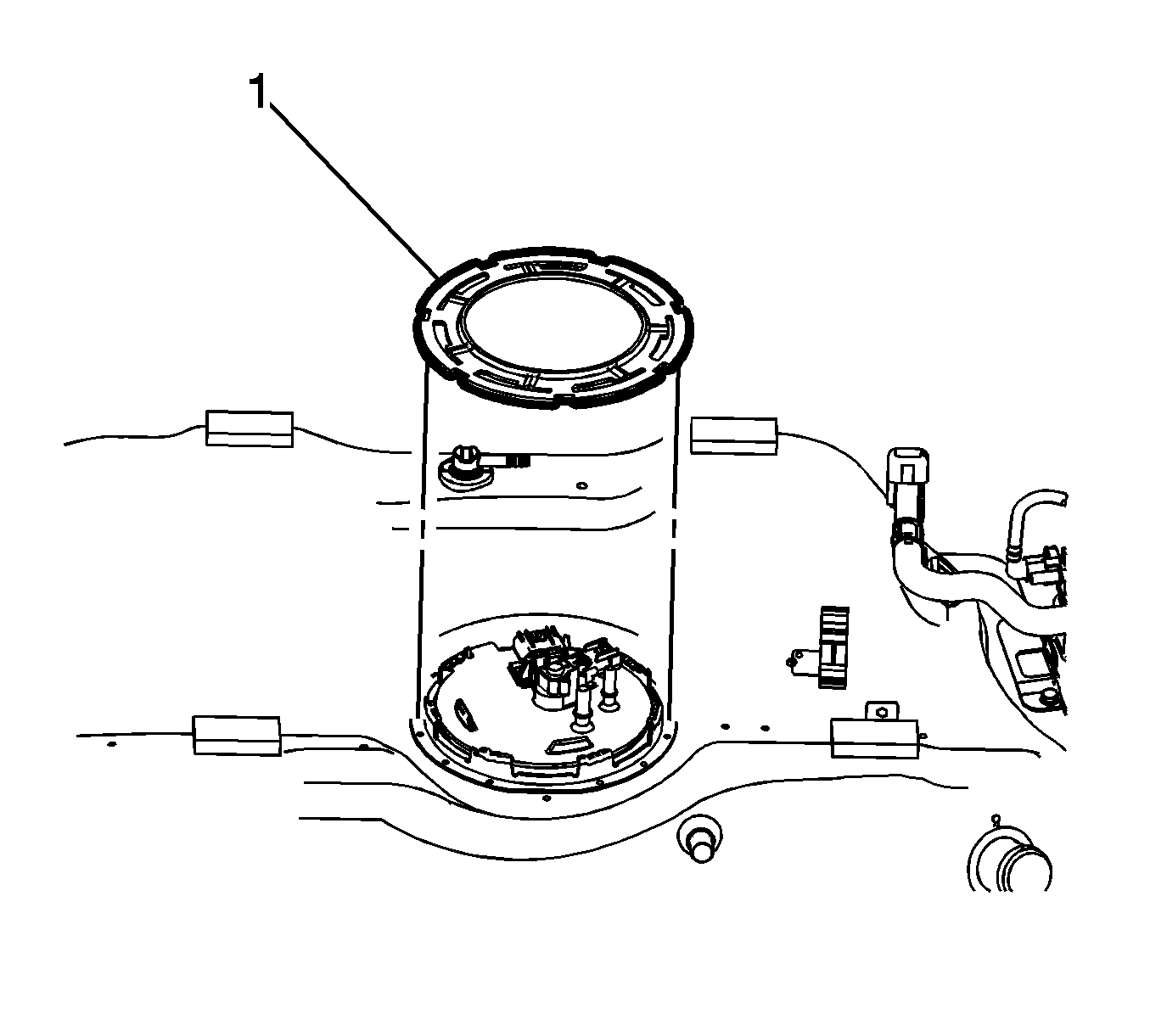

- Using the CH 45722 wrench, install the lock ring (1) by turning clockwise.

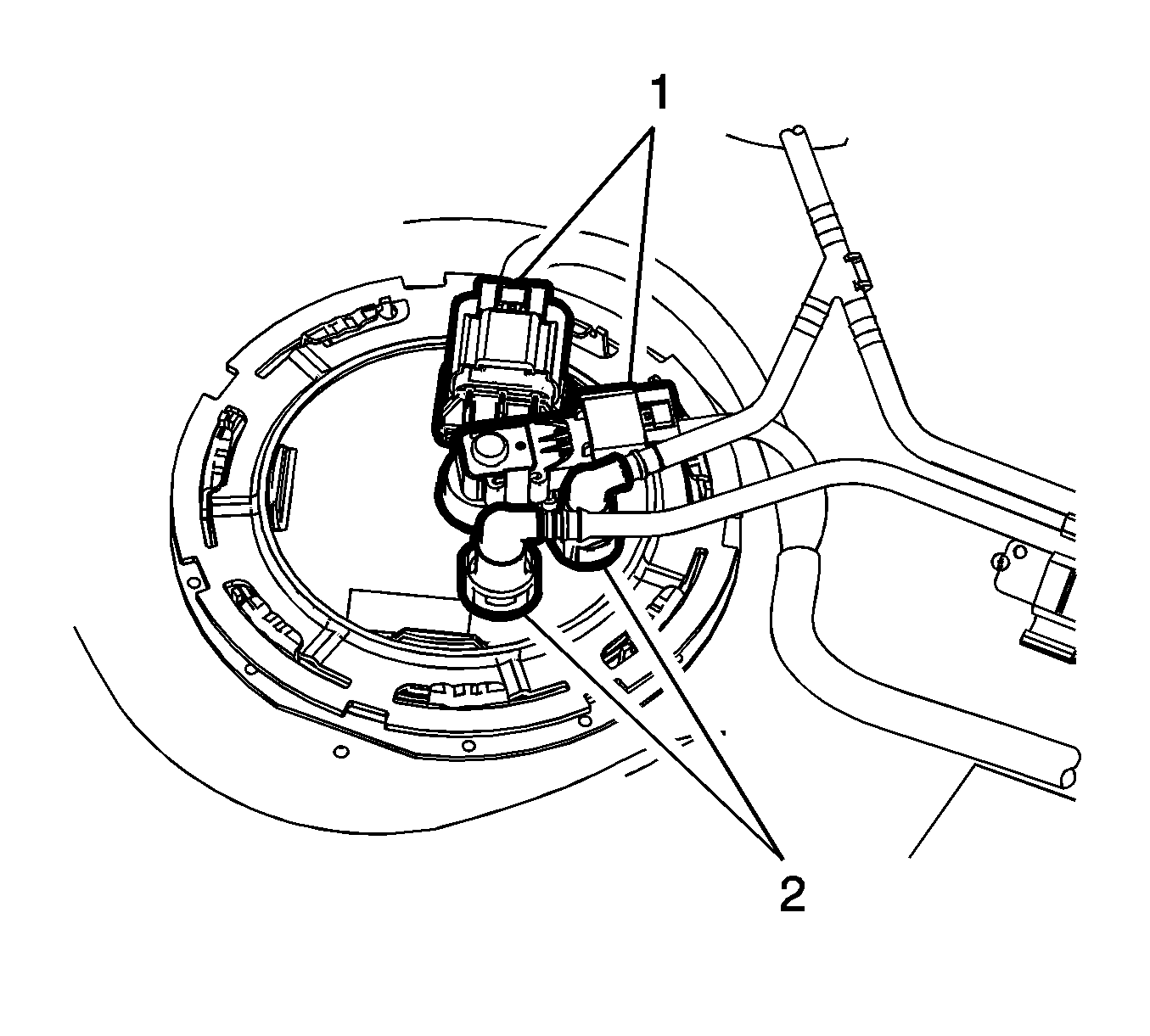

- Connect the electrical connectors (1).
- Connect the evaporative emission and fuel lines (2). Refer to Plastic Collar Quick Connect Fitting Service .
- Install the fuel tank. Refer to Fuel Tank Replacement .
