2013 Chevrolet Silverado 2500 HD LT, 2D Cab Chassis, 6.6L Eng VIN 8, RWDFACTORY OEM SERVICE PROCEDURE

Body Control Module Bracket Replacement

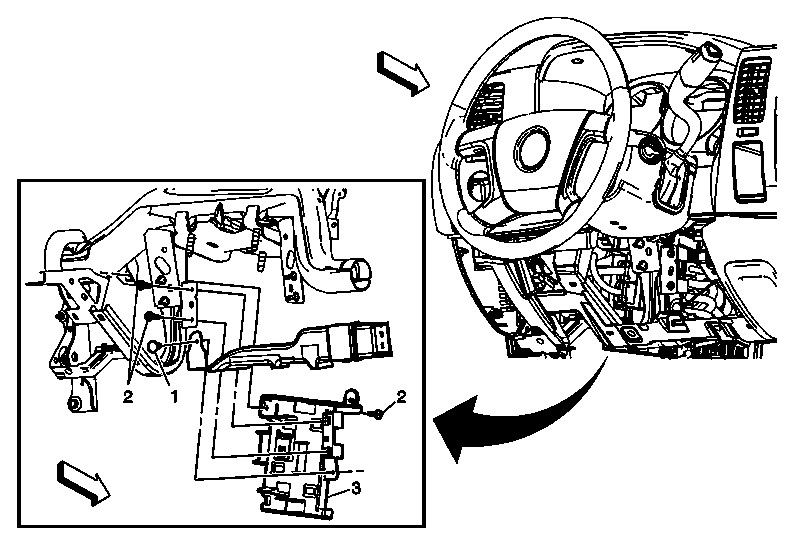

Fig 1: Body Control Module Bracket
GM1809306Courtesy of GENERAL MOTORS COMPANY
Body Control Module Bracket Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the knee bolster panel. Refer to Knee Bolster Replacement (Without RPO SLT) , Knee Bolster Replacement (With RPO SLT) .
  2. Remove the instrument panel driver knee bolster deflector. Refer to Instrument Panel Driver Knee Bolster Deflector Replacement (Without RPO SLT) , Instrument Panel Driver Knee Bolster Deflector Replacement (With RPO SLT) .
1 Front Floor Heater Duct Retainer
2 Body Control Module Bracket Screws (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
3 Body Control Module Bracket Assembly
