2013 Chevrolet Silverado 2500 4WD V8-6.0L (CNG)FACTORY OEM SERVICE PROCEDURE
Engine Speed Power Take-Off Control Module Scan Tool Information
Engine Speed Power Take-Off Control Module Scan Tool Information

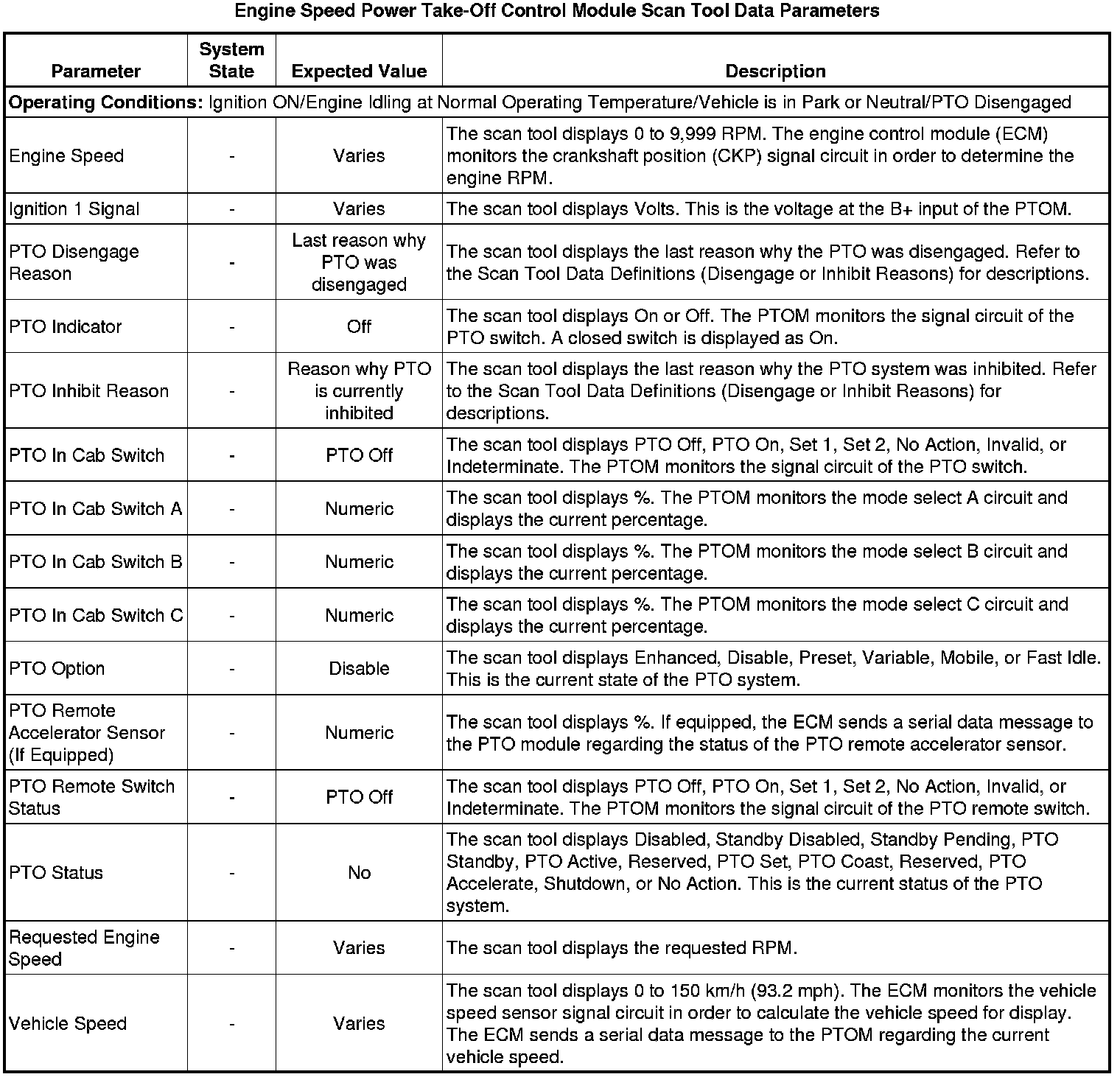

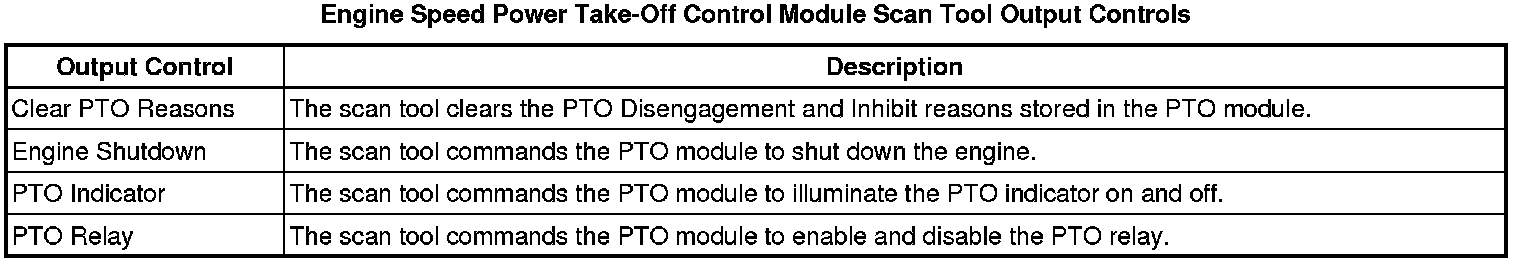

The scan tool data lists contain all of the power take-off (PTO) related parameters that are available on the scan tool. The parameters in the list are arranged in alphabetical order. The data list column indicates the location of the parameter within the scan tool menu selections.
Use the scan tool data lists as directed by a diagnostic table or in order to supplement the diagnostic procedures. Begin all of the diagnostic procedures with Diagnostic System Check - Vehicle.
Use the scan tool data lists only after the following is determined:
* There is no published DTC procedure or published symptom procedure for the customer concern.
* The DTC or symptom procedure indicated by the diagnostic system check does not resolve the customer concern.
