2013 Chevrolet Silverado 2500 4WD V8-6.0L (CNG)FACTORY OEM SERVICE PROCEDURE
Engine Control Module (ECM) X2

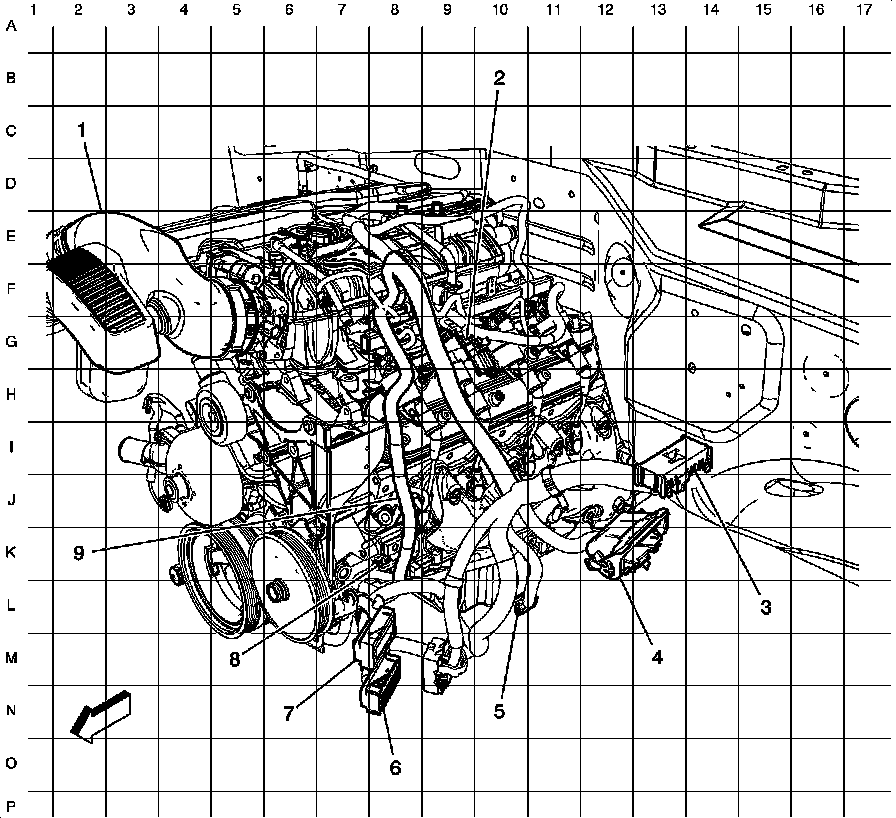

Ground Views
G102 (4.8L/5.3L/6.0L/6.2L)
1 - Air Intake Duct
2 - X111
3 - Fuse Block - Underhood X2
4 - X109
5 - X110 (NQF/NQG/NQH)
6 - Engine Control Module (ECM) X2
7 - Engine Control Module (ECM) X1
8 - G102
9 - J105
