2013 Chevrolet Malibu L4-2.4L HybridFACTORY OEM SERVICE PROCEDURE
Circuit Protection - Fuses
Circuit Protection - Fuses
Special Tools
EL-39200 - Digital Multimeter (DMM)
For equivalent regional tools, refer to Special Tools Tools and Equipment.

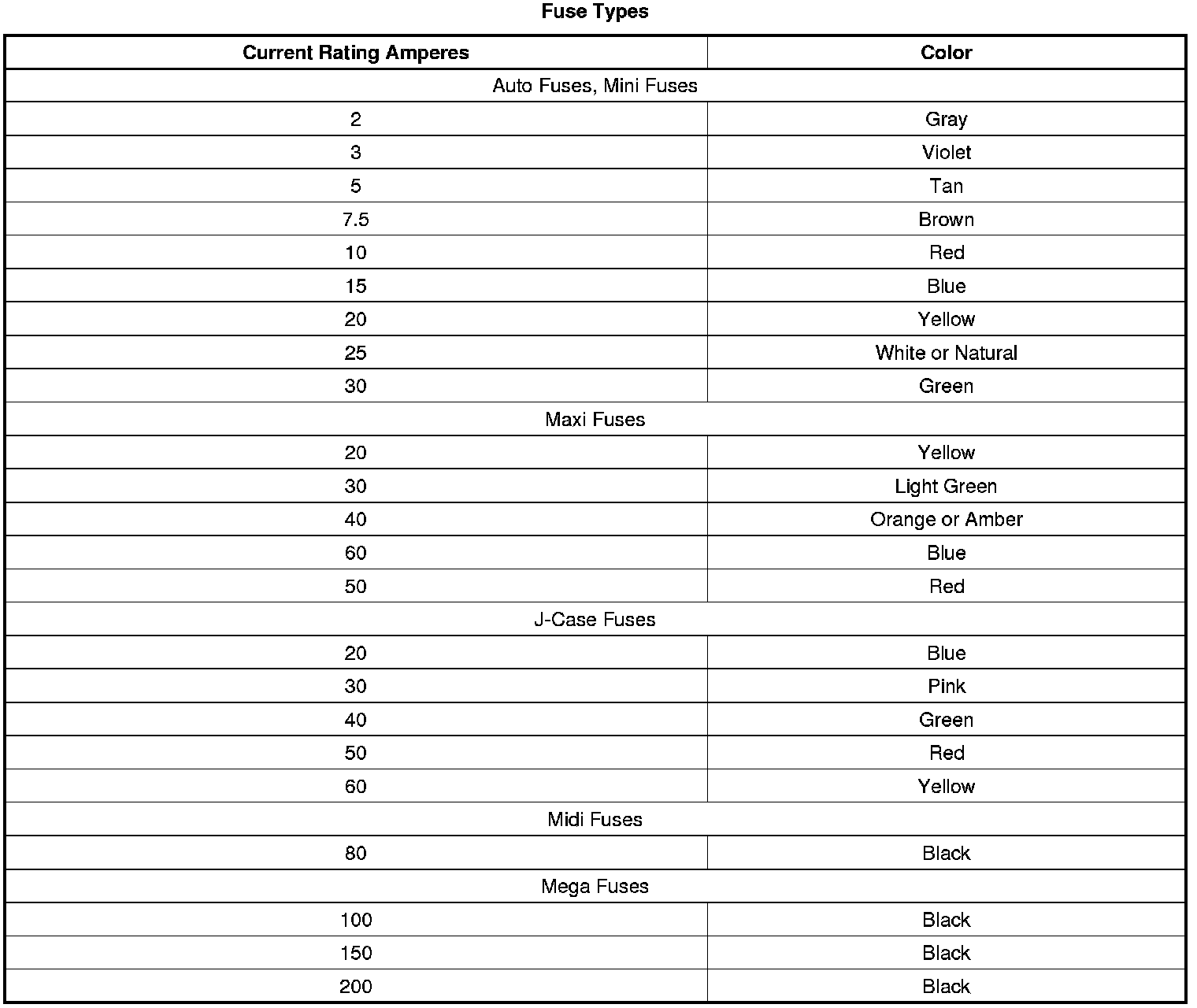

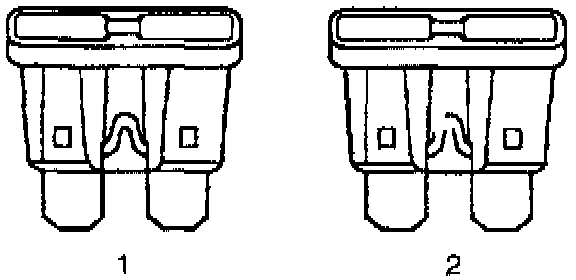

The fuse is the most common method of an automotive wiring circuit protection. Whenever there is an excessive amount of current flowing through a circuit the fusible element will melt and create an open or incomplete circuit. Fuses are a one time protection device and must be replaced each time the circuit is overloaded. To determine if a fuse is open, remove the suspected fuse and examine if the element in the fuse is broken (2). If not broken (1), also check for continuity using a Digital Multimeter (DMM) or a continuity tester. If the element is broken or continuity is suspect, replace the fuse with one of equal current rating.
