2013 Chevrolet Malibu L4-2.4L HybridFACTORY OEM SERVICE PROCEDURE
Hybrid Drive Systems: Locations
Hybrid Controls Component Views

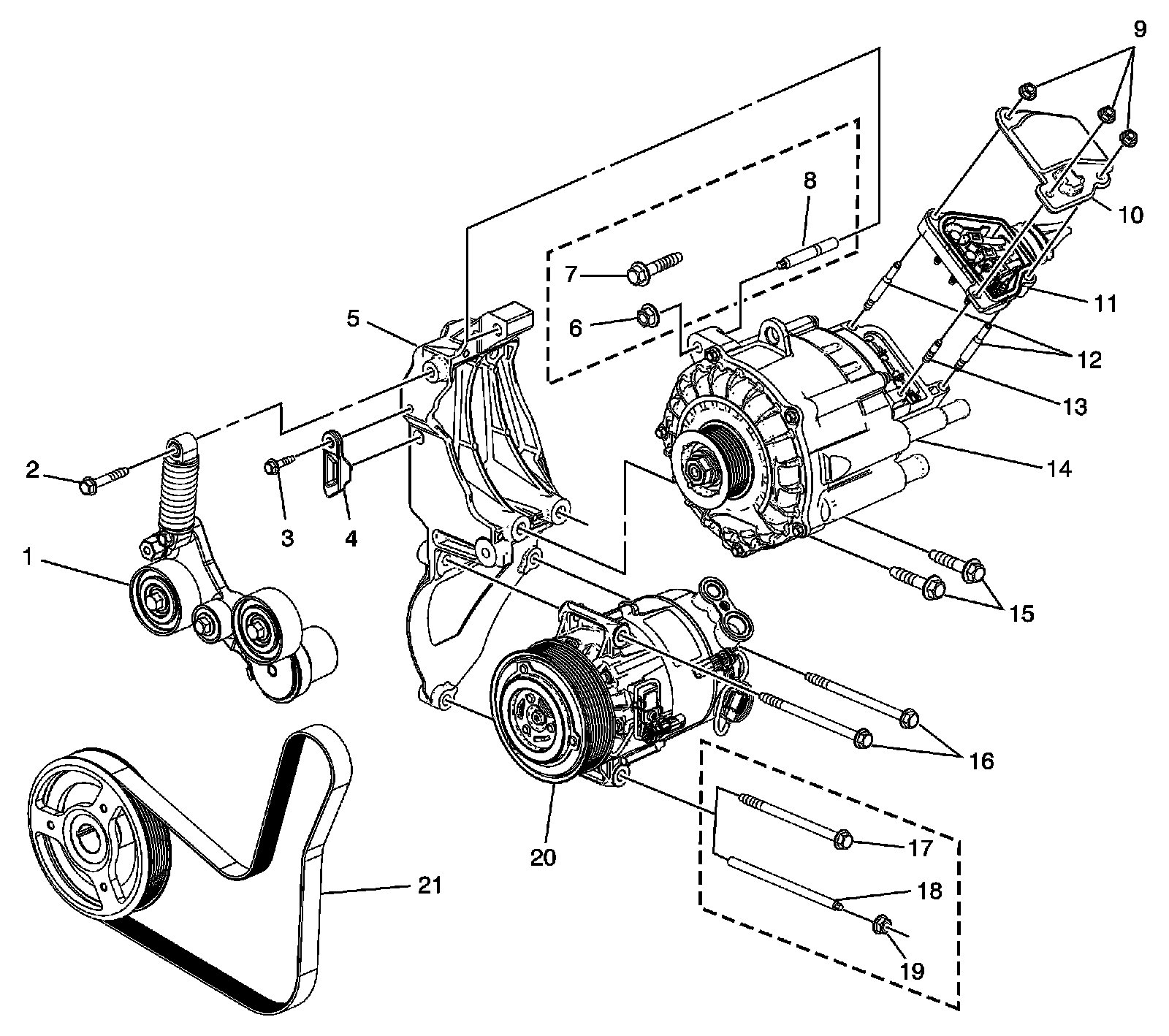

Starter Generator, Drive Motor Tensioner, Drive Motor Battery Cable, and Components
1 - Drive Belt Tensioner Assembly
2 - Drive Belt Tensioner Bolt
3 - Drive Belt Tensioner Stop Bolt
4 - Tensioner Stop
5 - Generator and A/C Compressor Bracket
6 - Starter Generator Nut - Production
7 - Starter Generator Bolt - Service
8 - Starter Generator Stud - Production
9 - Drive Motor Generator Battery Cable Cover Nuts
10 - Drive Motor Generator Battery Cable Cover
11 - Drive Motor Generator Battery Cable
12 - Starter Generator Stud - Long
13 - Starter Generator Stud - Short
14 - Starter Generator
15 - Starter Generator Bolt
16 - A/C Compressor Bolts
17 - A/C Compressor Bolt - Service
18 - A/C Compressor Stud - Production
19 - A/C Compressor Nut - Production
20 - A/C Compressor
21 - Generator and A/C Compressor Belt
