2013 Chevrolet Malibu L4-2.4L HybridFACTORY OEM SERVICE PROCEDURE

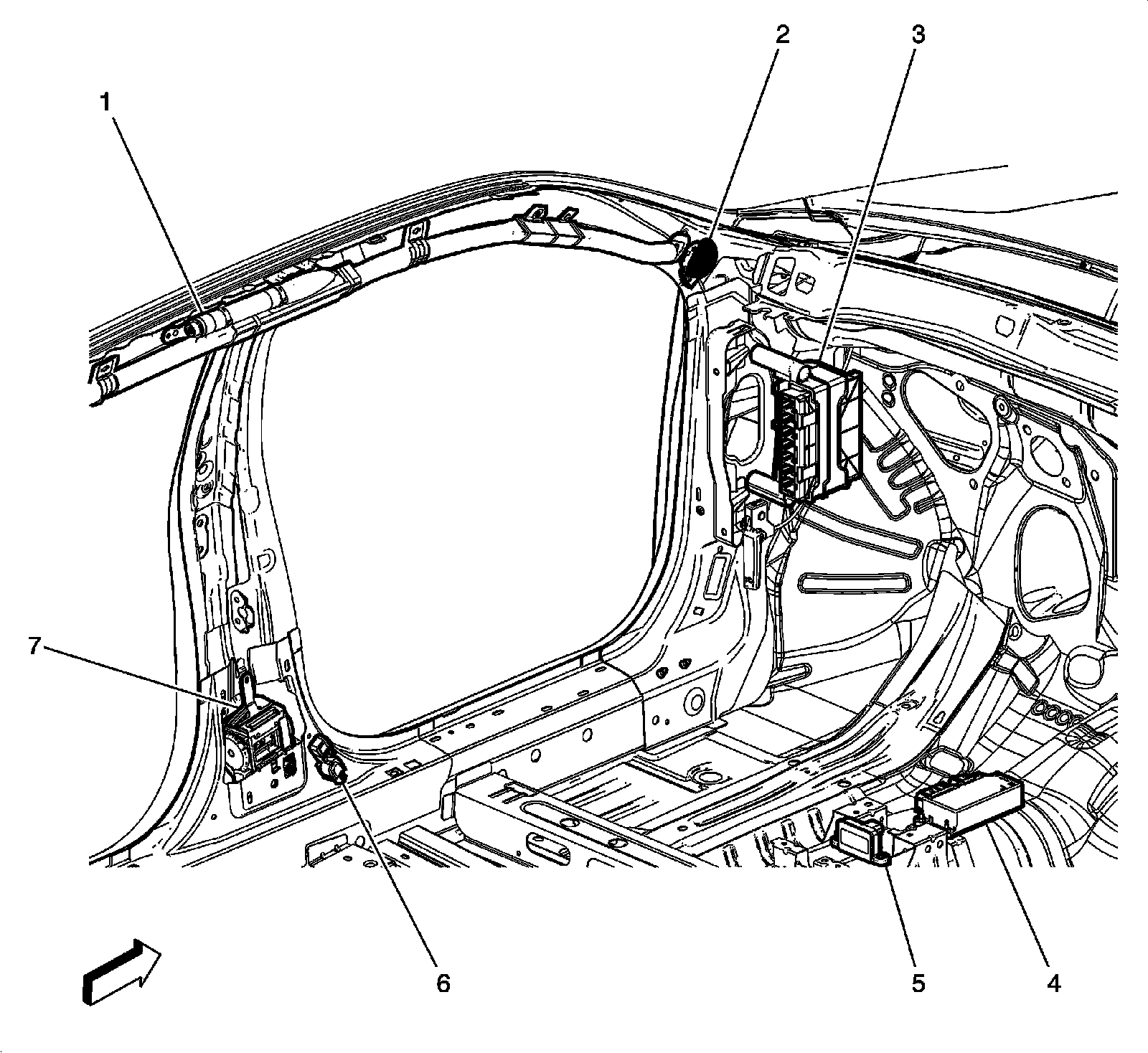

Left Front of Passenger Compartment
Passenger Compartment/Roof Component Views
Left Front of Passenger Compartment
1 - F105L Roof Rail Air Bag - Left
2 - P19H Speaker - Left Front Tweeter
3 - K9 Body Control Module
4 - K36 Inflatable Restraint Sensing and Diagnostic Module
5 - B119 Multi-axis Acceleration Sensor
6 - B63LM Side Impact Sensor - Left Middle
7 - F112D Seat Belt Retractor Pretensioner - Driver
