2013 Chevrolet Impala LTZFACTORY OEM SERVICE PROCEDURE
Installation Procedure

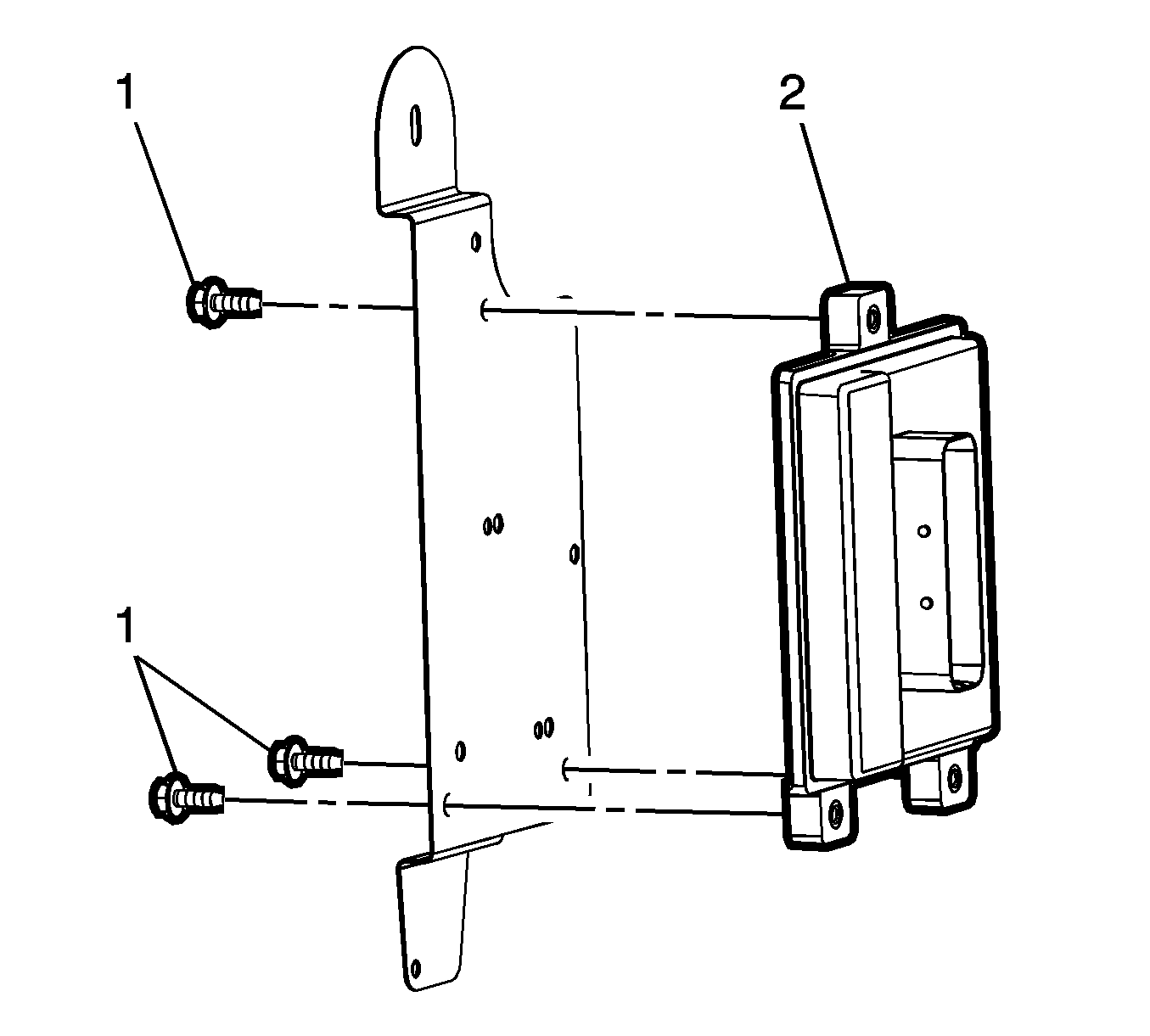

- Install the fuel pump flow control module (2).
- Install the fuel pump flow control module bolts (1) and tighten to 6.5 N.m (58 lb in).

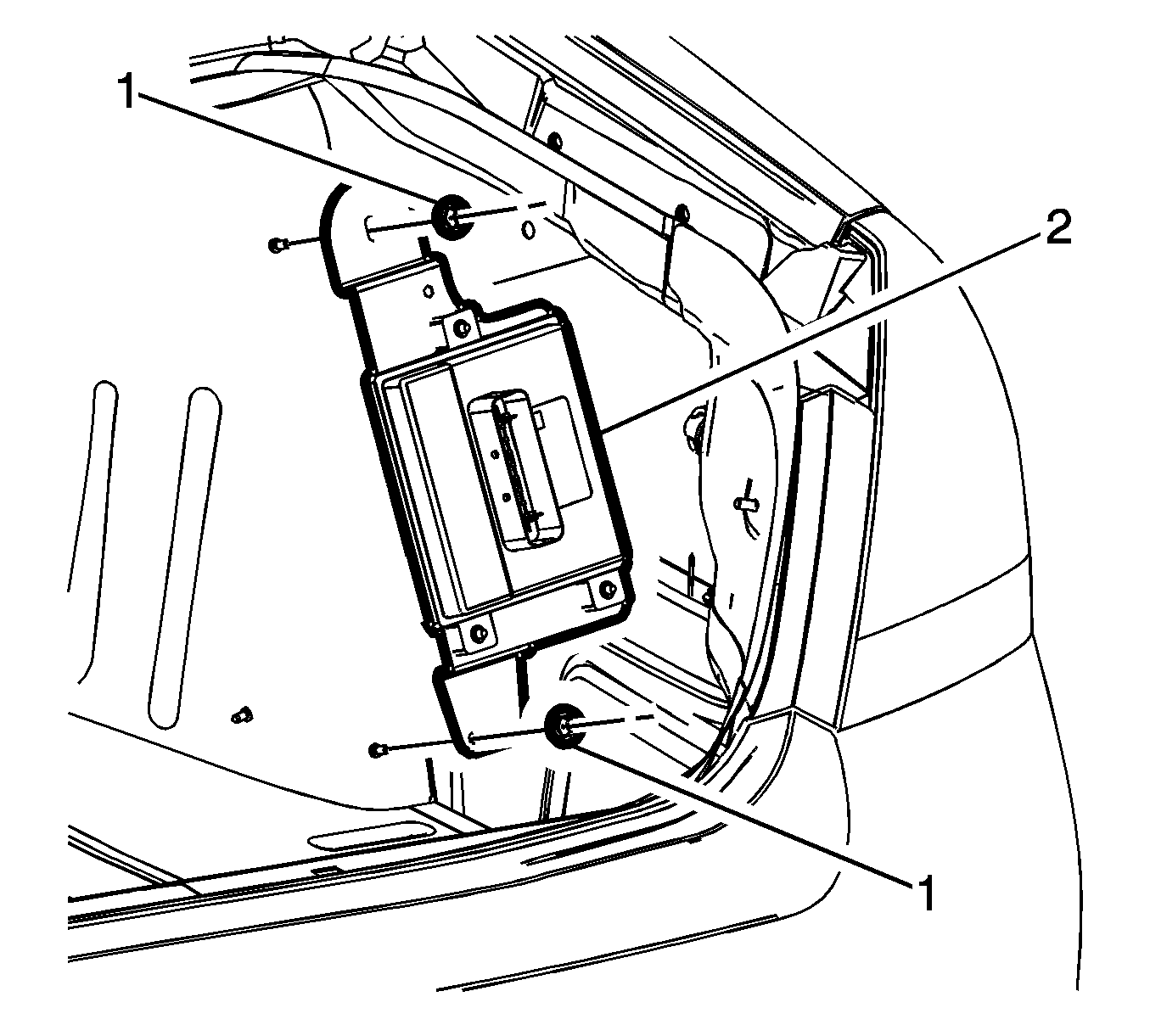

- Install the fuel pump flow control module and bracket (2).
- Install the fuel pump flow control module bracket nuts (1) and tighten to 5 N.m (44 lb in).
- Connect the electrical connector.
- Install the rear compartment side trim panel right side. Refer to Rear Compartment Side Trim Replacement - Right Side
- If replacing, reprogram the module. Refer to Control Module References
CAUTION:
Refer to Fastener Caution .
