2013 Chevrolet Impala LTZFACTORY OEM SERVICE PROCEDURE
Engine Coolant Temperature Sensor Replacement
Engine Coolant Temperature Sensor Replacement

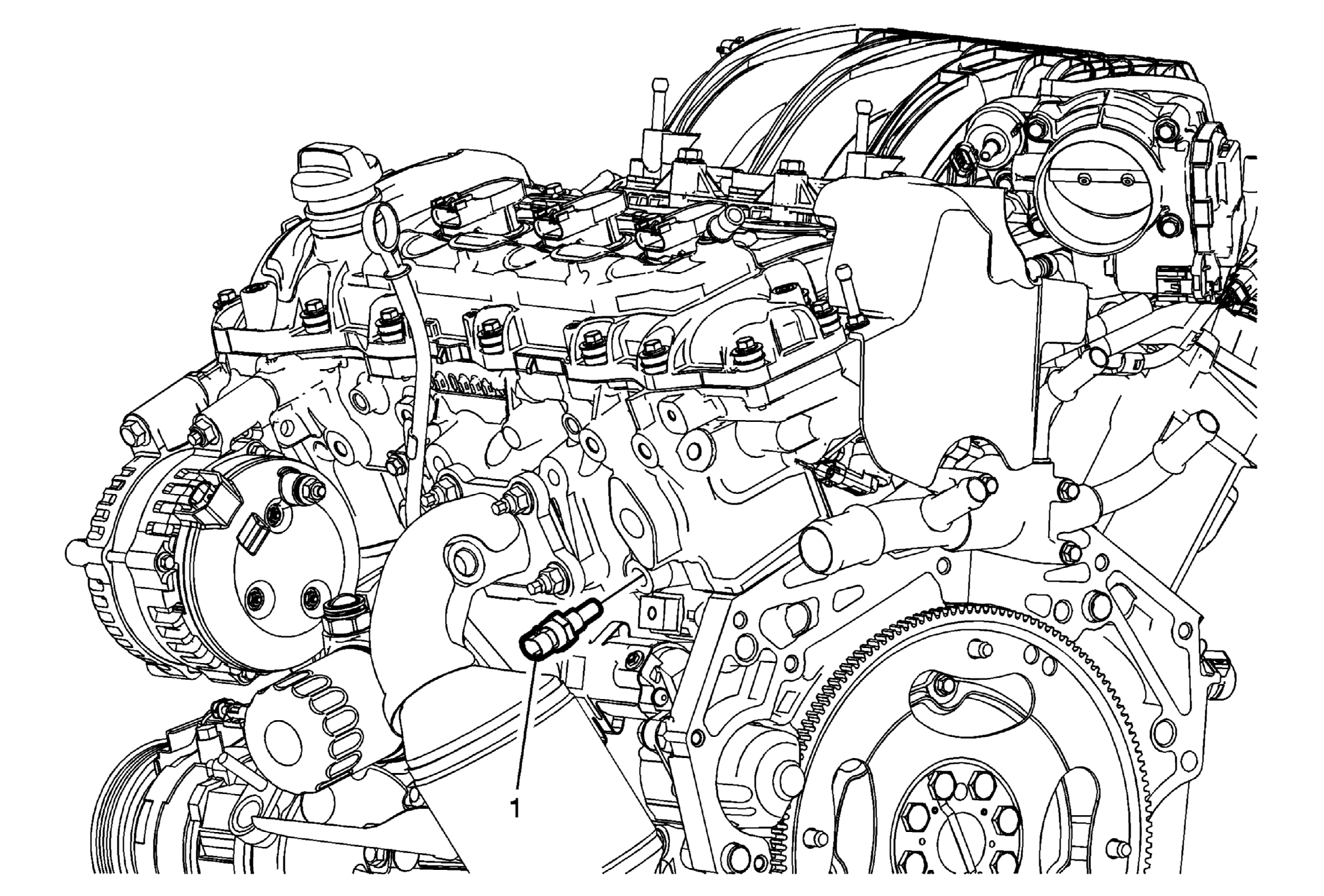

| Callout | Component Name |
|---|---|
| Preliminary Procedure Partially drain the cooling system. Refer to Cooling System Draining and Filling . |
|
| 1 | Engine Coolant Temperature Sensor
CAUTION:
Refer to Fastener Caution . Procedure Disconnect the ECT sensor harness connector. Tighten 20 N.m (14.7 lb ft) |
