2013 Chevrolet Impala LTZFACTORY OEM SERVICE PROCEDURE

Engine Control Module Replacement

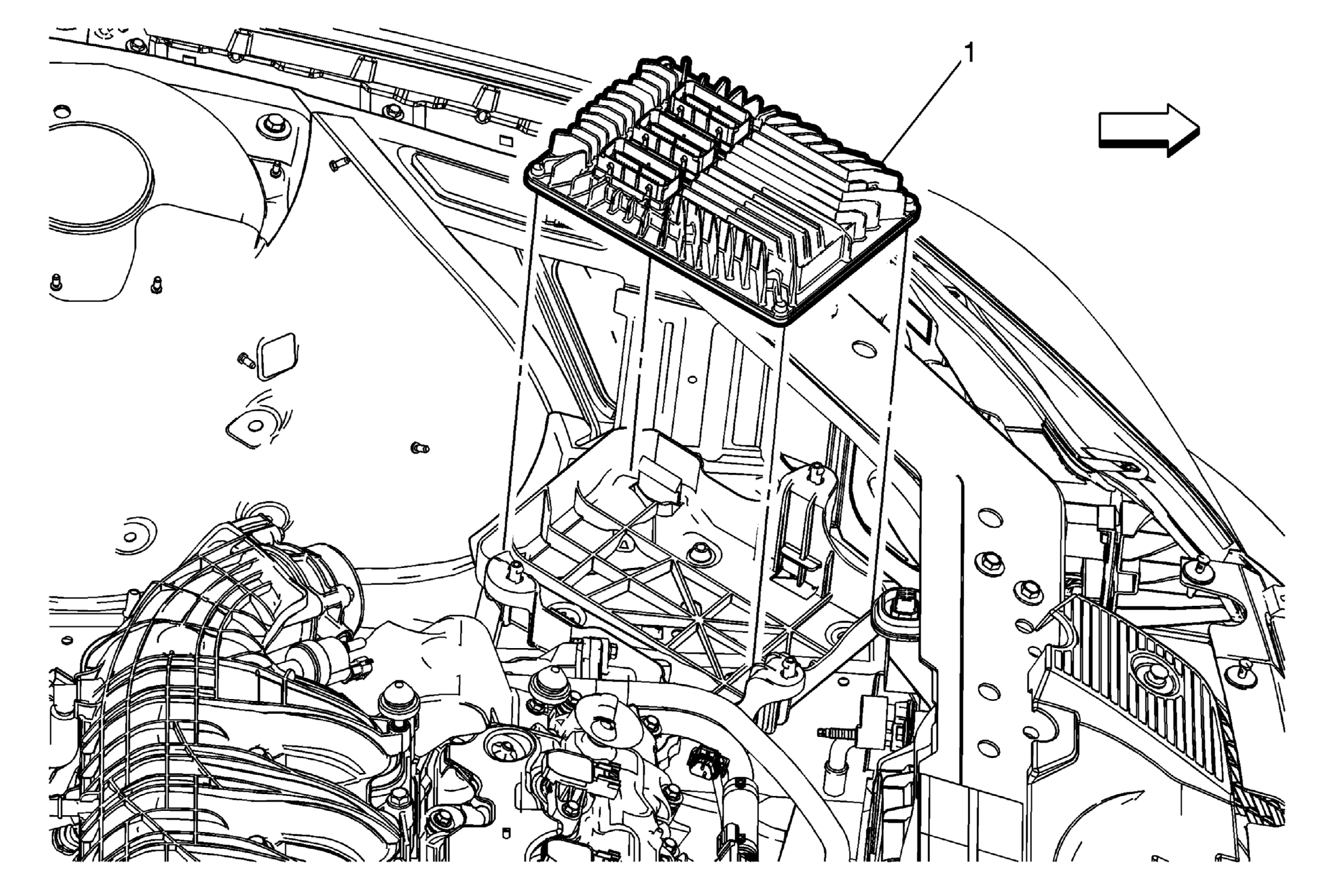

Fig 1: Engine Control Module
GM2640759Courtesy of GENERAL MOTORS COMPANY
Engine Control Module Replacement

Callout Component Name

Preliminary Procedure

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement
1 Electronic Control Module
WARNING:

Refer to Safety Glasses Warning .
