2013 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE
Communication Interface Module Bracket Replacement
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

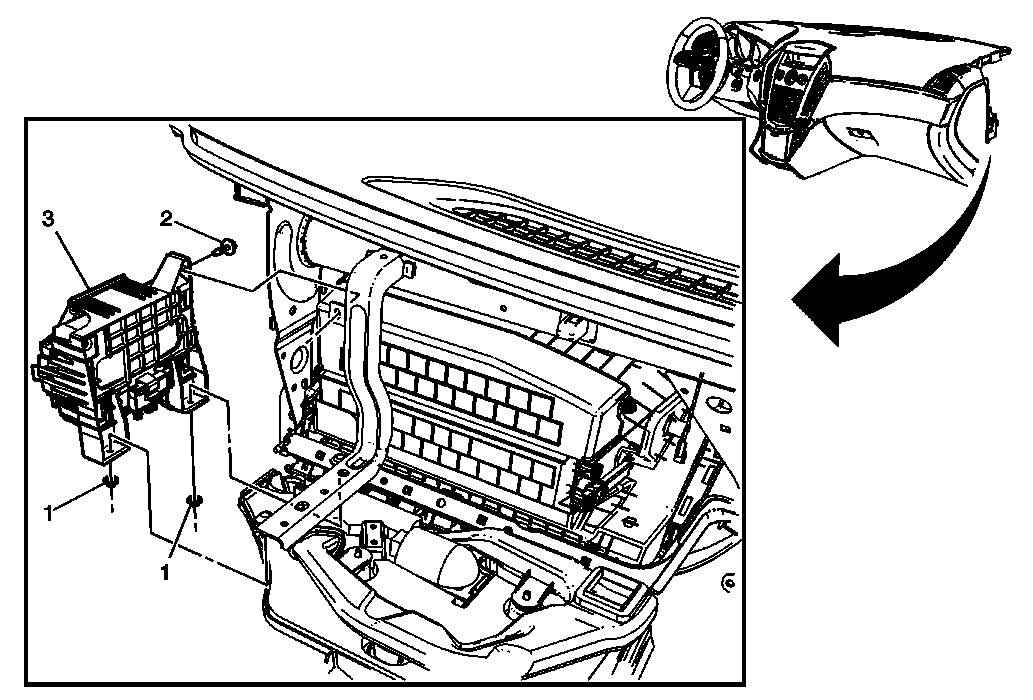

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement |
|
| 1 | Communication Interface Module Bracket Nut (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 9 N.m (80 lb in) |
| 2 | Communication Interface Module Bracket Bolt
CAUTION:
Refer to Fastener Caution
.
Tighten: 2.5 N.m (22 lb in) |
| 3 | Communication Interface Module Bracket Procedure
|
