2013 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE

Accelerator Pedal Position Sensor Replacement

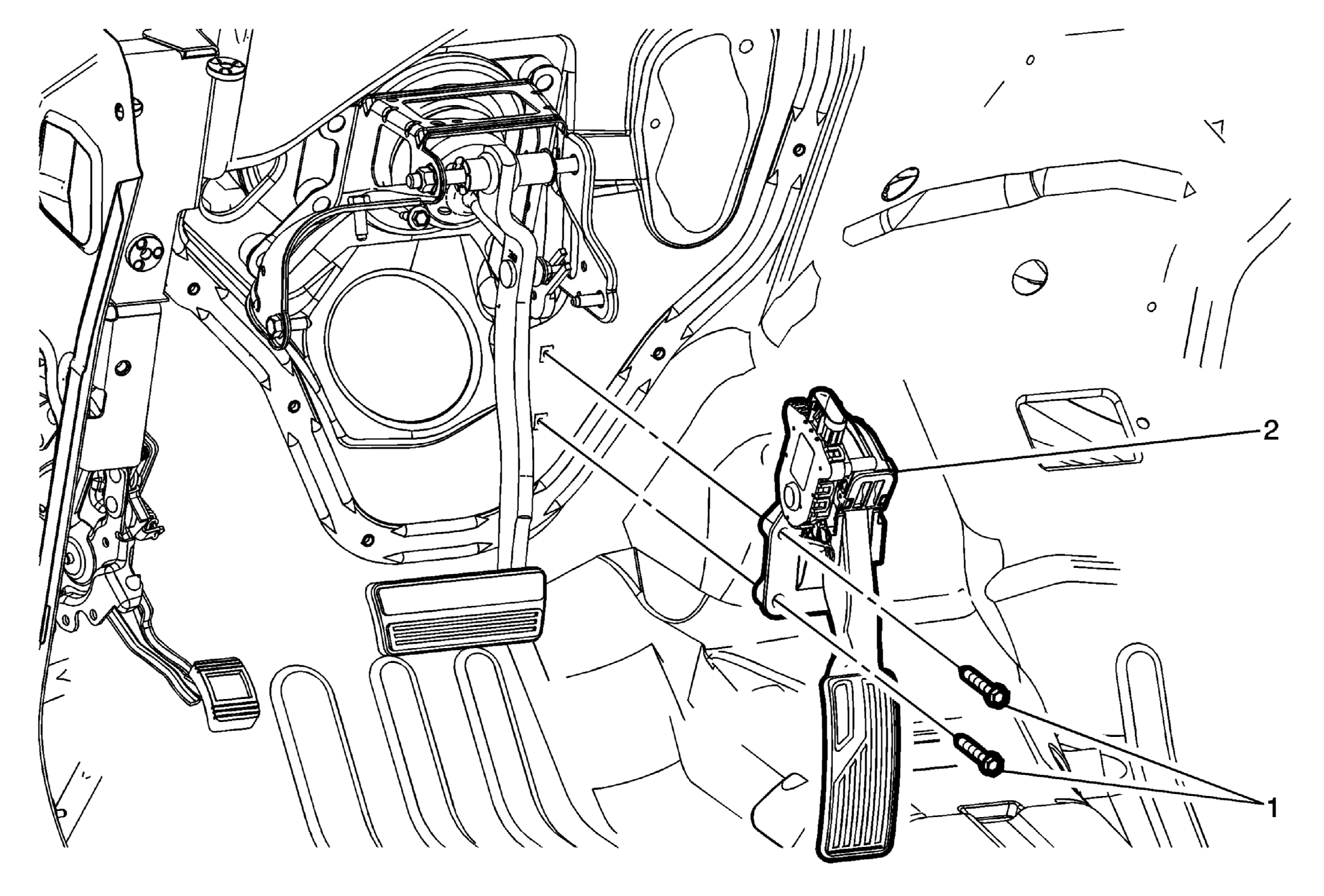

Fig 1: Accelerator Pedal Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the left instrument panel (I/P) sound insulator. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
Disconnect the accelerator pedal position sensor electrical connector.

Accelerator Pedal Position Sensor Bolts (Qty: 2)

CAUTION:

Refer to Fastener Caution

Tighten
9 N.m(80 lb in)

Accelerator Pedal Position Sensor
