Front Caster and Camber Adjustment

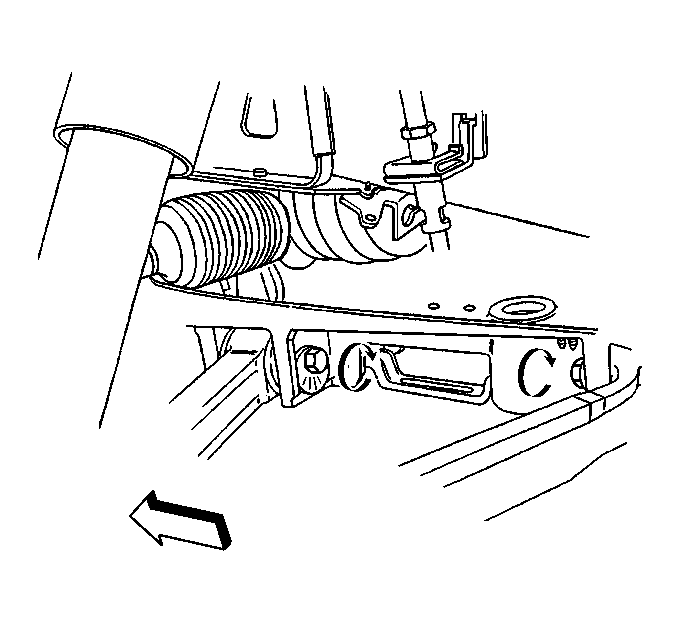

- Loosen the lower control arm cam bolt nuts.
- Rotate the cam bolts to the required caster or camber specification setting. Refer to Wheel Alignment Specifications .
- Maintain the caster or camber setting while tightening the cam bolt nuts. Tighten the front lower control arm cam bolt nuts to 170 N.m (125 lb ft).
- Check the caster and camber settings after tightening.
- Adjust the caster and camber setting if necessary.
Refer to Fastener Caution .
Check the toe setting AFTER changing camber or caster.
