2013 Chevrolet Corvette Base, 2D Convertible, Standard Trans, Trans Mfr CD 6L85M/MM6FACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the accessory drive belt. Refer to Drive Belt Replacement - Accessory (LS9) , Drive Belt Replacement - Accessory (w/o LS9) .
- Remove the brake pressure modulator valve (BPMV). Refer to Brake Pressure Modulator Valve Replacement .
- Remove the BPMV bracket. Refer to Brake Pressure Modulator Valve Bracket Replacement .

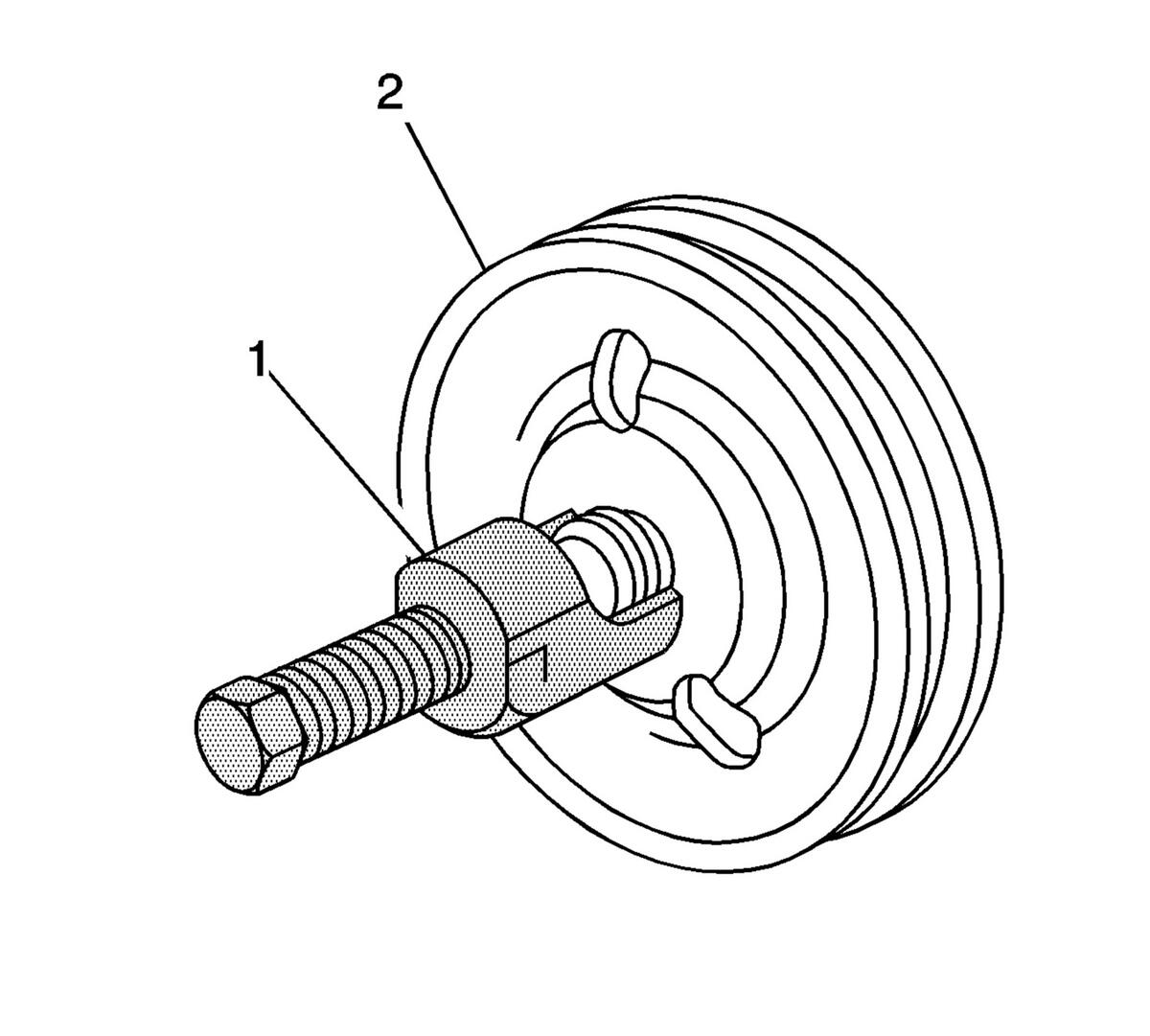

- Use the J 25034-C remover (1) to remove the power steering pump pulley (2).
