2013 Chevrolet Corvette Base, 2D Convertible, Standard Trans, Trans Mfr CD 6L85M/MM6FACTORY OEM SERVICE PROCEDURE

Fuse Block - Underhood X2 Connector End View

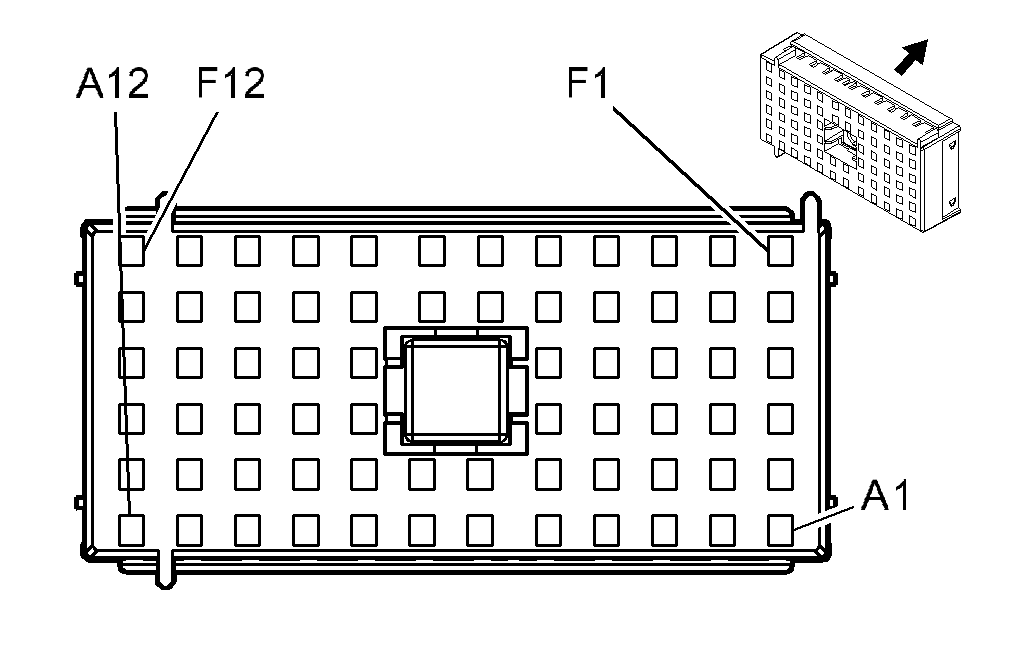

Fig 1: Fuse Block - Underhood X2 Connector End View
GM684889Courtesy of GENERAL MOTORS COMPANY
Fuse Block - Underhood X2 Connector End View

Pin Wire Circuit Function
A1 - - Not Used
A2 0.5 RD/WH 2540 Battery Positive Voltage (LS3 or LS7)
A3-A4 - - Not Used
A5 0.35 D-GN/WH 459 A/C Compressor Clutch Relay Control
A6 2 GY 120 Fuel Pump Supply Voltage (LS3 or LS7))
A7-A10 - - Not Used
A11 0.5 PK 1439 Ignition 1 Voltage
A12 - - Not Used
B1 - - Not Used
B2 0.35 D-GN/WH 817 Vehicle Speed Signal
B3 - - Not Used
B4 0.5 PK 439 Ignition 1 Voltage
B5 0.5 D-GN 59 A/C Compressor Clutch Supply Voltage
B6 0.35 D-GN/WH 465 Fuel Pump Relay Control (LS3 or LS7)
B7-B8 - - Not Used
B9 0.8 PK 139 Ignition 1 Voltage (LS3 or LS7)
B10-B12 - - Not Used
C1-C5 - - Not Used
C6-C7 - - Not Available
C8 0.5 PK 539 Ignition 1 Voltage
0.5 PK 539 Ignition 1 Voltage (LS3 or LS7)
C9 - - Not Used
C10 0.8 PK 139 Ignition 1 Voltage (LS3 or LS7)
0.8 PK 139 Ignition 1 Voltage (LS3 or LS7)
C11-C12 - - Not Used
D1-D4 - - Not Used
D5 1 RD/WH 2840 Battery Positive Voltage
D6-D7 - - Not Available
D8 0.8 PK 39 Ignition 1 Voltage (LS3 or LS7)
D9 - - Not Used
D10 0.5 PK 339 Ignition 1 Voltage
0.5 PK 339 Ignition 1 Voltage
D11 2.0 RD/WH 1840 Battery Positive Voltage
D12 - - Not Used
E1 0.5 BK 1250 Ground
E2 - - Not Used
E3 0.5 PK 1239 Ignition Voltage
E4 0.5 RD/WH 2440 Battery Positive Voltage (MYC)
0.8 RD/WH 2440 Battery Positive Voltage
E5 0.35 WH/BK 448 Powertrain Diagnostic Enable
E6 0.8 PK 39 Ignition 1 Voltage (LS3 or LS7)
0.8 PK 39 Ignition 1 Voltage (LS3 or LS7)
E7 0.8 PK 39 Ignition 1 Voltage (LS3 or LS7)
0.8 PK 39 Ignition 1 Voltage (LS3 or LS7)
3.0 PK 39 Ignition 1 Voltage (LS9)
E8 - - Not Used
E9 0.5 PK 239 Ignition 1 Voltage (MN6)
E10 0.5 PK 339 Ignition 1 Voltage
0.5 PK 339 Ignition 1 Voltage
E11 0.5 PK 1239 Ignition 1 Voltage
0.5 PK 1239 Ignition 1 Voltage (LS7)
E12 0.35 PU/WH 6386 Starter Enable Relay Control
F1 0.35 BN/WH 419 Check Engine Indicator Control
F2 - - Not Used
F3 0.35 YE 43 Accessory Voltage
0.35 YE 43 Accessory Voltage (MYC)
F4 0.35 WH 17 Stop Lamp Switch Signal
0.35 WH 17 Stop Lamp Switch Signal (MYC)
F5 - - Not Used
F6 0.35 WH 121 Engine Speed Signal
F7-F8 - - Not Used
F9 0.8 PK 139 Ignition 1 Voltage (LS3 or LS7)
0.8 PK 139 Ignition 1 Voltage (LS3 or LS7)
3.0 PK 139 Ignition 1 Voltage (LS9)
F10 - - Not Used
F11 0.5 PK 1339 Ignition 1 Voltage (MYC)
F12 3 PU 6 Starter Solenoid Crank Voltage
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 15319895
  • Service Connector: 15319895
  • Description: 68-Way F Metri-Pack 280 Series, Flexlock (GY)
Terminal Part Information
  • Pins: A5, B2, B6, E5, E12, F1, F3(MN6), F4(MN6), F6
  • Terminated Lead: 13575719
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-4A (PU)
  • Terminal/Tray: 12110844/4
  • Core/Insulation Crimp: E/4
  • Pins: A2, A11, B4, B5, E1, E3, E4(MN6), E5, E9(MN6), E11, F11(MYC)
  • Terminated Lead: 13575721
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-4A (PU)
  • Terminal/Tray: 12110844/4
  • Core/Insulation Crimp: E/A
  • Pin: A6, C10(LS3 or LS7), E4(MYC), E6(LS3 or LS7), E7(LS3 or LS7), E7(LS9), F9(LS3 or LS7), F9 (LS9)
  • Terminated Lead: 13579923
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-4A (PU)
  • Terminal/Tray: 12110842/4
  • Core/Insulation Crimp: Pin: A6: A/B
  • Core/Insulation Crimp: Pins: C10(LS3 or LS7), E4(MYC), E6(LS3 or LS7), E7(LS3 or LS7), F9(LS3 or LS7): C/A
  • Core/Insulation Crimp: Pin: E7(LS9), F9 (LS9): F/G
  • Pins: C8, D10, E10, E11(LS7) , F3(MYC), F4(MYC)
  • Terminated Lead: 13575721
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-4A (PU)
  • Terminal/Tray: 12110844/4
  • Core/Insulation Crimp: C/A
