Ignition Coil Replacement

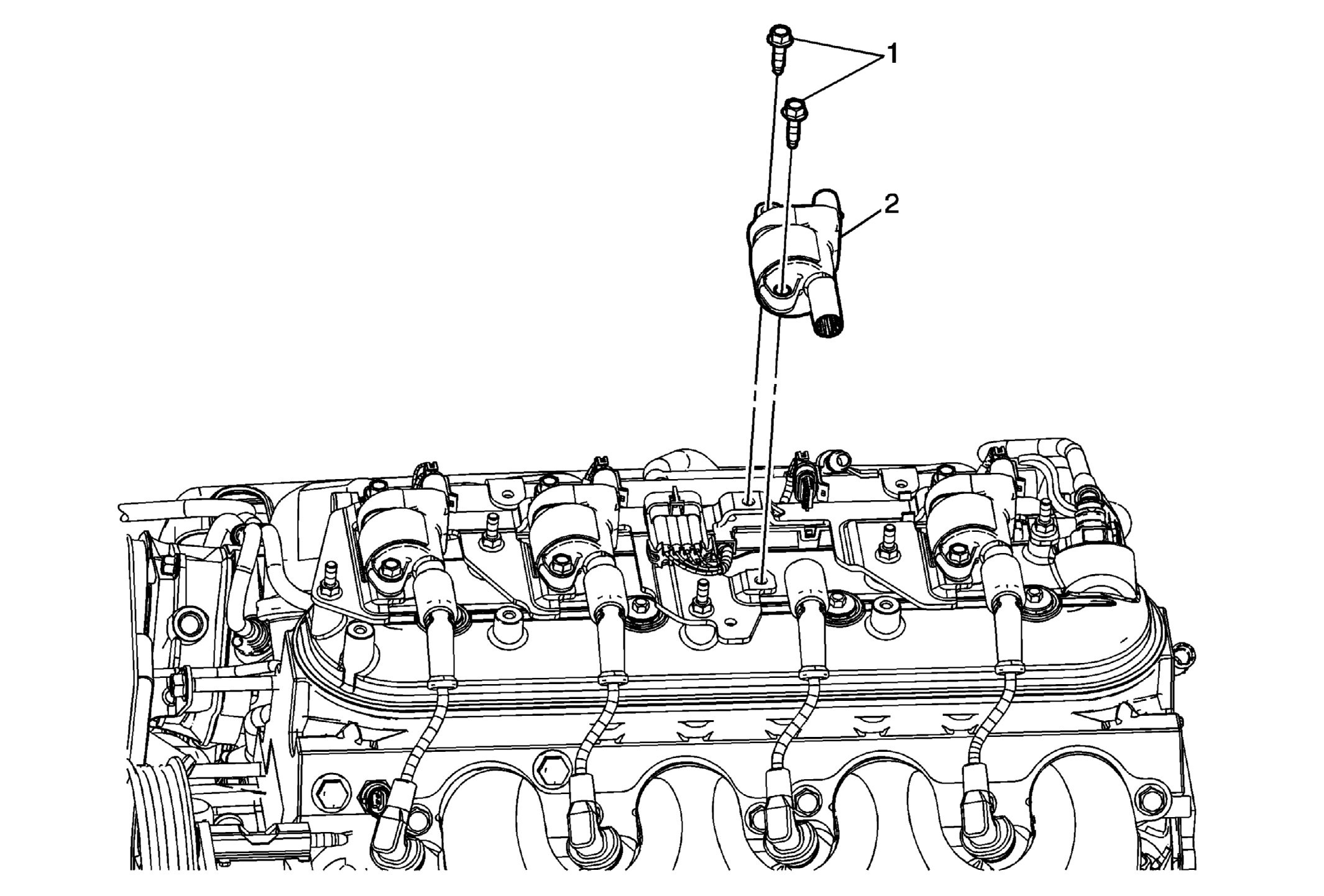

| Callout | Component Name |
|---|---|
|
Preliminary Procedures
|
|
| 1 | Ignition Coil Bolt
CAUTION:
Refer to Fastener Caution . Tighten 12 N.m (106 lb in) |
| 2 | Ignition Coil Procedure
|
