2013 Chevrolet Corvette Base, 2D Convertible, Standard Trans, Trans Mfr CD 6L85M/MM6FACTORY OEM SERVICE PROCEDURE
Driver Information Display Switch Replacement
Driver Information Display Switch Replacement

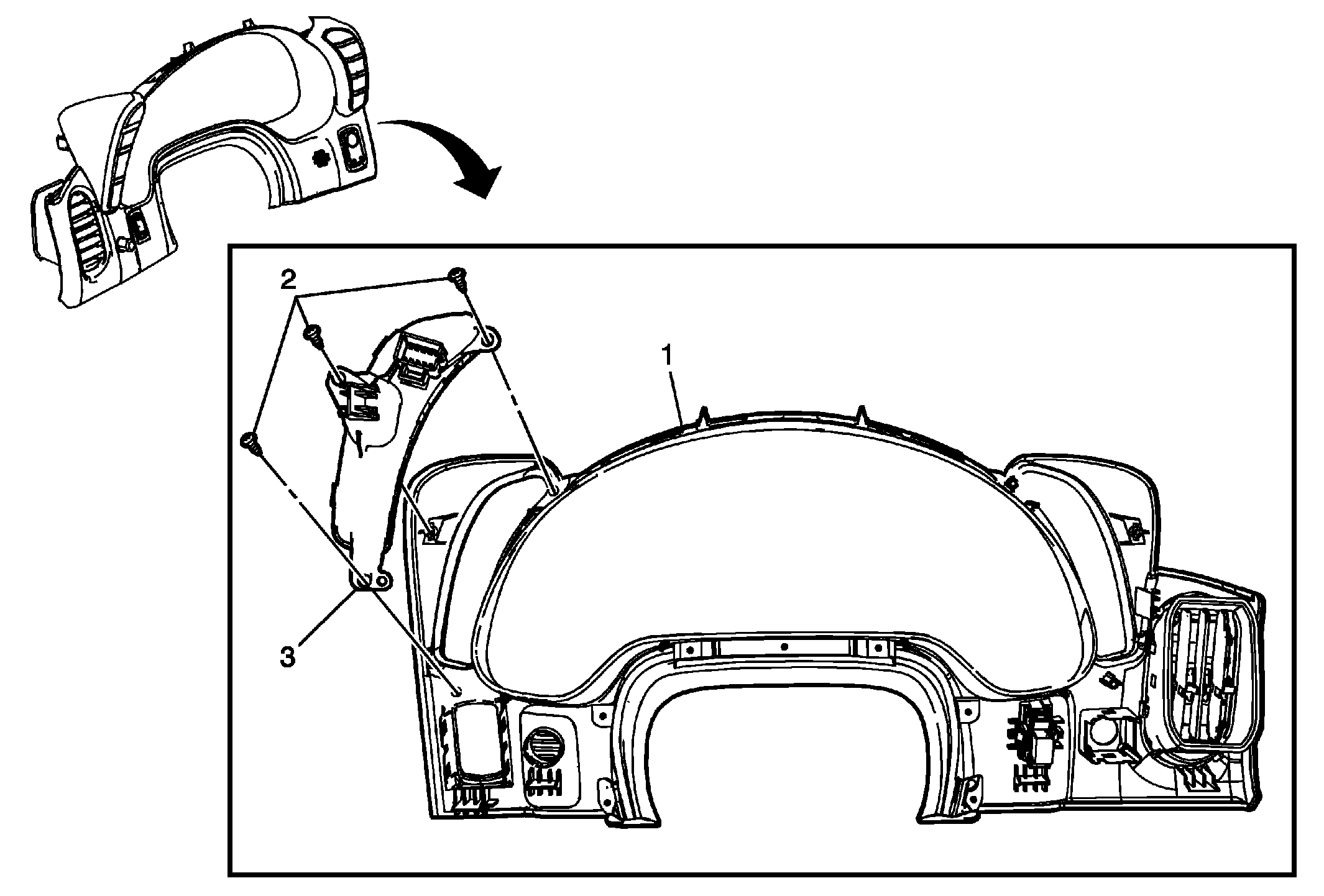

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Cluster Trim Plate Refer to Instrument Cluster Trim Panel Replacement . |
| 2 | Driver Information Center Switch Screw (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 3 | Driver Information Center Switch |
