Removal Procedure
To prevent equipment damage, never connect or disconnect the wiring harness connection from the EBCM with the ignition switch in the ON position.
- Turn the ignition switch to the OFF position.
- Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (LS7 or LS9) , Battery Negative Cable Disconnection and Connection (LS3) .
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
- Clean the area surrounding the electronic brake control module (EBCM) and the brake pressure modulator valve (BPMV) of and dirt and debris.
- Disconnect the EBCM electrical connector.

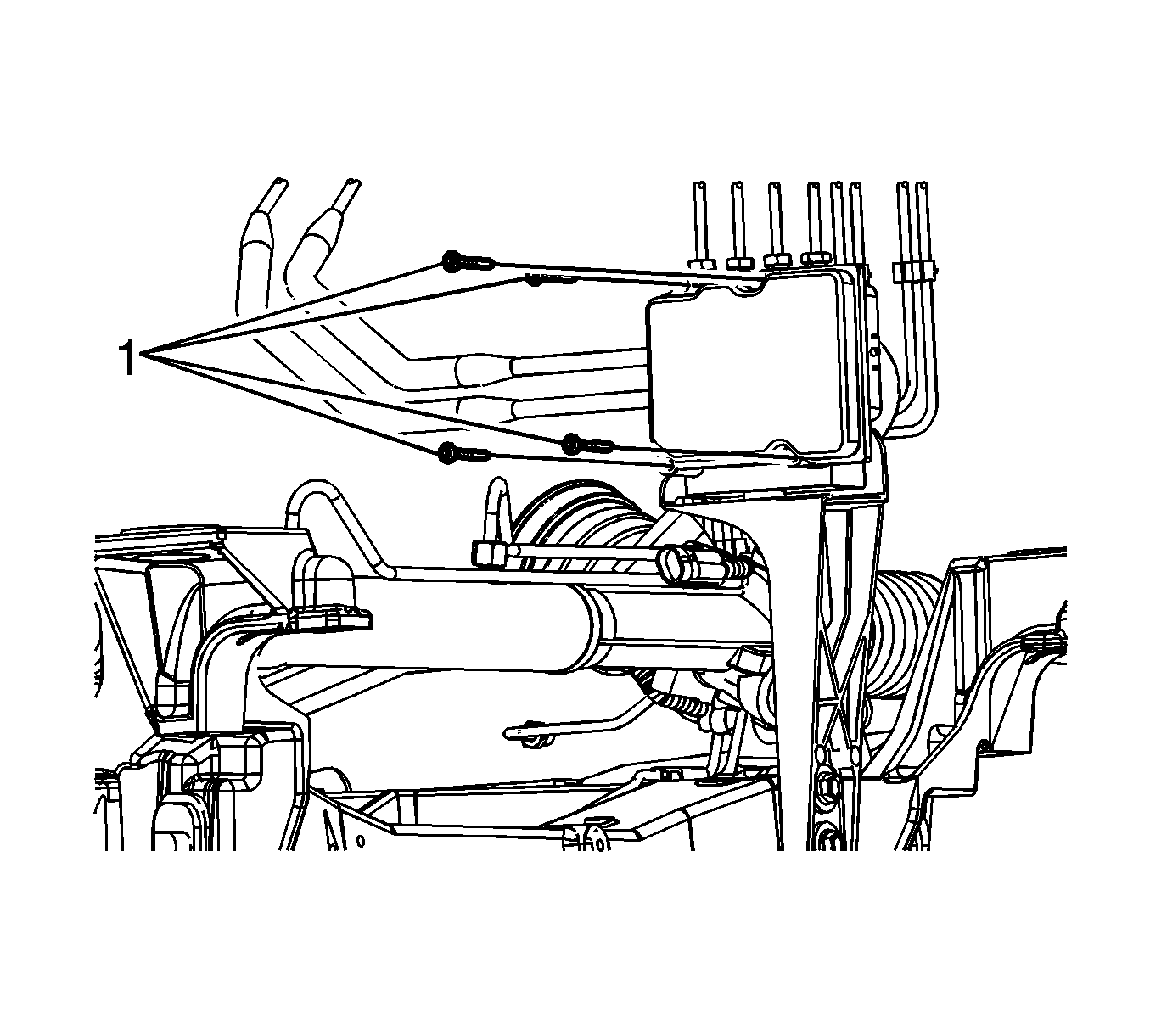

- Remove the EBCM bolts (1).
Do not attempt to pry or lever the EBCM from the BPMV.
