Removal Procedure
- Open the hood.
- Lower the door windows.
- Remove the windshield wiper arms. Refer to Windshield Wiper Arm Replacement .
- Perform the appropriate step:
- For the coupe, remove the roof lift-off panel.
- For the convertible, lower the folding top.

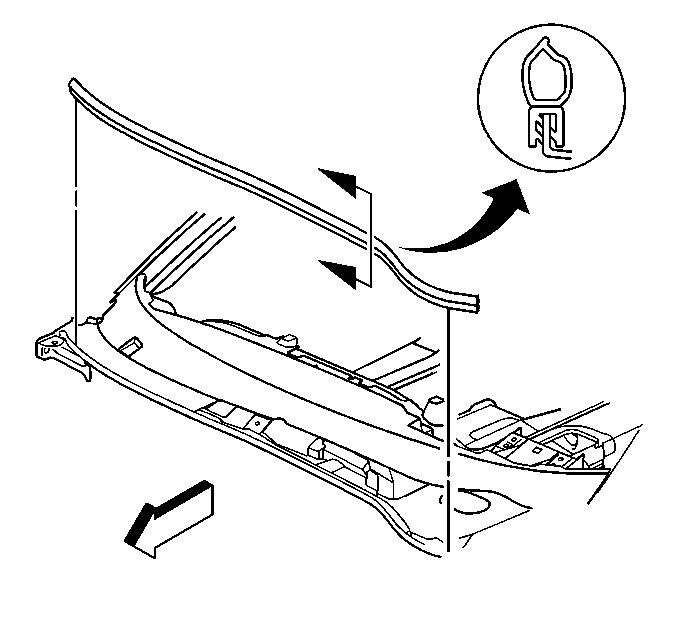

- Remove the hood air inlet screen seal. Refer to Air Inlet Grille Panel Replacement .

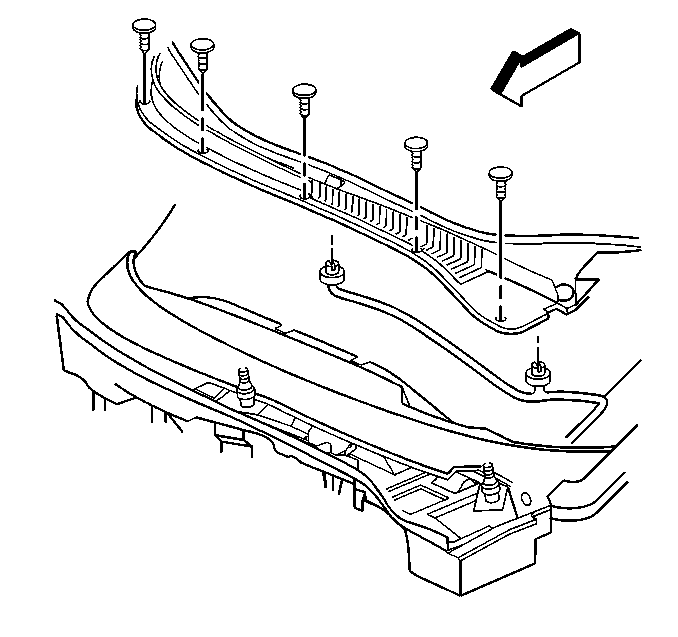

- Remove the air inlet screen panel. Refer to Air Inlet Grille Panel Replacement .

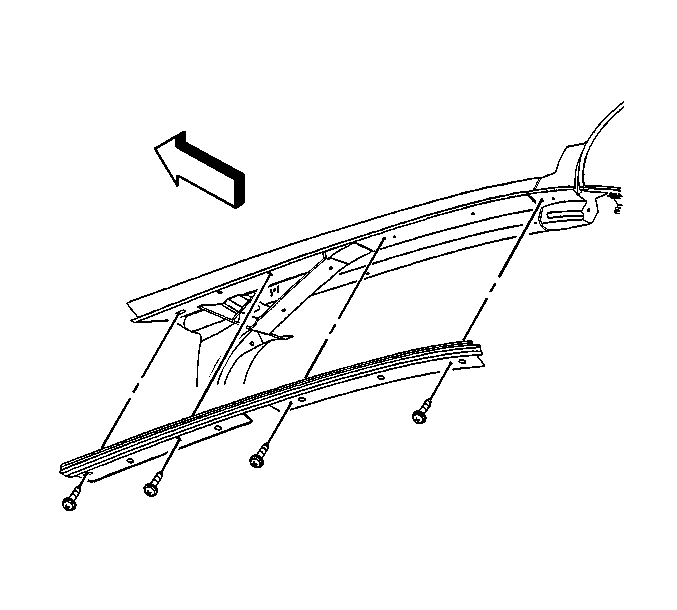

- Remove the lower windshield supports from the cowl panel, if equipped.

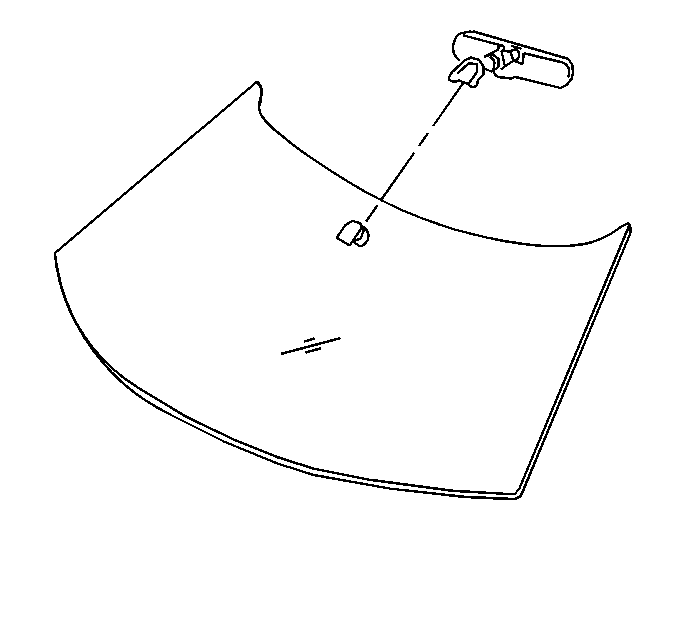

- Remove the rearview mirror. Refer to Inside Rearview Mirror Replacement (DD8) , Inside Rearview Mirror Replacement (Except DD8) .
- Cover the following parts to protect from broken glass:
- The upper dash pad
- The defroster outlets and the A/C outlets
- The seats and the carpeting
- Remove the windshield weatherstrip. Refer to Windshield Frame Weatherstrip Replacement .
- Remove the windshield side reveal moldings. Refer to Windshield Side Reveal Molding Replacement (Coupe and Convertible) , Windshield Side Reveal Molding Replacement (Hardtop) .

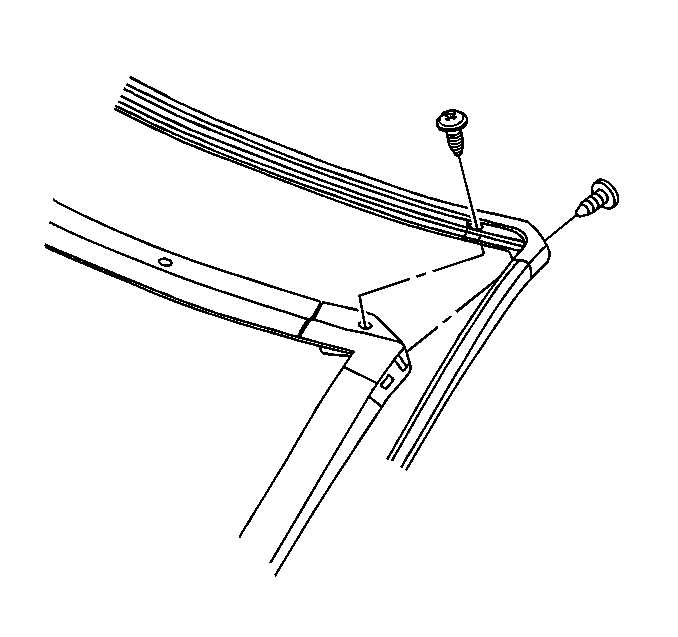

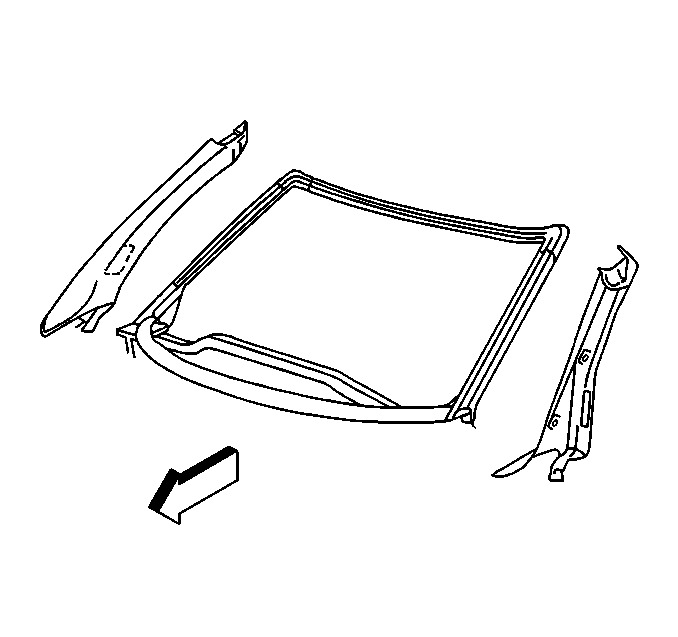

- Remove the windshield side garnish moldings and retainer clips from the windshield frame

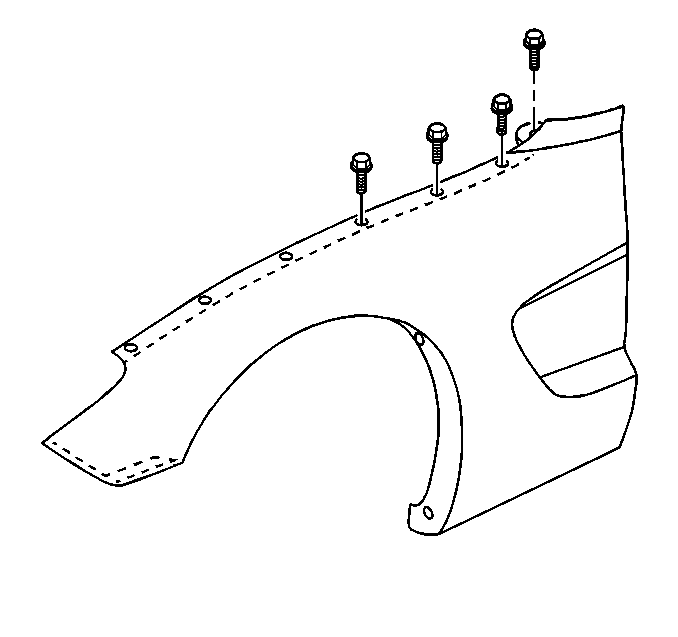

- Remove the 4 rearmost screws that attach the top of the fender to the wheelhouse.
Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and inner trim.
Refer to Defroster Outlet Warning .
When working with any type of glass or sheet metal with exposed or rough edges, wear approved safety glasses and gloves in order to reduce the chance of personal injury.
