2013 Chevrolet Corvette Base, 2D Convertible, Standard Trans, Trans Mfr CD 6L85M/MM6FACTORY OEM SERVICE PROCEDURE
Rear Compartment Lift Window Latch Replacement
Rear Compartment Lift Window Latch Replacement

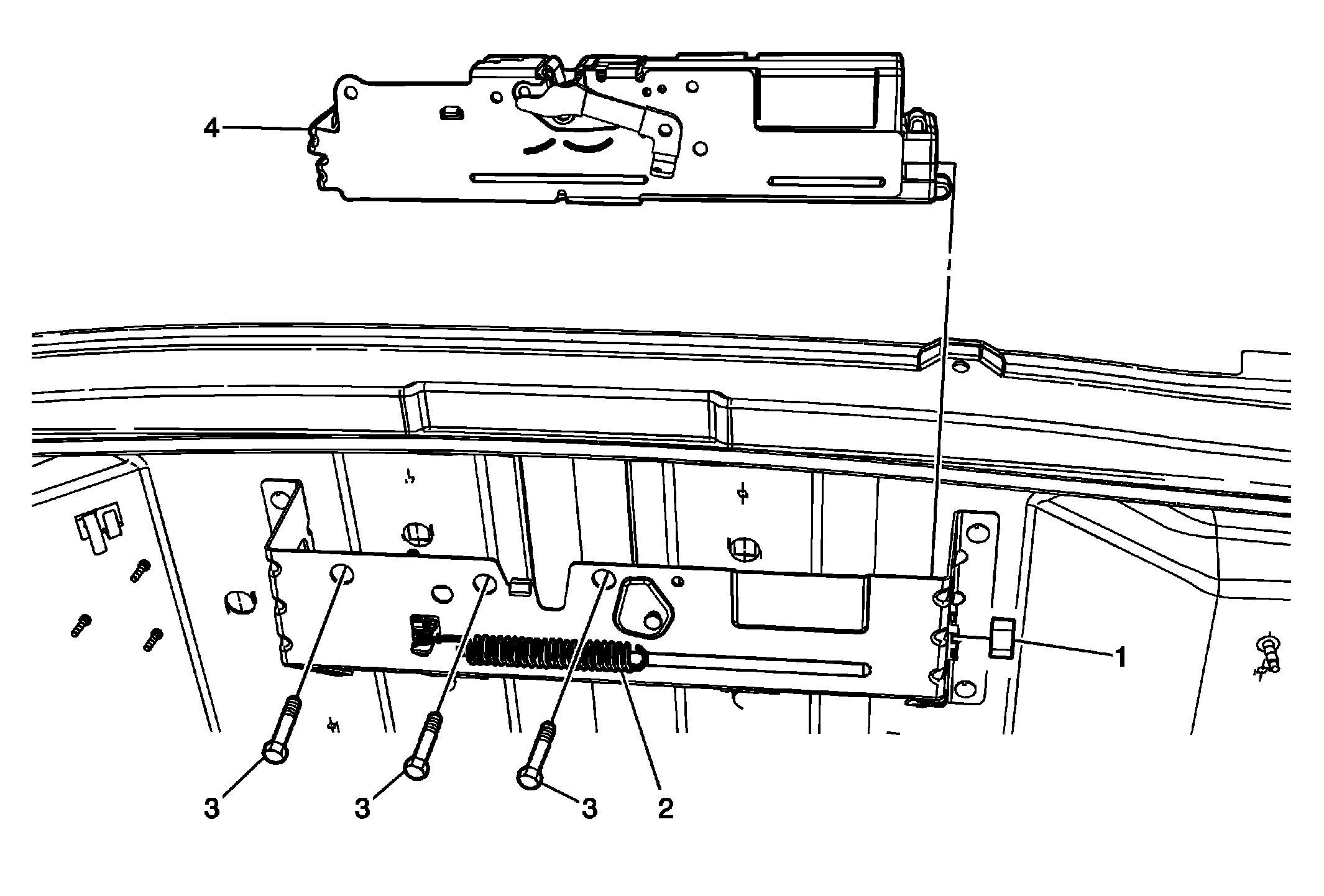

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear center carpet panel. Refer to Rear Compartment Rear Center Trim Panel Carpet Replacement . |
|
| 1 | Rear Compartment Lift Window Latch Electrical Connector TIP: Disconnect the electrical harness connector. |
| 2 | Rear Compartment Lift Window Latch Spring |
| 3 | Rear Compartment Lift Window Latch Screw (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 4 | Rear Compartment Lift Window Latch |
