2013 Chevrolet Corvette Base, 2D Convertible, Standard Trans, Trans Mfr CD 6L85M/MM6FACTORY OEM SERVICE PROCEDURE
Radio Antenna Module Replacement (Convertible)
Radio Antenna Module Replacement (Convertible)

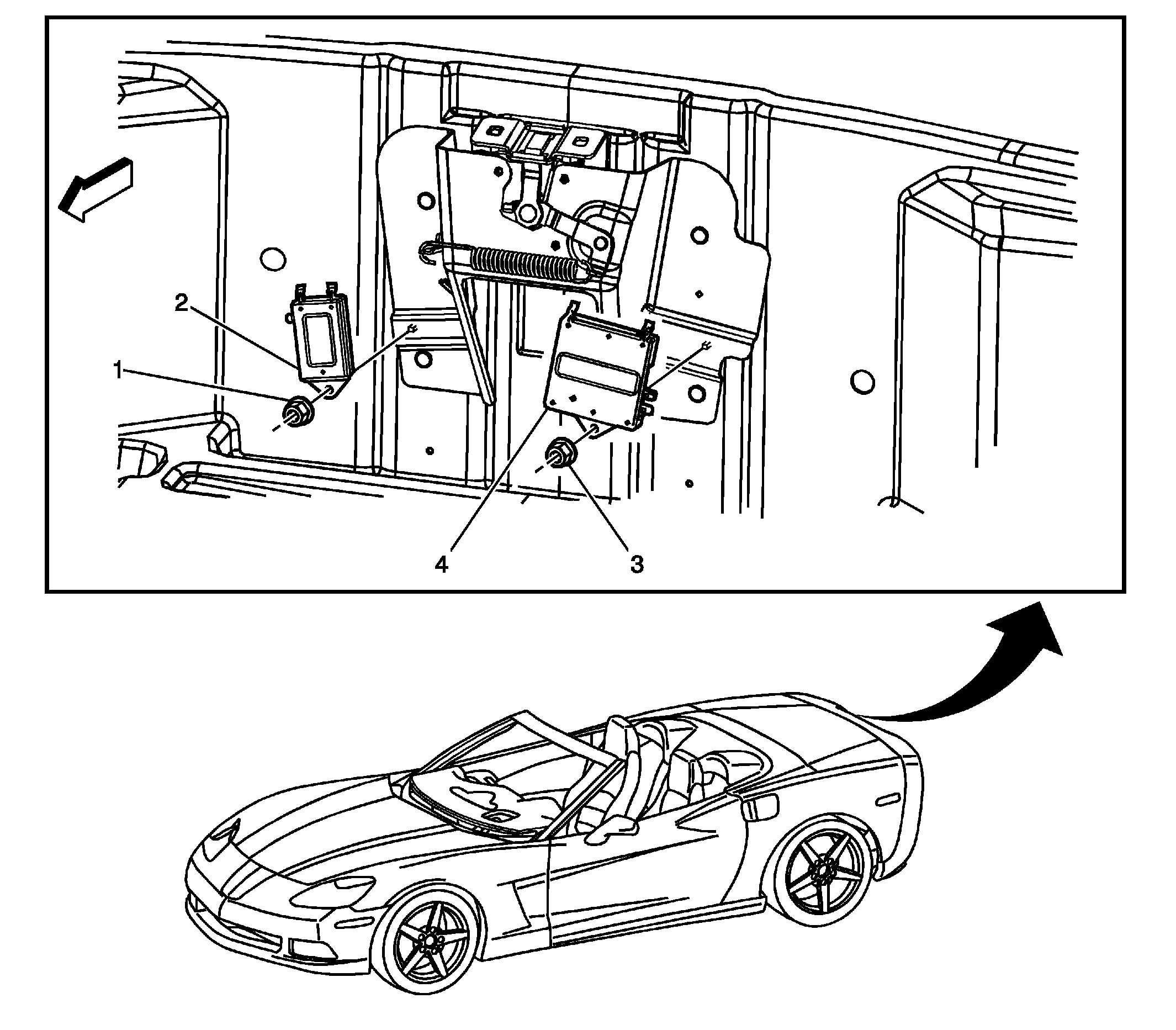

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear compartment center trim panel. Refer to Rear Compartment Rear Center Trim Panel Carpet Replacement . |
|
| 1 | Antenna Module Nut
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 2 | Antenna Module - Right |
| 3 | Antenna Module Nut Tighten 2 N.m (18 lb in) |
| 4 | Antenna Module - Left |
